Share your lighting setup!

nerwin

Active member

Equipment
L2501
Nov 13, 2024
96
153
33
Vermont
I will definitely be interested in wiring up additional lighting. I've done a lot of professional wiring for lights on trucks and side by sides. But never a tractor before so I'm looking for ideas! I seen a few use light bars, some use pods on the ROPS. For me personally, I'd love to wiring up lights that would light up the loader more and see the around it better.

What kind of lighting set up do you have on your machine?


85Hokie

Moderator
Staff member
Lifetime Member

Equipment
BX-25D ,PTB. Under Armor, '90&'92-B7100HST's, '06 BX1850 FEL
Jul 13, 2013
10,754
2,563
113
Bedford - VA
Works well and lights up ..........everything!
2017-09-11 17.45.46.jpg
2017-09-11 17.45.55.jpg
2017-09-11 17.46.40.jpg
2017-09-16 12.30.43.jpg

  • Like
Reactions: 4 users

jyoutz

Well-known member

Equipment
MX6000 HST open station, FEL, 6’ cutter, forks, 8’ rear blade, 7’ cultivator
Jan 14, 2019
3,005
2,050
113
Edgewood, New Mexico

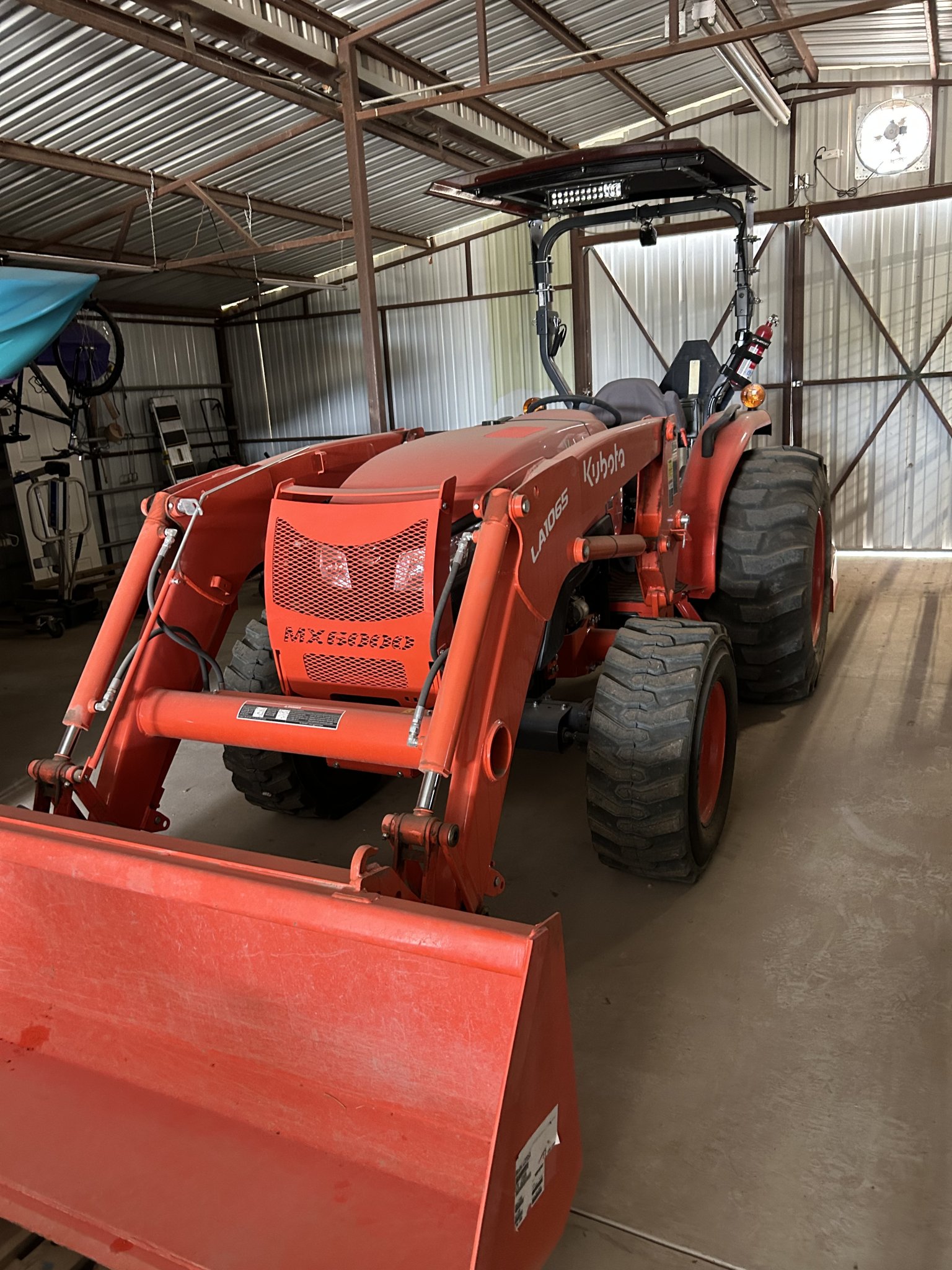

Lightbar facing forward, flood/spot combo facing rear. You’re going to want a canopy anyway.

  • Like
Reactions: 4 users

je1279

Well-known member
Lifetime Member

Equipment
LX2610 w/ 60" MMM, LP 72" Snow Plow, EA Wicked 55" Grapple, and Woods 60" BB
Dec 6, 2020
728
470
63
Upstate NY

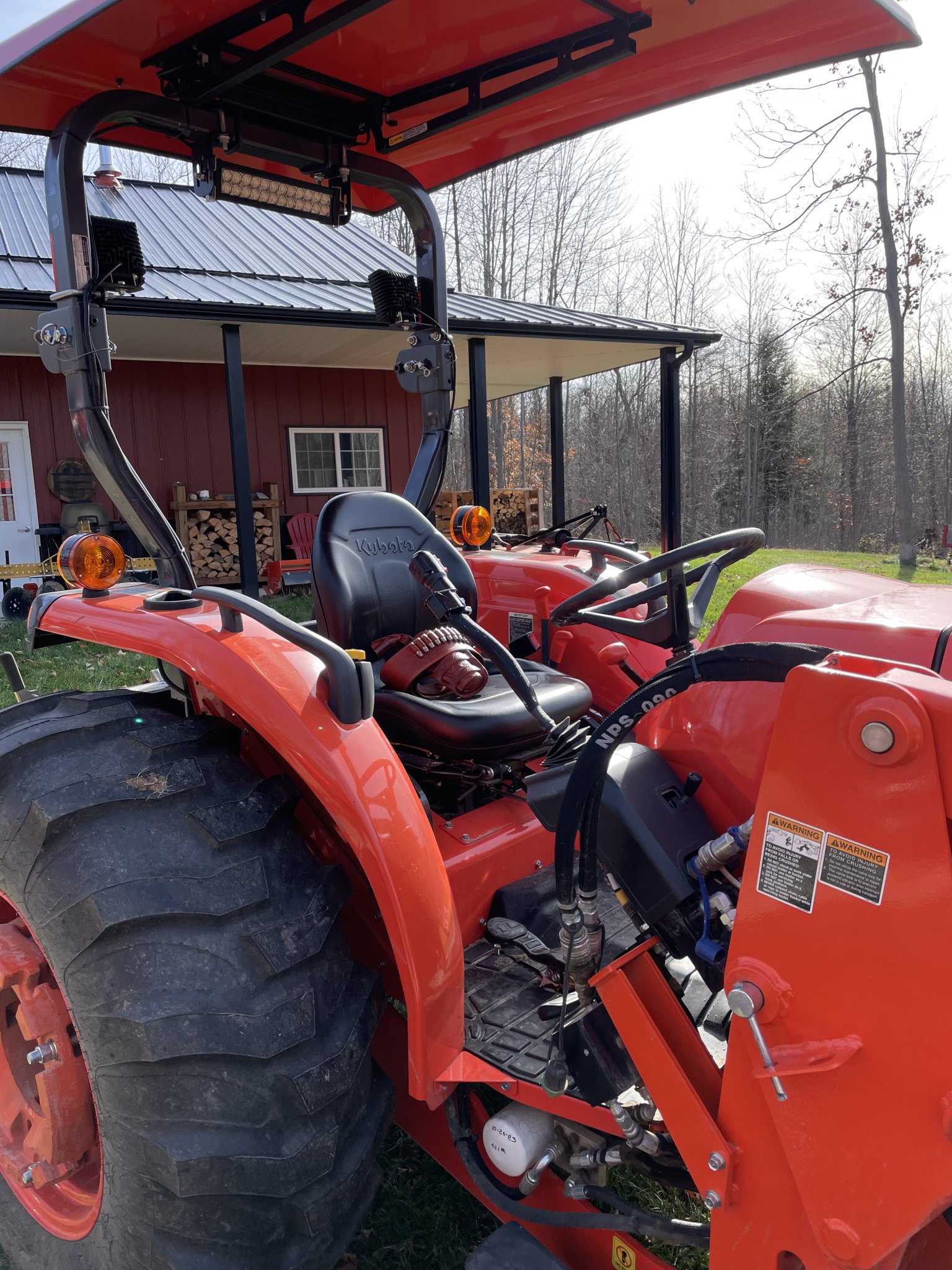

I have the bolt on hooks clamp mounts with forward and rearward facing led pods. Ran the wiring through the ROPS and out the existing holes in the sides.



Last edited:
  • Like
Reactions: 4 users

mcmxi

Well-known member
Lifetime Member

Equipment
***Current*** M6060HDC, MX6000HSTC & GL7000 ***Sold*** MX6000HST & BX25DLB
Feb 9, 2021
5,356
6,416
113
NW Montana
I just have the factory installed front and rear halogen work lights on both tractors which are decent but not LED great. Basically they're good enough that installing the LED lights that I bought for the tractors is not a priority. 😂


  • Like
Reactions: 3 users

rc51stierhoff

Well-known member

Equipment
B2650, MX6000, Ford 8N, (BX sold)
Sep 13, 2021
2,581
3,119
113
Ohio

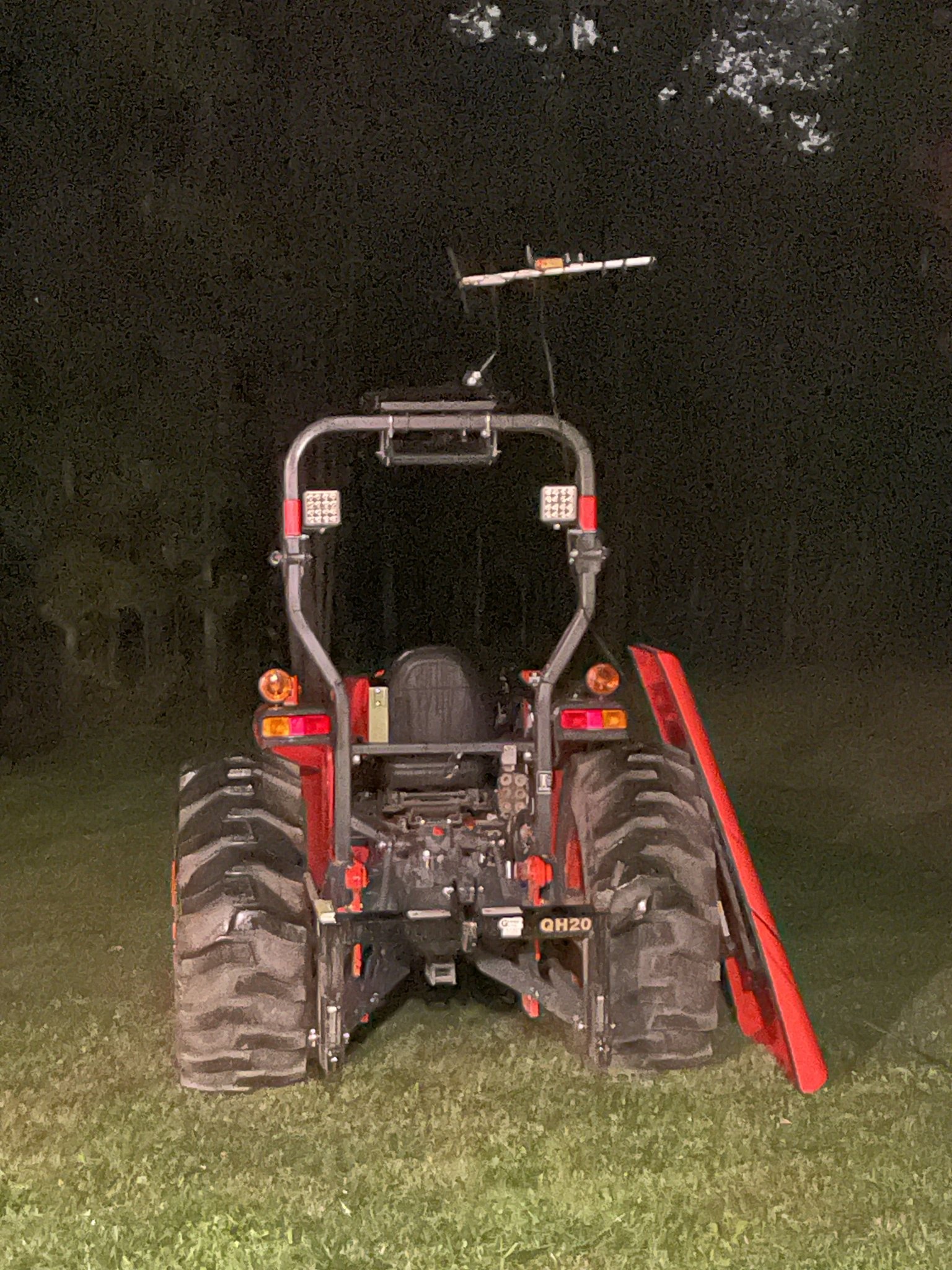

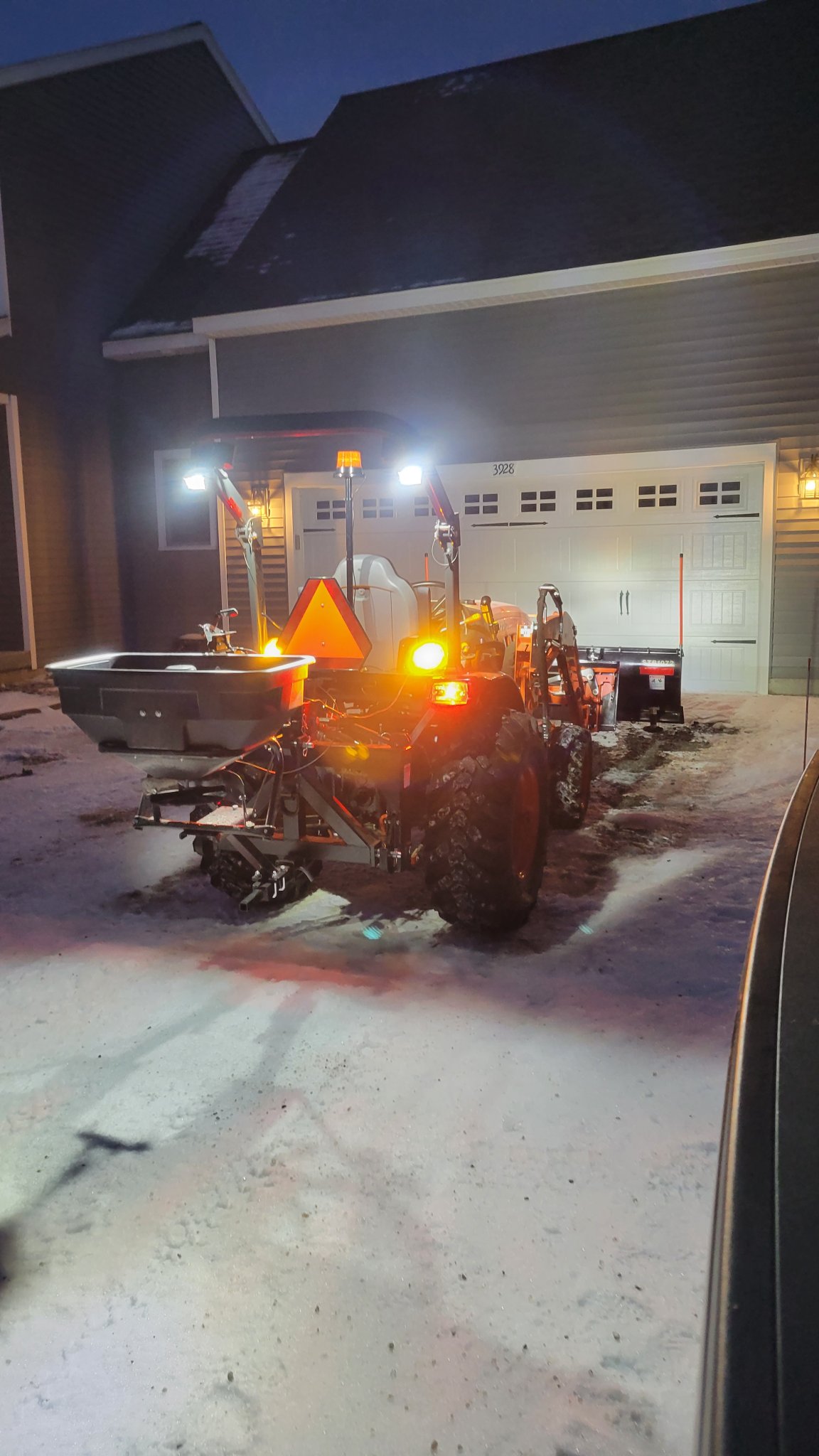

Take your pick…

The set up on the B is what Tractor Mike has for sale…it’s held on by magnet and plugs into the OEM 12v jack on the tractor. It’s easy on and easy off and extremely bright. I’ve mowed the front yard in the dark before. The B is so bright yours eyes have trouble to readjust when you look back to back up…I plan to put some rear facing lights on similar to the set up I have on the Mx. the lights on the MX are all hard wired in, but would not be easily removed.


Attachments

Last edited:
  • Like
Reactions: 2 users

Oleracer

Active member

Equipment
B2150 Kubota LA 350 750 Woods S250 Bobcat 300x deere
Jul 18, 2024
201
238
43
CT

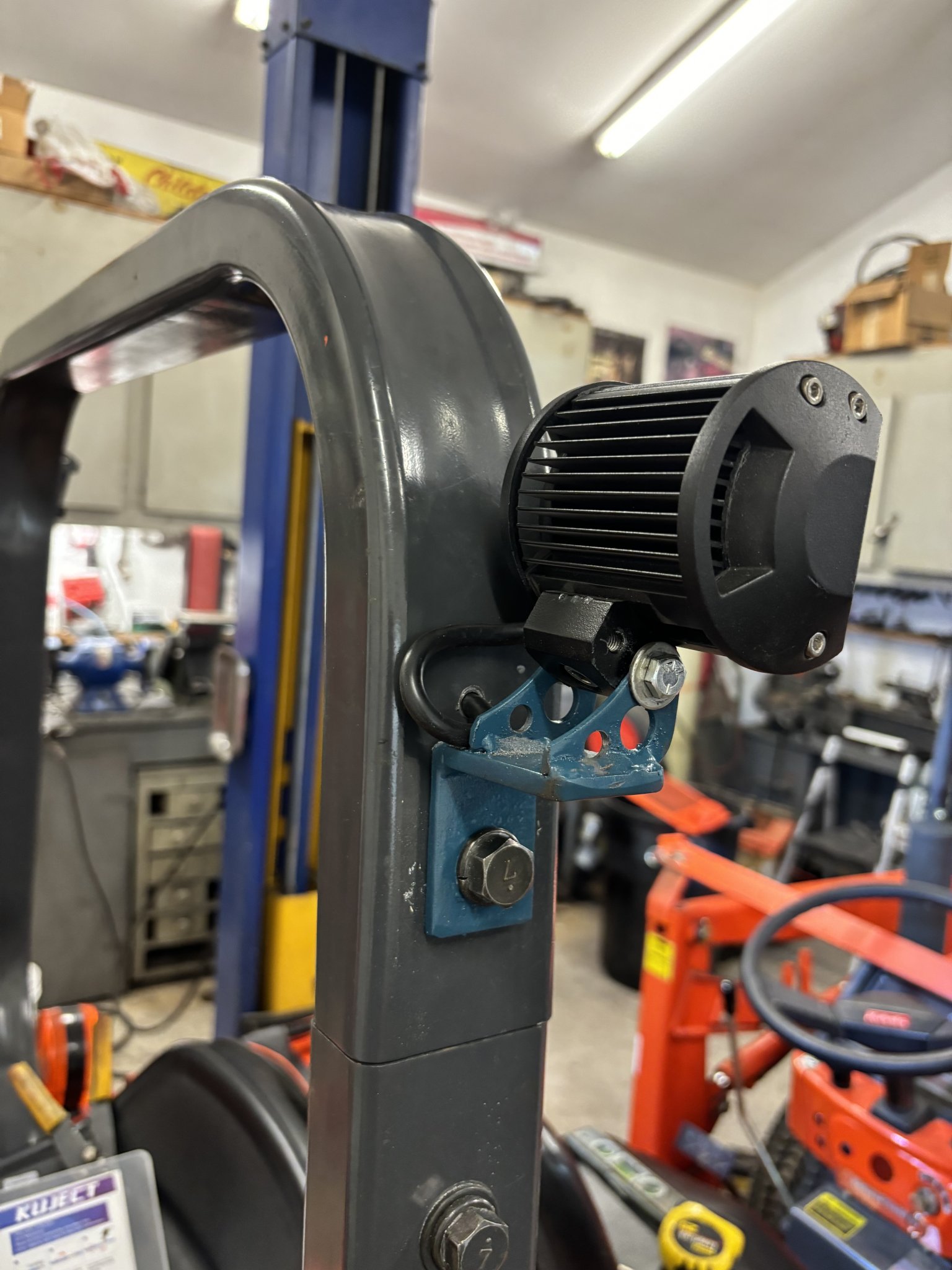

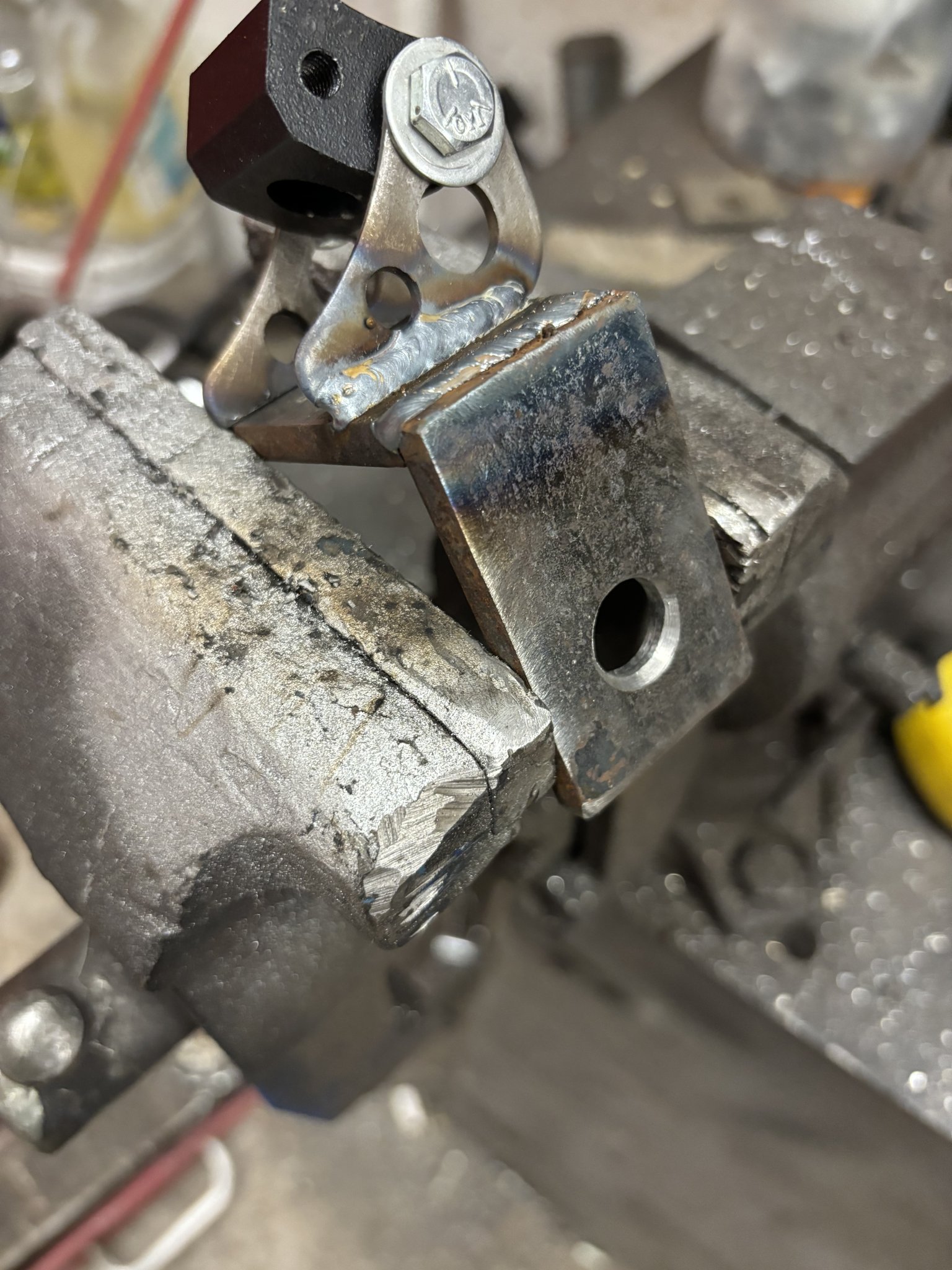

ROP POLICE have a fit putting wiring inside. 🤣. NASCAR has drilled my rollcages to check for correct .095. So pretty sure 1/8 hole i am good 😊
Cheap
Lights on Amazon cheap….use them on lots of plow trucks zero fails

  • Like
Reactions: 5 users

Bearcatrp

Well-known member

Equipment
BX1880 with loader, mower and 3 point
Mar 28, 2023
658
347
63
Minnesota
Light bar that plugs into a cigarette lighter (if you have one) is the fastest and easiest to do. Mine are on the ROPS and gives plenty of light. Wish I had 2 cigarette lighters so I could put one facing the rear.

  • Like
Reactions: 1 user

je1279

Well-known member
Lifetime Member

Equipment
LX2610 w/ 60" MMM, LP 72" Snow Plow, EA Wicked 55" Grapple, and Woods 60" BB
Dec 6, 2020
728
470
63
Upstate NY
Light bar that plugs into a cigarette lighter (if you have one) is the fastest and easiest to do. Mine are on the ROPS and gives plenty of light. Wish I had 2 cigarette lighters so I could put one facing the rear.
You can get a two-way splitter as long as you keep the total amperage draw below the circuit rating. Just don't go all Clark Griswold on it and you should be fine.


Last edited:
  • Like
  • Haha
  • Love
Reactions: 4 users

nerwin

Active member

Equipment
L2501
Nov 13, 2024
96
153
33
Vermont
Or like this:



Honestly, looks awesome. Sadly its an image I created using AI.

  • Haha
  • Like
Reactions: 4 users

WI_Hedgehog

Well-known member

Equipment
BX2370 (impliment details in Profile-About)
Apr 24, 2024
324
318
63
Milwaukee, Wisconsin, U.S.A.
Or like this:

View attachment 142563

Honestly, looks awesome. Sadly its an image I created using AI.
That's a nice Lamborghini interior, though I'm not sure if putting lights in the front visor area shining into the operator's eyes are a good thing but it does make the back of the cab look nice...however it seems AI isn't smart enough to put the beacons above the top of the work lite rack, which is a violation.... 🤣

  • Haha
Reactions: 1 user

chim

Well-known member

Equipment
L4240HSTC with FEL, Ford 1210
Jan 19, 2013
2,130
1,251
113
Near Lancaster, PA, USA
Some thoughts. Pics of current L44240. Video of the L3200's flashers. I don't have any videos of the flashers on the 4240. The "frantic flashers" are programmable to a bunch of different patterns:



Last edited:
  • Like
Reactions: 1 user

dirtydeed

Well-known member
Lifetime Member

Equipment
B2650 BH77, U27-4R2, BX23TLBM, box blade, rear blade, flail mower, Stump Grinder
Dec 8, 2017
3,029
3,696
113
Wind Gap, PA
Congrats on your new machine.

Here's a simple to do light installation that uses magnetic mounts. No issues with them holding the lights and you can still reposition them as needed. I ran the wire up inside the ROPS and came out the factory hole in the top.

No drilling either...

ROPS Lights 2.JPG

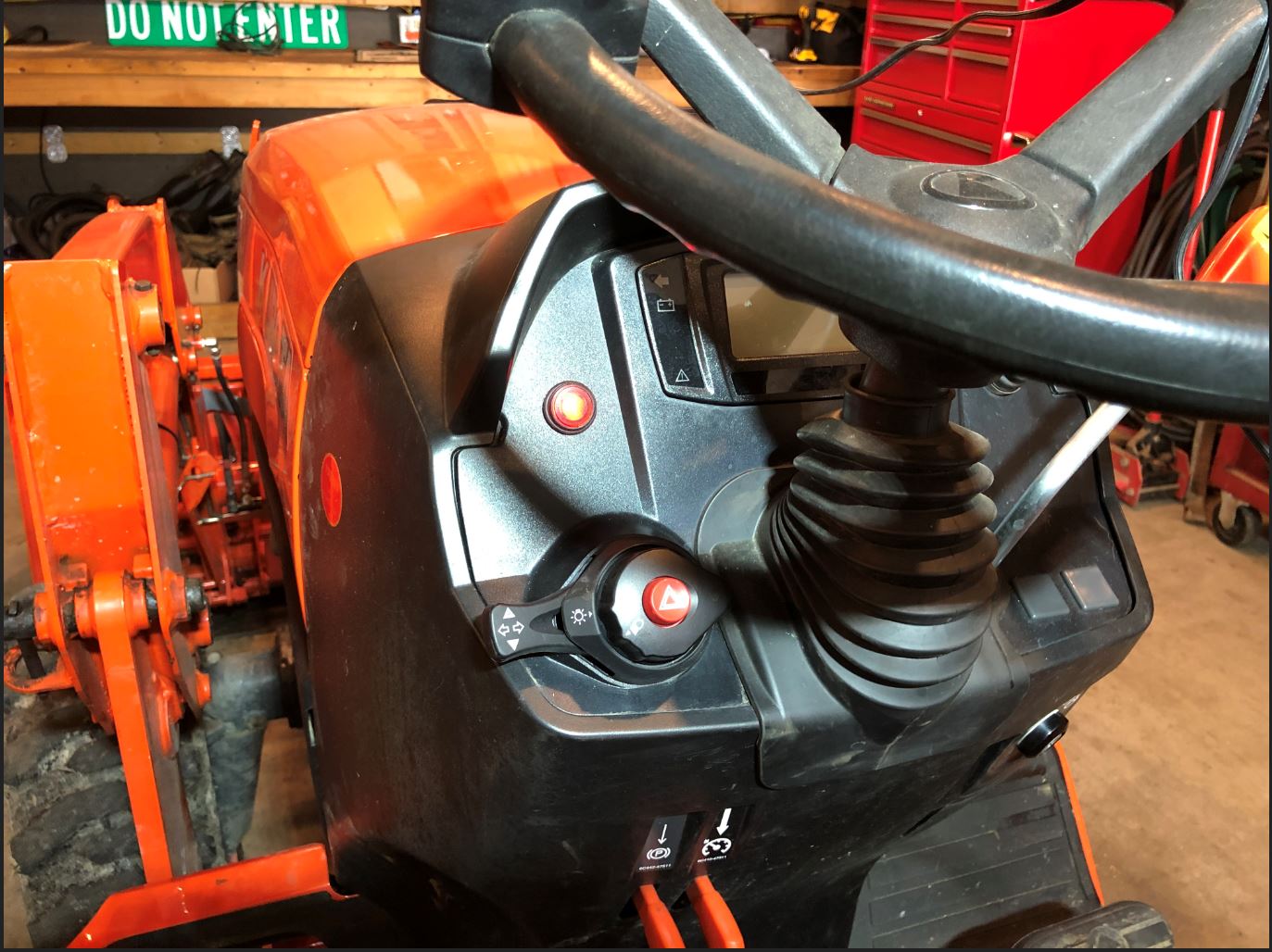

Illuminated switch:

ROPS Lights switch.JPG

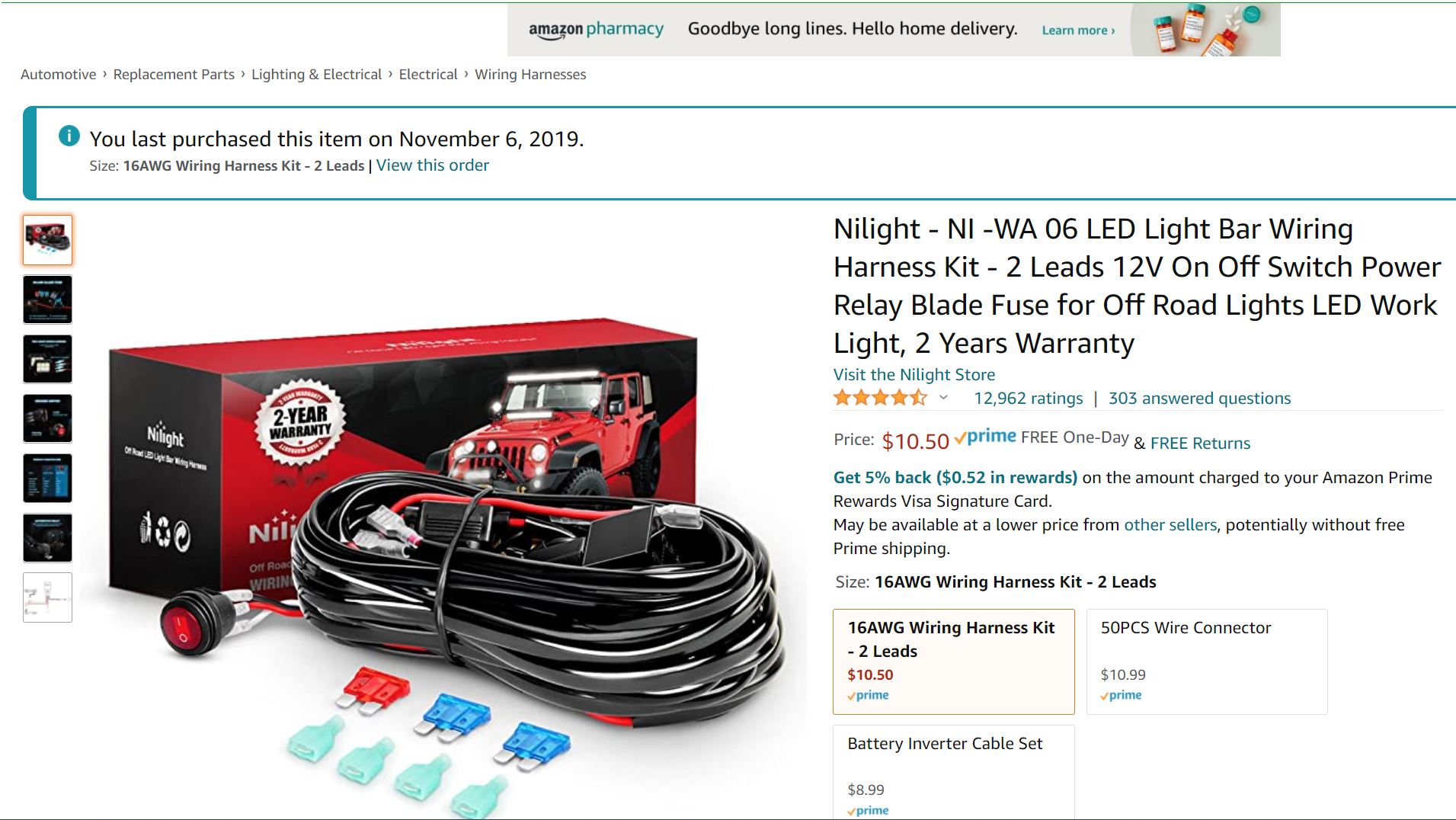

Wiring Kit

Nilight Wiring Kit.JPG

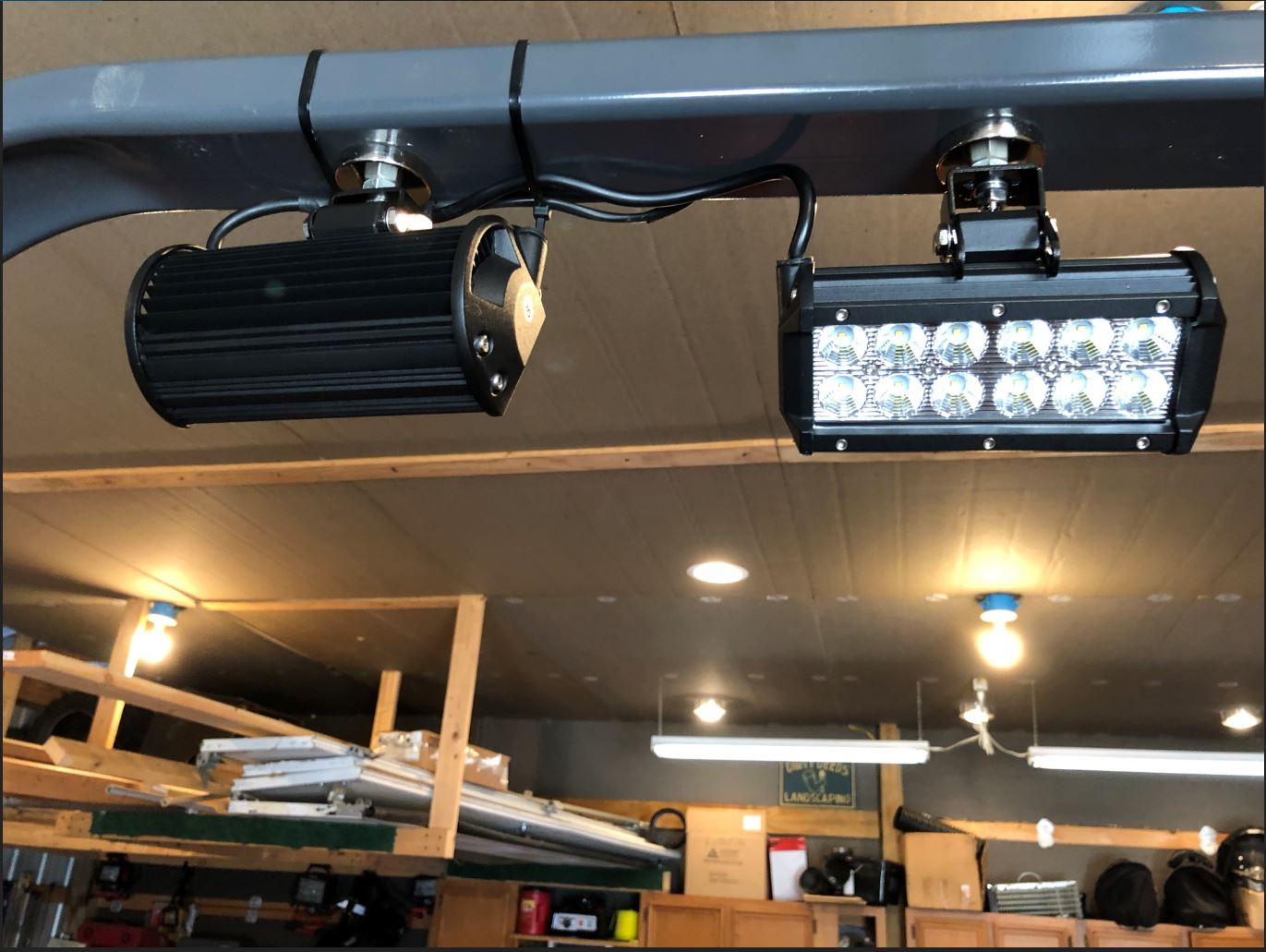

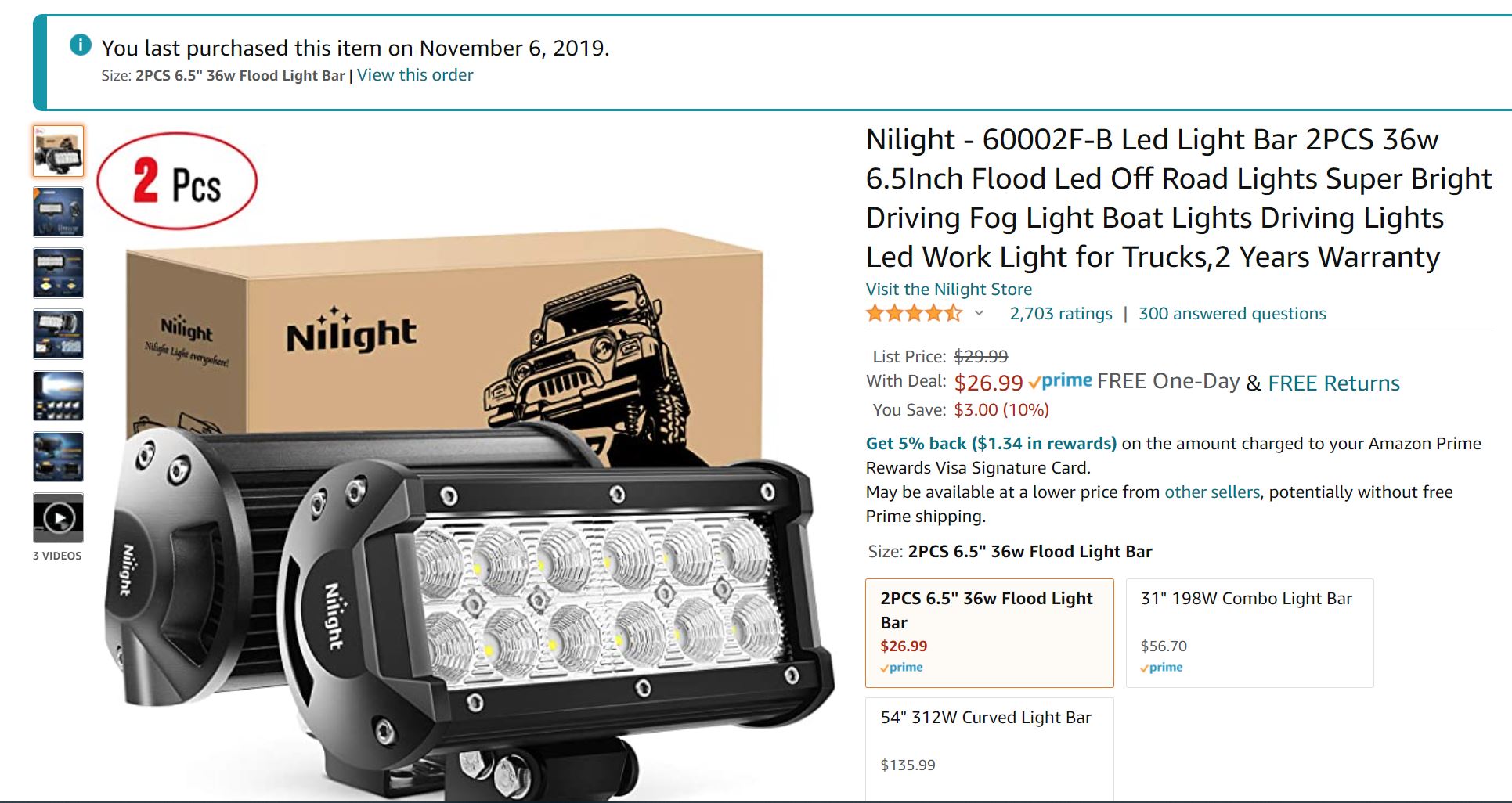

Lights:

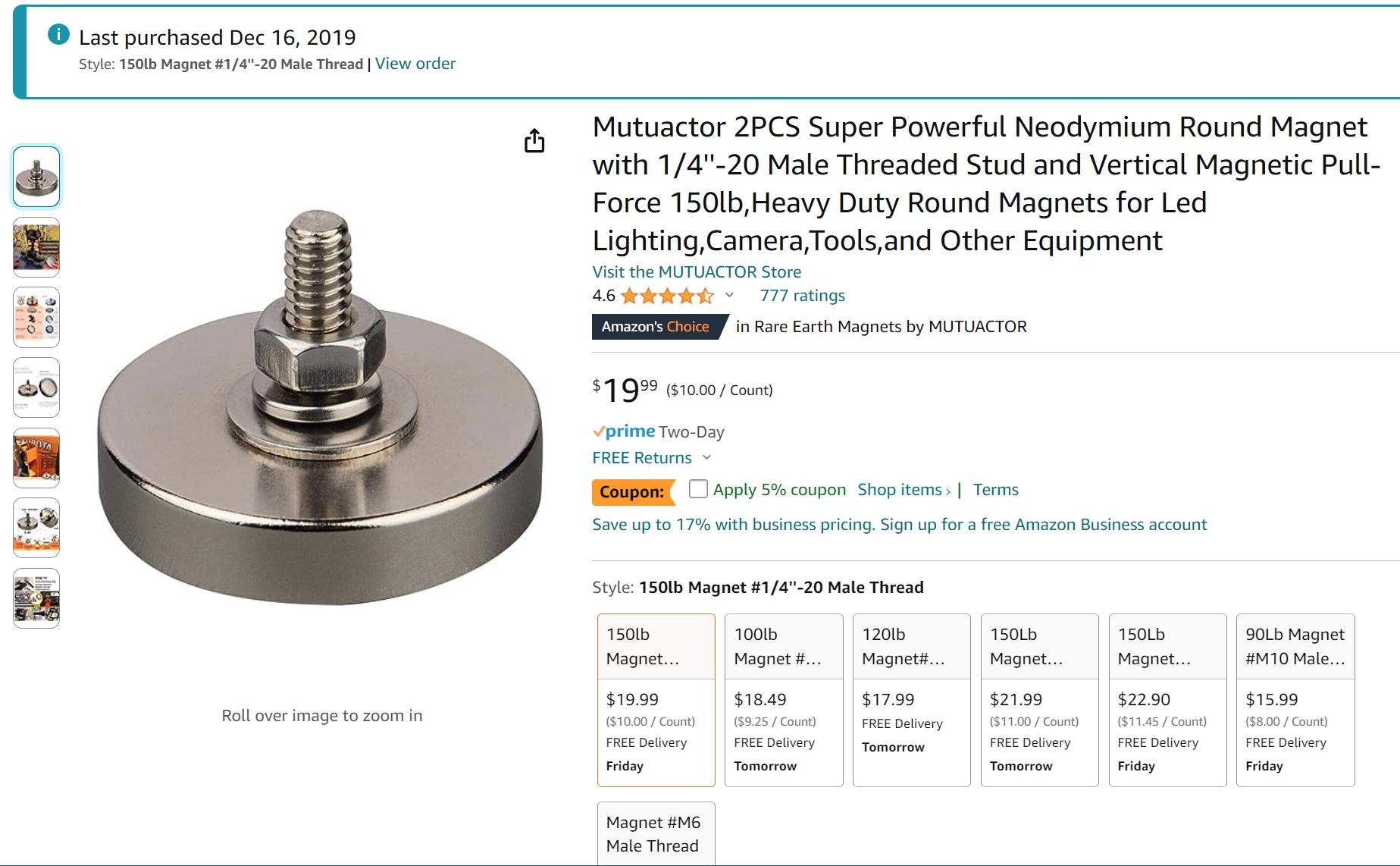

Magnetic mounts:

ROPS Light Magnets.JPG

  • Like
Reactions: 1 users

Bearcatrp

Well-known member

Equipment
BX1880 with loader, mower and 3 point
Mar 28, 2023
658
347
63
Minnesota
Where are you folks tapping in for power? I hate cutting into wires to power something else.


WI_Hedgehog

Well-known member

Equipment
BX2370 (impliment details in Profile-About)
Apr 24, 2024
324
318
63
Milwaukee, Wisconsin, U.S.A.
On the BX I'm pulling power from the Work Light "plug" (bullet connectors in my case) because there's not much room on a BX to add another fuse box and the Work Light circuit from the factory is already fused (although in my opinion the wiring is a bit undersized for the current the circuit is rated for). There's a lot of "stuff" going on with these tractors, I want to add to that as little as possible.


Bearcatrp

Well-known member

Equipment
BX1880 with loader, mower and 3 point
Mar 28, 2023
658
347
63
Minnesota
On my B I am using the OEM 12v socket by cupholder.
That what I use for my light bare. Those that are not using this, that’s what I am looking for. Would like to put rear lights on as posted above that will light up the back side. I like those magnet lights. Similar to my light bar.


Bearcatrp

Well-known member

Equipment
BX1880 with loader, mower and 3 point
Mar 28, 2023
658
347
63
Minnesota
On the BX I'm pulling power from the Work Light "plug" (bullet connectors in my case) because there's not much room on a BX to add another fuse box and the Work Light circuit from the factory is already fused (although in my opinion the wiring is a bit undersized for the current the circuit is rated for). There's a lot of "stuff" going on with these tractors, I want to add to that as little as possible.
Work light plug?


Bearcatrp

Well-known member

Equipment
BX1880 with loader, mower and 3 point
Mar 28, 2023
658
347
63
Minnesota
Congrats on your new machine.

Here's a simple to do light installation that uses magnetic mounts. No issues with them holding the lights and you can still reposition them as needed. I ran the wire up inside the ROPS and came out the factory hole in the top.

No drilling either...

View attachment 142858

Illuminated switch:

View attachment 142859

Wiring Kit

View attachment 142860

Lights:

View attachment 142861

Magnetic mounts:

View attachment 142862
Is that $19.99 a piece for that magnet?
