Part number diagram for BX2200 hydraulic hardline

JeremyBX2200

Well-known member

Equipment
BX2200
Aug 3, 2020
314
275
63
Indiana
Spreading gravel today and I started to notice some drops where I had been getting bucketloads. Upon inspecting the tractor closer it appears to be one of the 3 hard lines that connect to the FEL. I have not takes things apart yet, but it is dripping from the pillow block bracket that hold the 3 lines in the picture below. Best guess is the middle hard line.

Never looked at this on a Kubota before, but on other hardline vehicle applications with this type of a bracket, there was always rubber around the hardliners to protect them from vibration. On my BX2200 there isn’t a rubber isolator and the metal line can rattle in the bracket. I am thinking that the vibration slowly wore a hole in the line. It drops a lot faster when doing loader work that puts the hydraulics in bypass….which happens a bit when scooping buckets of driveway gravel.

I was looking for a diagram that had parts numbers and I couldn’t find it on the Kubota Illustrated Parts site.

Anything obvious I might be missing? I would love to just have to tighten a fitting and call it good.


jnschnit

Active member

Equipment
B2601, BH70 BH, LA435 FL, RCK60-32 MMM, BX2763 Blade
May 10, 2013
121
39
28
newark valley new york

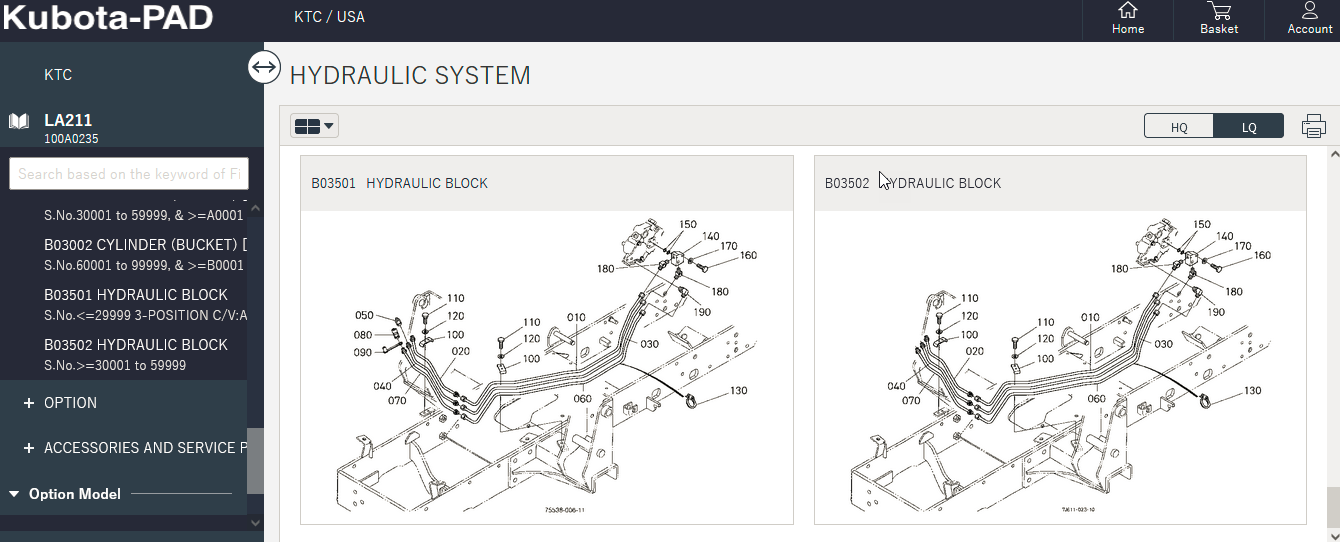

Not familiar with your BX2200. I did look at the LA211 loader part diagram and I think thats what you want to look at? The diagram is on the Kubota illustrated parts list.


JeremyBX2200

Well-known member

Equipment
BX2200
Aug 3, 2020
314
275
63
Indiana
Not familiar with your BX2200. I did look at the LA211 loader part diagram and I think thats what you want to look at? The diagram is on the Kubota illustrated parts list.

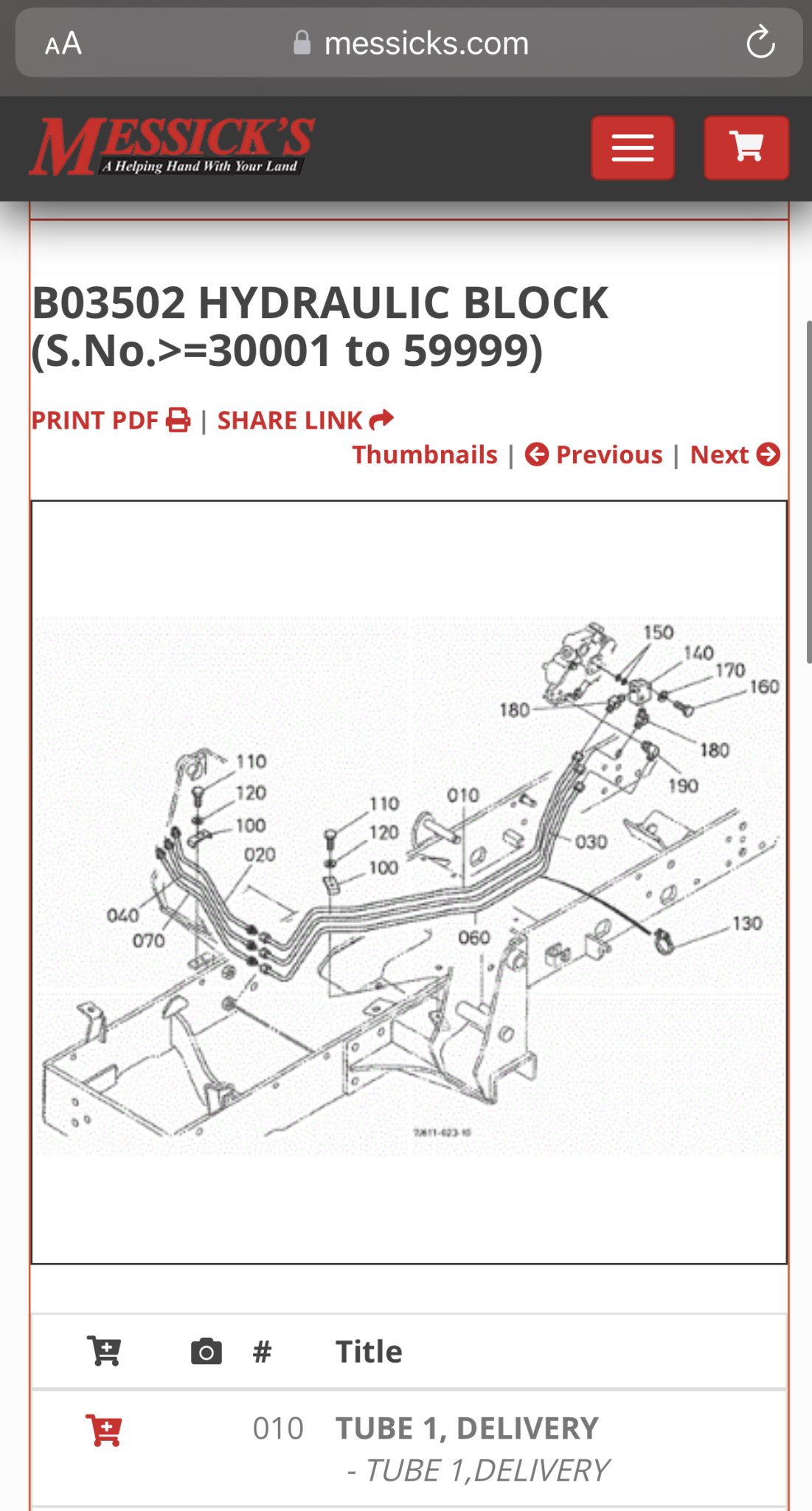

I looked at that. The line I am talking about is shown in this picture, but the diagram/labels are just showing the loader hoses etc. I am talking about the hardline that is on the tractor that the FEL hoses connect to with quick connects.
