My failed wood chipper project

awesome

Member

Equipment
B2601, BH70, K54-22-06B
Sep 16, 2018
88
34
18
ottawa
I saw a few videos of people making their own wood chipper and I decided I'd try to make one using stuff I already have. I recently made a log splitter that works great and decided I'd integrate the chipper on it. But that project has failed so I thought I'd share my experience.
Here's a video of the first run:

The first problem I had was to drill holes in the shaft precisely enough to fit the blades:



I blame this on not having the right tools. But I'm sure that I can rig something up with my press drill to get more precision. That's not a big issue though because I was still able to align the holes for the blades.

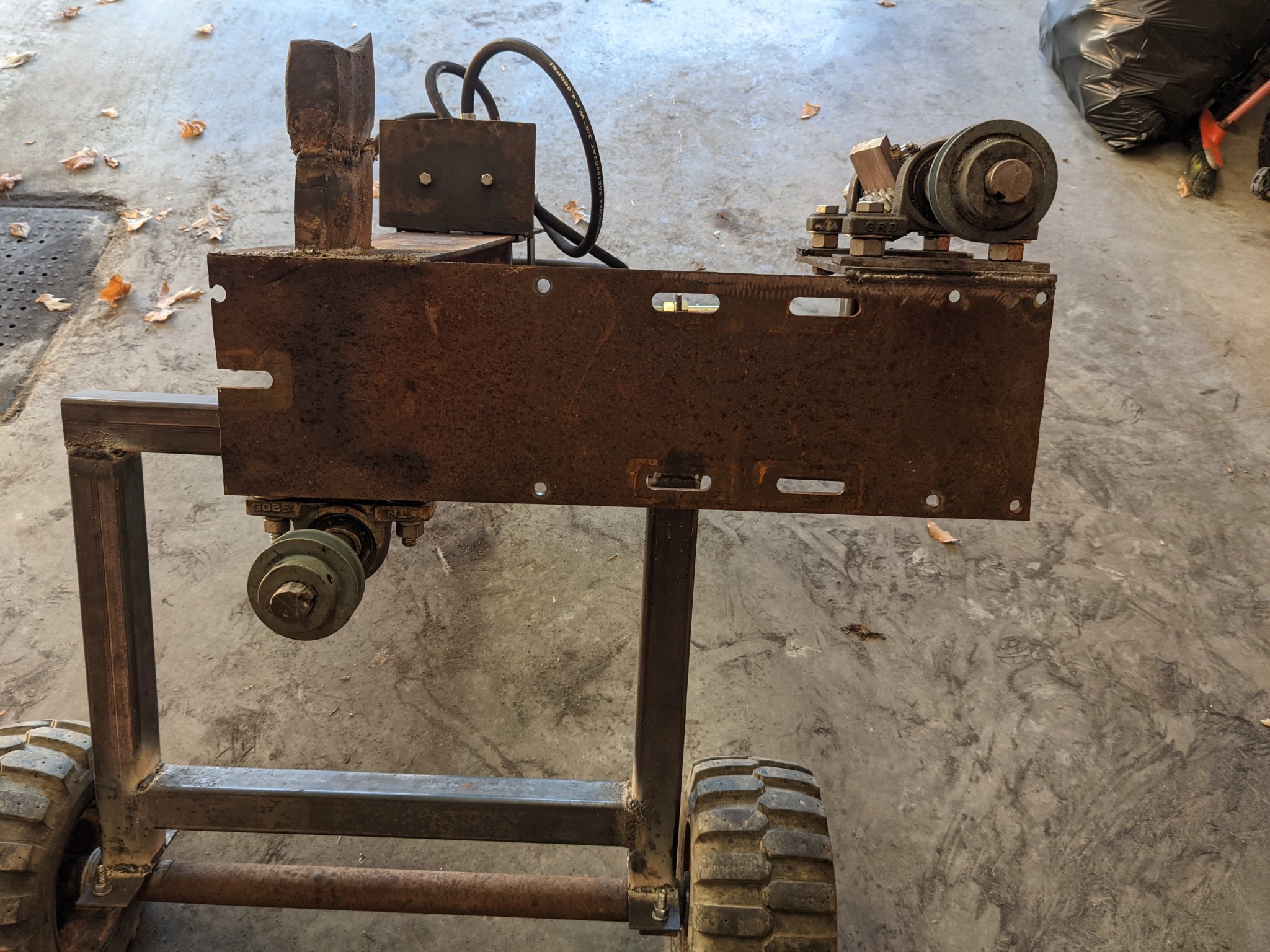

Then I mounted this on the splitter with the driveline under the beam, going to the tractor. This works just nice. The clearance between the splitter and the chipper is 12" so it's good enough for me.


But the issue with that was the size of my pulleys, The belt started slipping as soon as I put a branch in it. No big deal, I changed them for 16" pulleys that I already had. But then what had to happen did happen: the shaft on the chipper bent. I'm using a 1" steel bar for the shaft and that was not enough. So that kinda killed the prototype. The bar bent, so one of the blades touched the bottom of the chipper and halted the shaft, and the bolts on one of the pulleys sheared. I'm using a QD bushing on the large pulleys. Those bushings have 2 1/4 bolts (I'm using grade 5) but that was no match for the raging force of the PTO.

So now I'm back to the drawing board. Here's what I think I'll do:
- I'll keep the driveline as is, with a 1" steel bar and a 16" pulley at the end. But I think I'll drill 3/8 hole in the the pulley and bushing and use 3/8 bolts grade 8.
- I'll build another chipper with a 1.5" steel bar. But I don't wanna have to buy another pulley so I might get it machined to have the last 4" narrow down to 1" so that I can use the same pulley.
- Instead of using 4 bolts per blades, I think I'll use 3 longer bolts that go straight across (so the holes in the shaft are non-threaded) and the bolts would hold both opposing blades.

BTW, the blades are made of 5/16 steel. I know I'm supposed to use something thicker and harder, but I'll see where that gets me. I can always make new blades later.


orange crusher

Well-known member

Equipment
BX 2680
Sep 30, 2017
264
305
63
ontario canada
I bet your retired .............................. "it's all fun and games until somebody gets poked in the eye with a sharp stick"

Last edited:

GreensvilleJay

Well-known member

Equipment
BX23-S
Apr 2, 2019
2,938
692
113
Greensville,Ontario,Canada
As much as I love bodging...have never built a chipper(owned 3 or 4 though..)
1st, buy a set of proper chipper blades,say from Vermeer.
start there. Unless you use the correct grade of steel AND properly heat treat them, you'll be lucky to get a couple twigs chipped before your 'blades' get dull.
2nd, download or look at a 'parts list' for chippers based on size of branches you want to chip. 1" shaft is tooo small. 1.5 is 'small', 2" would be nice
3rd shaft MUST be balanced !!! As wel as very well supported.
Then there's the 'safety' thing.. once built be 100% sure, when it explodes YOU and others will NOT get hurt,maimed or killed by the shrapnel flying off.....
then there's the how many trees makes a pile of chips 'detail'..answer is LOTS !

Bottom line, it's be easier,cheaper, SAFER to stock up on branches then rent a chipper for 4hrs, maybe a day. Maybe make a deal with local arbourist to chip and dropoff material ??

  • Like
Reactions: 1 user

awesome

Member

Equipment
B2601, BH70, K54-22-06B
Sep 16, 2018
88
34
18
ottawa
I bet your retired .............................. "it's all fun and games until somebody gets poked in the eye with a sharp stick"
I thought the children bike in the back of one of the pictures would make it clear that I am far from being retired 😂

Bottom line, it's be easier,cheaper, SAFER to stock up on branches then rent a chipper for 4hrs, maybe a day. Maybe make a deal with local arbourist to chip and dropoff material ??
I can't argue with the safety aspect but for the cheaper and easier: My goal is not to chip wood. My goal is to build something.

  • Like
Reactions: 1 user

TheOldHokie

Well-known member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
718
284
63
Myersville, MD
I can't argue with the safety aspect but for the cheaper and easier: My goal is not to chip wood. My goal is to build something.
I think we are kindred spirits. I am retired and because I too like to build things I have spent a big chunk of the kids inheritance equipping myself. If they want it back they will have to find a buyer for the machine tools.

Keep those creative juices flowing and your fingers away from things that bite!!!

Dan

  • Like
Reactions: 4 users

NCL4701

Well-known member

Equipment
L4701, WC68 chipper, grapple, BB1572 box scrape, Howes 500, 16kW IMD gen
Apr 27, 2020
853
774
93
Central Piedmont, NC
Only advice I could give having owned one chipper and operated a smattering I didn’t own is to take a look at a functional wood chipper before going on a wheel reinventing excursion. Only ones I’ve seen work pretty much like a salad shooter with the slicer blade attached but on a MUCH bigger scale. Big flywheel with a few blades firmly attached to chip the wood and act as a fan to blow chips out a chute of some sort. The inertia of the flywheel works as a sort of shock absorber to keep the shock loads off the tractor PTO. I would agree actual chipper knives would be highly desirable.

In principle, it’s a pretty simple concept. In practice building one that works without damaging nearby persons and property, good luck. Controlling the forces involved, even with a small tractor, can get a bit hairy.

Last edited:

mikester

Well-known member

Equipment
M59 TLB
Oct 21, 2017
1,245
359
83
Canada
www.divergentstuff.ca
If you want a project chipper buy a chinese chipper clone. You will have countless hours of fun repairing, modifying and rebuilding. My 8" Jinma clone always has surprises for me every time I hook it up.

Get one with a big heavy flywheel, as you discovered you need the mass and inertia trying to chip wood of any size.

Top up the life and disability insurance while you are at it.

  • Haha
Reactions: 1 user

awesome

Member

Equipment
B2601, BH70, K54-22-06B
Sep 16, 2018
88
34
18
ottawa
I guess it's a better idea that my next project where I wanna bolt 4 chainsaws on a disc that would be rotated by the PTO.

(I need to clarify that I'm just kidding here :p )


Ikc1990

Active member

Equipment
Kabota b2710, cab, la402, b2782, 5' bush hog, homade carryall, 5' rototiller,
Dec 2, 2020
233
105
43
Vermont
That would be a hell of a brush cutter, awsome
Lol


Old Bob

Active member

Equipment
R520
Jun 5, 2021
269
212
43
Connecticut
I thought the children bike in the back of one of the pictures would make it clear that I am far from being retired 😂


I can't argue with the safety aspect but for the cheaper and easier: My goal is not to chip wood. My goal is to build something.
Try these guys


WFM

Active member

Equipment
L3800
Apr 5, 2013
837
127
43
Porter Maine
The video looks like it might work as a good 'chicken plucker' or turkey plucker.
Fingers can be removed quickly so use caution.
