Mid mower RCK60-30BA Vs RCK60-30BB

Orange man

Active member

Equipment
Kubota L2501 LA525 loader , woods prd6000 mower, Land pride RB 1672
Jul 23, 2014
160
81
28
WNY
Looking for a deck for a LX2610 and found a deck off a B2650, Any one have the BA deck on a LX3310 or LX2610. Thought I read somewhere that someone used the RCK60-30BA on a LX. Thanks


dingus

New member

Equipment
LX2610 TLBMM
Jun 16, 2022
4
4
3
PA
Hi there! Have you found anything out on this? I am in the same situation. Found a RCK60-30BA and wondering if it will fit on my LX2610. Thanks a bunch!


LVG

New member

Equipment
LX2610 HSDC
Jul 9, 2022
4
0
1
Colorado
Same situation & same question.

I've been told that there's no difference, just a new model number for a new model year - which I don't believe.

It does appear that the 'ba' will work in place of the 'bb' - but I don't know what possible issues the 'generally interchangeable' parts might cause.

Any information would be very much appreciated.


woodman55

Well-known member

Equipment
L6060HSTC, RTV 1100
May 15, 2022
724
516
93
canada
If it's used and a decent price, you can always resell it, if it doesn't fit.


rc51stierhoff

Well-known member

Equipment
B2650, MX6000, (BX sold)
Sep 13, 2021
1,900
2,046
113
Ohio
You might try Messicks online and see if you can look up the mower for your machine and see what type it assigns…their parts normally tell you what model it fits…worth a try. if not maybe a call parts guy at your dealer and they should be able to tell you fit/application….maybe the Kubota build it would also tell you which model deck would be sold…that’s another way maybe.


dingus

New member

Equipment
LX2610 TLBMM
Jun 16, 2022
4
4
3
PA
UPDATE!!!

After doing a lot of research with the illustrated parts breakdown on the lift arm (A20602), lift linkage (A20300) and the deck itself, I was convinced the RCK60-30BA would fit on my LX2610. I then called the dealership that has my new LX2610 (waiting on a loader and backhoe) and talked to the lead mechanic and salesman. They both agreed that the RCK60-30BA should work just fine on the LX2610. I then cancelled my order on the the new $3,200 RCK60-30BB (which the dealership was fine with) and went and picked up the used (like brand new) RCK60-30BA. I then had to remove the lift arm and lift linkage from the B2650 that the 30BA came from. Most of this was pretty simple with the exception of:

Lift Linkage Parts:
Arm, Lift 2 LH (K5772-51190)
Arm, Lift 2 RH (K5772-51210)
Shaft, Lift (K5772-51102 Replaces K5772-51100)

Lift Arm Parts
Arm, Lift 1 RH (K5772-61170)

The above parts would not come off because the backhoe frame which runs along the tractor frame and sits on the rear prevented them from being removed without separating the backhoe frame from the tractor frame (No Thanks!) .

Turns out that there is an order that certain things need to be installed. For example: If you order a new LX2610 with a Mid-Mount Mower, Loader, and Backhoe, the loader needs to be installed first because there are certain plates that come with it that the mower deck linkage mounts to. Next, the mower Lift Arm A20602 and Lift Linkage A20300 are installed. Then the backhoe frame.

My thoughts are that if you find an RCK60-30BA from a B2650 tractor and want to mount it on an LX2610, make sure you remove as much of the lift arm and lift linkage as you can. If you just buy the deck, you are going to spend upwards of $1,000 on rest of the parts needed.

I attached a few diagrams below of the major parts I needed to order that I could not remove from the B2650.


I hope this helps and will post updates as they come.

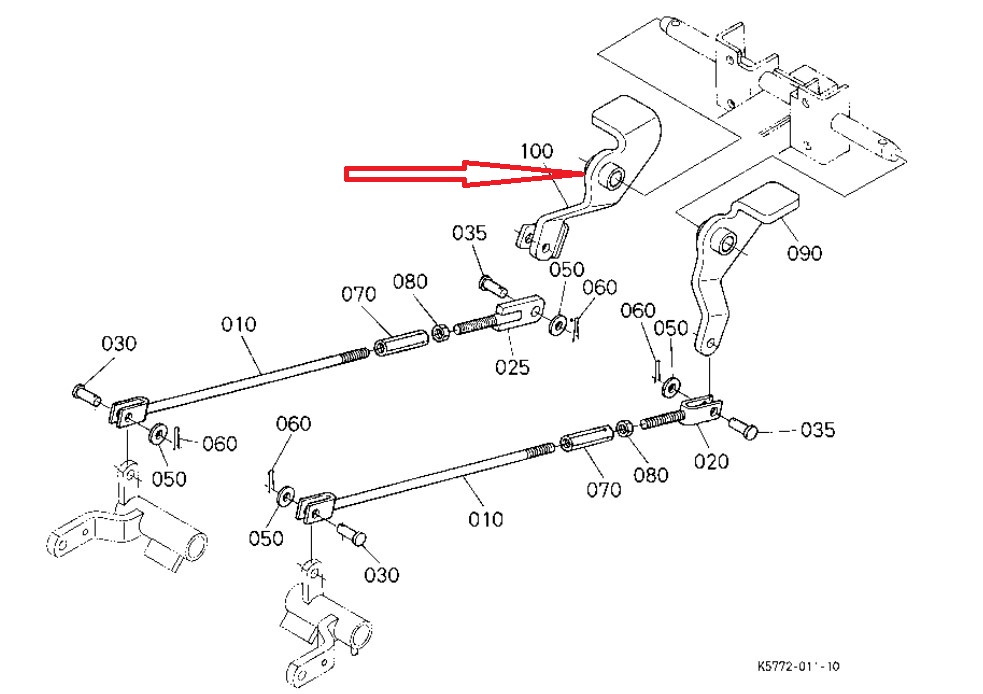

Kubota RCK60-30BB Lift Arm 2.jpg

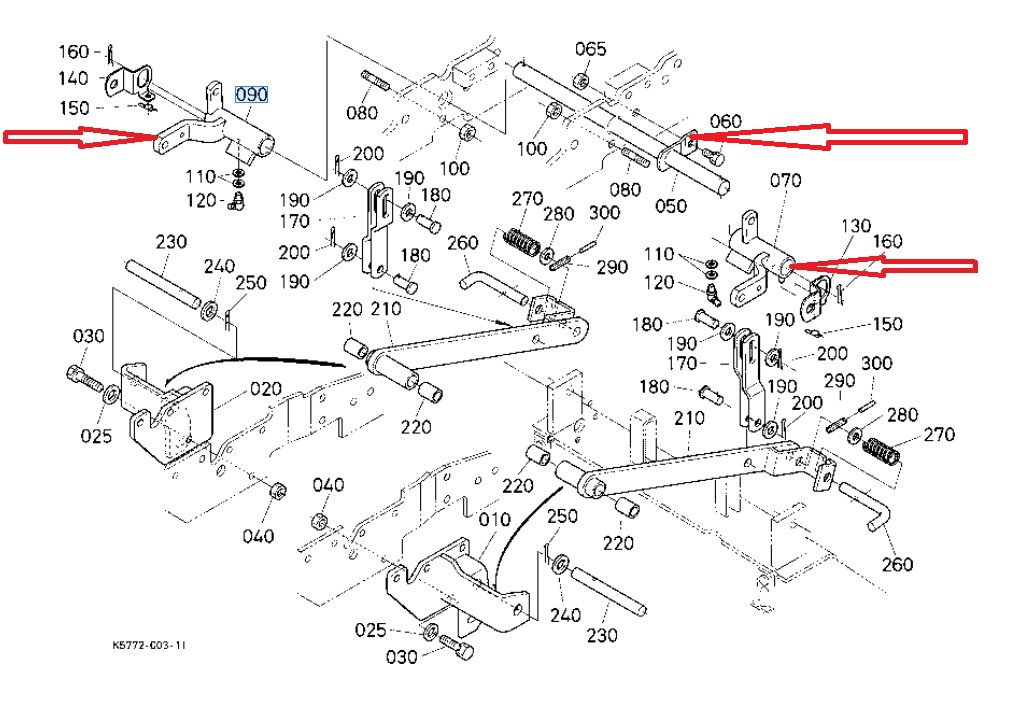

Kubota RCK60-30BB Lift Linkage 2.jpg

  • Like
Reactions: 1 users

LVG

New member

Equipment
LX2610 HSDC
Jul 9, 2022
4
0
1
Colorado
UPDATE!!!

After doing a lot of research with the illustrated parts breakdown on the lift arm (A20602), lift linkage (A20300) and the deck itself, I was convinced the RCK60-30BA would fit on my LX2610. I then called the dealership that has my new LX2610 (waiting on a loader and backhoe) and talked to the lead mechanic and salesman. They both agreed that the RCK60-30BA should work just fine on the LX2610. I then cancelled my order on the the new $3,200 RCK60-30BB (which the dealership was fine with) and went and picked up the used (like brand new) RCK60-30BA. I then had to remove the lift arm and lift linkage from the B2650 that the 30BA came from. Most of this was pretty simple with the exception of:

Lift Linkage Parts:
Arm, Lift 2 LH (K5772-51190)
Arm, Lift 2 RH (K5772-51210)
Shaft, Lift (K5772-51102 Replaces K5772-51100)

Lift Arm Parts
Arm, Lift 1 RH (K5772-61170)

The above parts would not come off because the backhoe frame which runs along the tractor frame and sits on the rear prevented them from being removed without separating the backhoe frame from the tractor frame (No Thanks!) .

Turns out that there is an order that certain things need to be installed. For example: If you order a new LX2610 with a Mid-Mount Mower, Loader, and Backhoe, the loader needs to be installed first because there are certain plates that come with it that the mower deck linkage mounts to. Next, the mower Lift Arm A20602 and Lift Linkage A20300 are installed. Then the backhoe frame.

My thoughts are that if you find an RCK60-30BA from a B2650 tractor and want to mount it on an LX2610, make sure you remove as much of the lift arm and lift linkage as you can. If you just buy the deck, you are going to spend upwards of $1,000 on rest of the parts needed.

I attached a few diagrams below of the major parts I needed to order that I could not remove from the B2650.


I hope this helps and will post updates as they come.


View attachment 83343 View attachment 83344
Thank you for your detailed description & the annotated schematics.
By happenstance, I'm having the attachments installed in the order you recommend - although I'm still waiting for the backhoe.
I'll check with the tech, using your info, to make sure he's tracking the mounting parts.


e dogg

New member
Premium Member

Equipment
B2650 LA534 BH77
Sep 11, 2022
15
1
3
Atlanta GA
I just made a post asking if there is a secret method to get that carrier shaft to slide in (#50 in 2nd pic), because the backhoe frame is in the way... Looks like the secret is there is no shortcut and that frame has to come off, ouch!


dingus

New member

Equipment
LX2610 TLBMM
Jun 16, 2022
4
4
3
PA
I just made a post asking if there is a secret method to get that carrier shaft to slide in (#50 in 2nd pic), because the backhoe frame is in the way... Looks like the secret is there is no shortcut and that frame has to come off, ouch!

Ouch is right! I agree, the backhoe frame will have to be removed or possibly moved just enough to slide the shaft in. Sorry....

  • Like
Reactions: 1 user

dingus

New member

Equipment
LX2610 TLBMM
Jun 16, 2022
4
4
3
PA

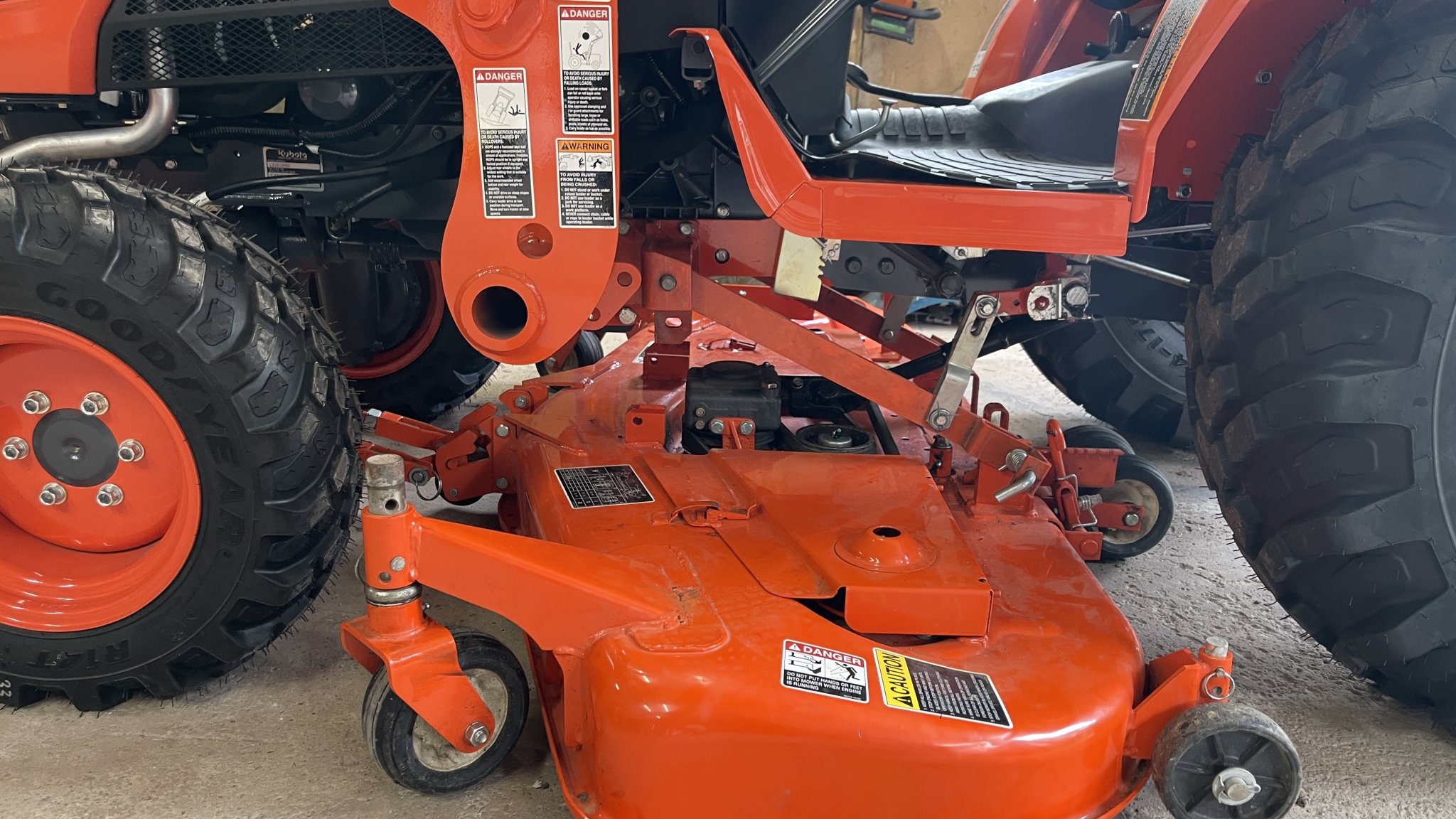

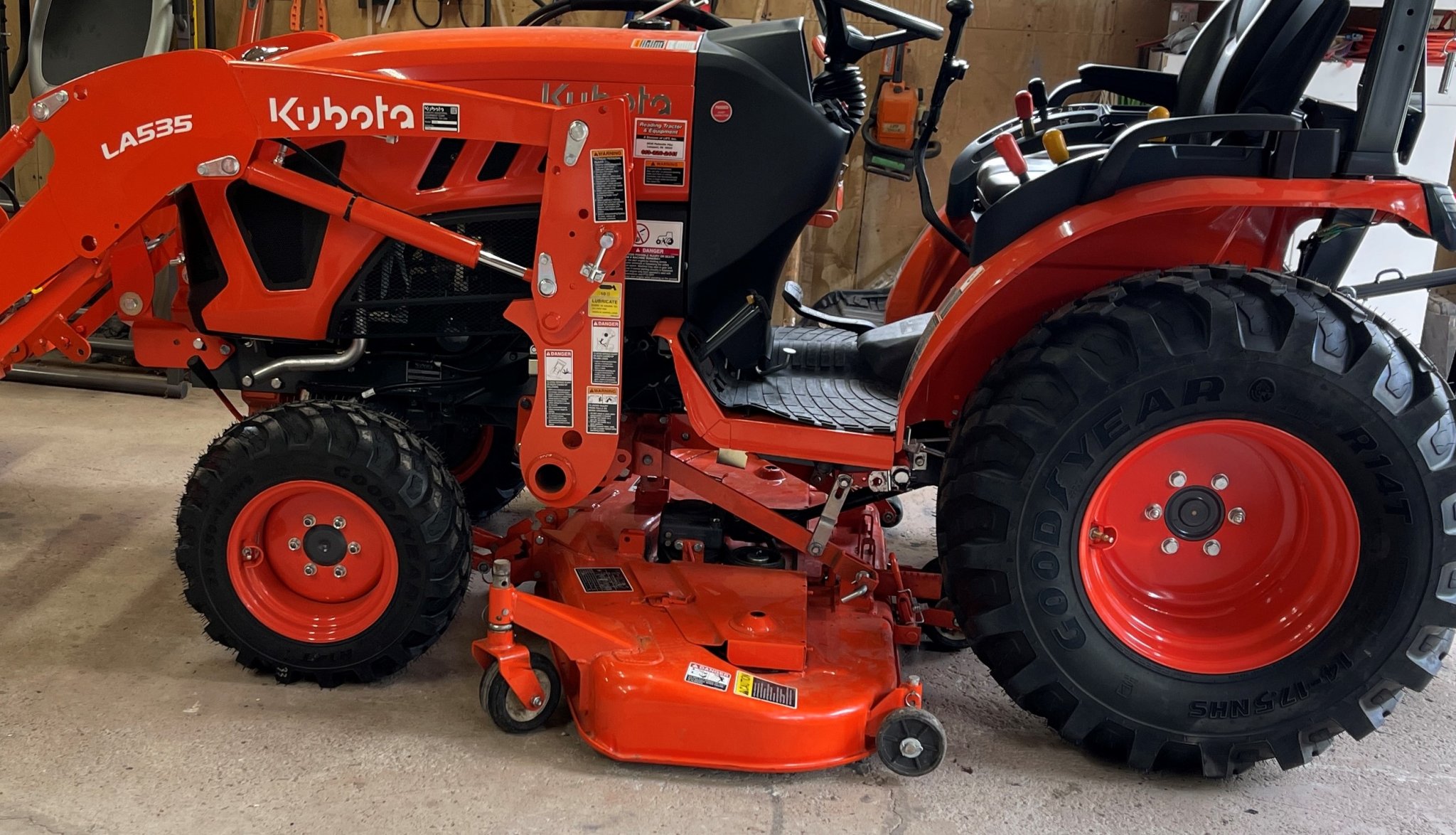

Sorry for such a long delay but I just wanted to post a few pics and confirm that the RCK60-30BA deck from a B2650 in fact fits and works perfectly on an LX2610!



Kubota 2.jpg
Kubota 3.JPG

  • Like
Reactions: 1 user

e dogg

New member
Premium Member

Equipment
B2650 LA534 BH77
Sep 11, 2022
15
1
3
Atlanta GA
It turned the few hour job into a whole day job, thats for sure! I about had a heart attack when I went to put the lift mechanism bushings (90 and 100 in the diagram above) on the 3 point hitch shaft , as there isn't enough clearance to drop them between the ends of shaft and BH77 frames. I was thinking the other side frame would have to come off too, then I realized you can loosen the bolt above the draw bar receiver and slide the shaft side to side.

  • Like
Reactions: 1 user

e dogg

New member
Premium Member

Equipment
B2650 LA534 BH77
Sep 11, 2022
15
1
3
Atlanta GA
Ill also add here that the RCK60-30BB fits the B23650 without any mods or extra parts to buy


rkidd

Active member
Lifetime Member

Equipment
B2650, FEL With QA 60"mmm, 3pt FDR1672,homemade ballast box, BB 1572 box scraper
Dec 7, 2015
743
67
28
Jefferson Ohio
Sorry for such a long delay but I just wanted to post a few pics and confirm that the RCK60-30BA deck from a B2650 in fact fits and works perfectly on an LX2610!



View attachment 88345 View attachment 88346
I have a 2015 B2650 with this exact deck. Just letting you know that your bracket from the front of the tractor to the front of the deck is not on correctly. The pin with the clip through it goes back farther and slips into the notch on the deck. That way the pin that is in there will be back farther and keep it from moving back and forth.
