Maxed out B2650 FEL lift capacity

i7win7

Well-known member

Equipment
BX2370, B2650 grapple, tree puller, trailer mover, 3 point hoist, mower, tiller
Feb 21, 2020
1,104
482
83
Central, IL
Had a dead tree at the top of the driveway hillside. Dropped it before it fell in the driveway.


Used 2 snatch blocks, 200+ feet of wire cable to increase tractors pulling power 3X.

Saved 2 logs for lumber logs. B2650, LA534 loader and LP0660 grapple. FEL could not lift it. Curled grapple down to raise FEL lift arms, then curled grapple back to raise log off the ground. Log weight calc estimates 1466 lbs for a 20" 10.5' red oak log.



Attachments

  • Like
Reactions: 2 users

NCL4701

Well-known member

Equipment
L4701, WC68 chipper, grapple, BB1572 box scrape, Howes 500, 16kW IMD gen
Apr 27, 2020
669
549
93
Central Piedmont, NC
Quite a load you have there. Must be a good bit of counterweight on the back to keep the rear end down.


Henro

Well-known member

Equipment
B2910, BX2200, KX41-2V mini Ex.
May 24, 2019
2,025
595
113
North of Pittsburgh PA
Had a dead tree at the top of the driveway hillside. Dropped it before it fell in the driveway.
View attachment 66028
View attachment 66029
Used 2 snatch blocks, 200+ feet of wire cable to increase tractors pulling power 3X.

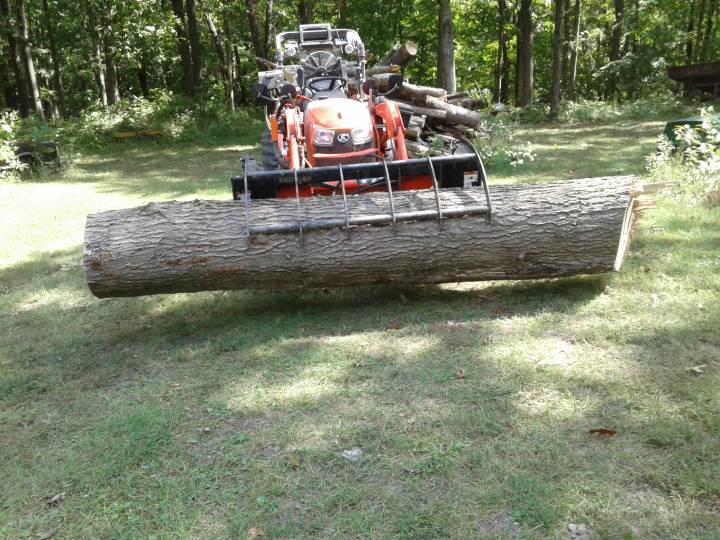

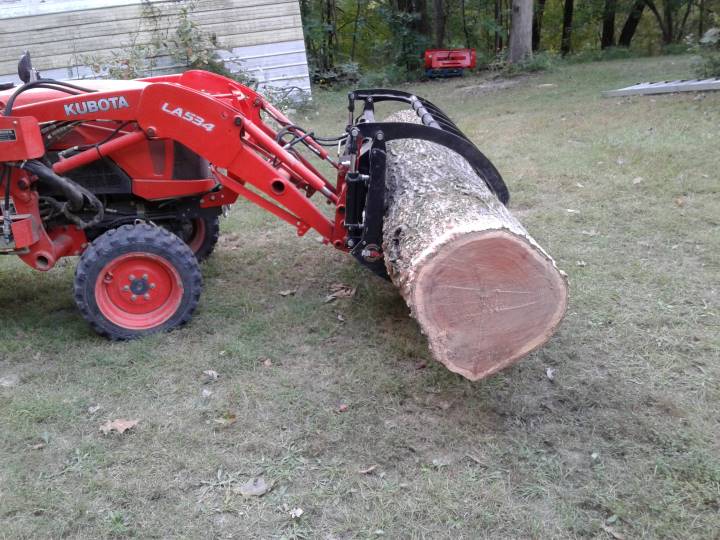

Saved 2 logs for lumber logs. B2650, LA534 loader and LP0660 grapple. FEL could not lift it. Curled grapple down to raise FEL lift arms, then curled grapple back to raise log off the ground. Log weight calc estimates 1466 lbs for a 20" 10.5' red oak log.
View attachment 66030
View attachment 66031
It's off the ground. Looks to me that you have a bit of capacity left! :ROFLMAO:


i7win7

Well-known member

Equipment
BX2370, B2650 grapple, tree puller, trailer mover, 3 point hoist, mower, tiller
Feb 21, 2020
1,104
482
83
Central, IL
It's off the ground. Looks to me that you have a bit of capacity left! :ROFLMAO:
Curled grapple down to raise FEL lift arms, pressurized lift cylinders (would not lift it) then curled grapple back to raise log off the ground.
