I know why it won't start just don't know how to find the reason. I have checked and found that i don't have the voltage to the fuel shut off solenoid. Nothing I can find tells me when the wiring goes and what items are involved with supplying 12 volts to the unit. LIke location of relays or any other components in the circuit. Can anyone offer some insight?
M7040 Won't start
- Thread starter DIYnewby
- Start date
Welcome. I'm assuming crank/no-start?

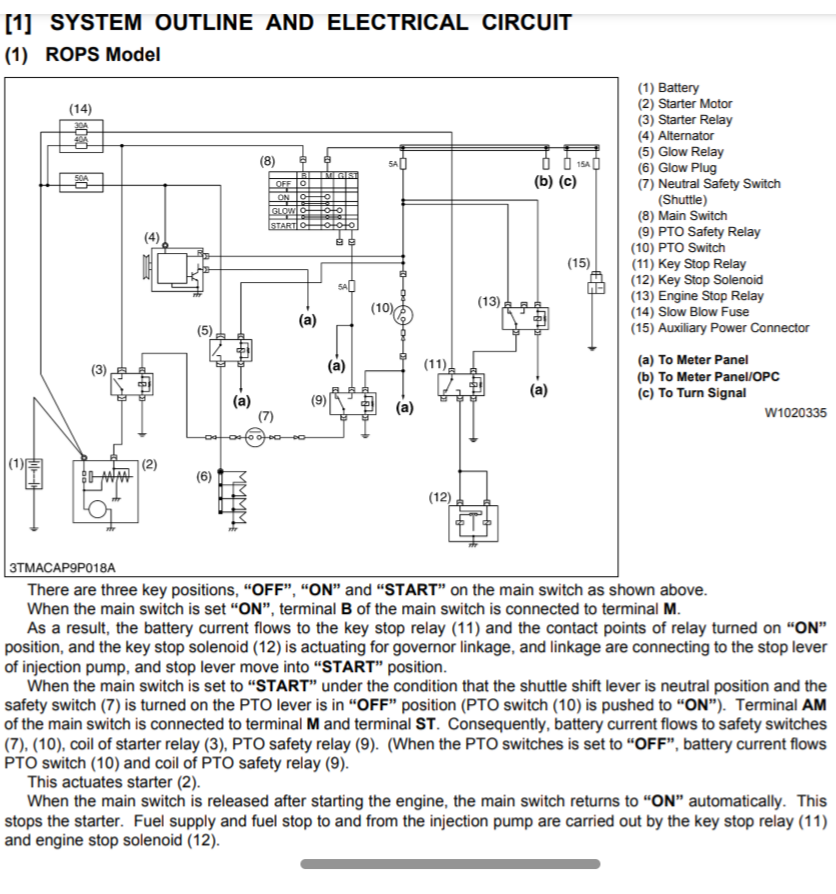

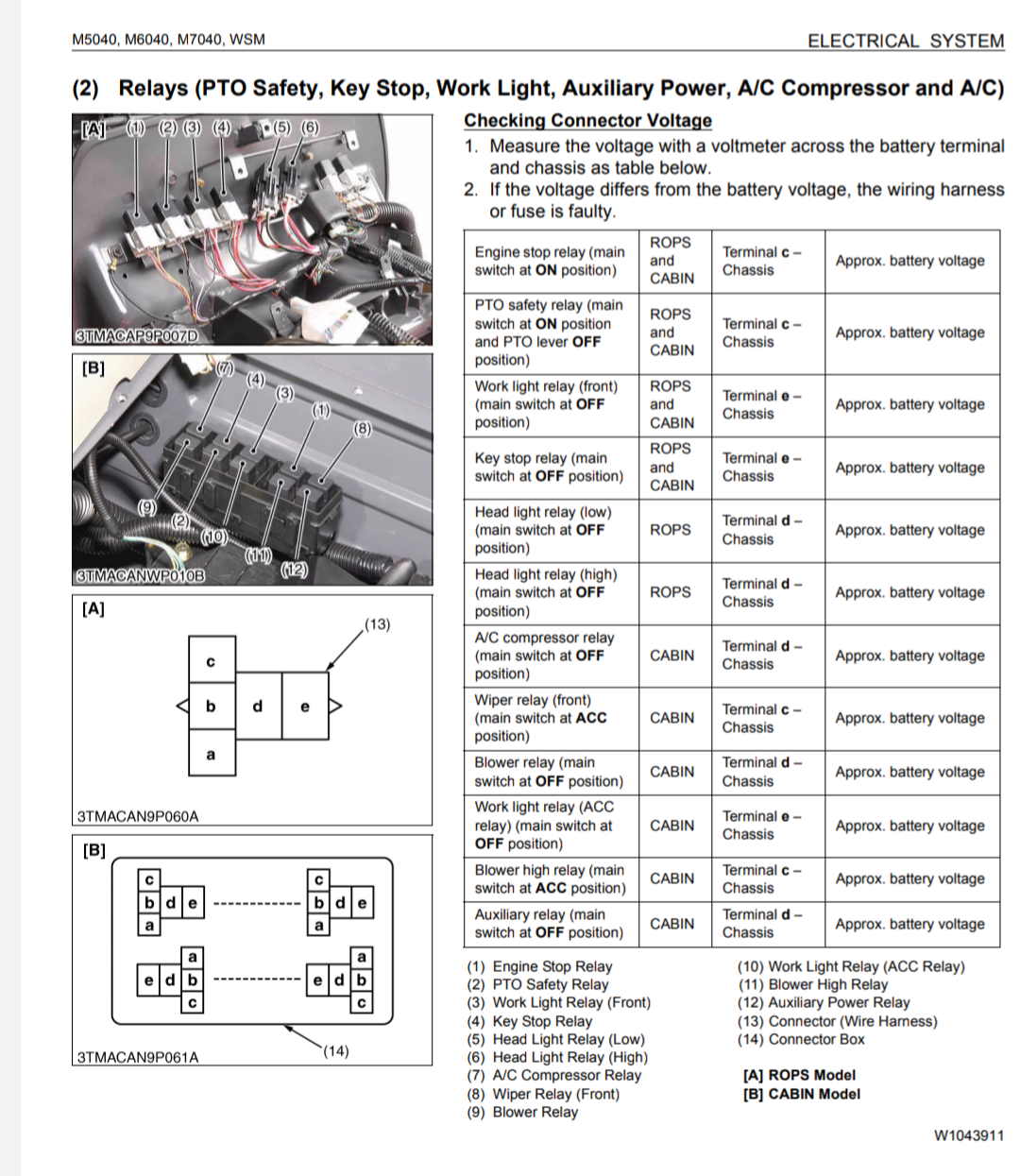

Here's the start system and relay location. Theres an engine stop relay and a key stop relay.
It may help in the future if you put the full model number in your info. Cab/ROP and shuttle type sometimes changes things. Let us know your results.
Captain13
Active member
Equipment
M7040 4WD ROPS, ZD28, Woods (84” box blade, 72” harrow, 48” pallet forks)

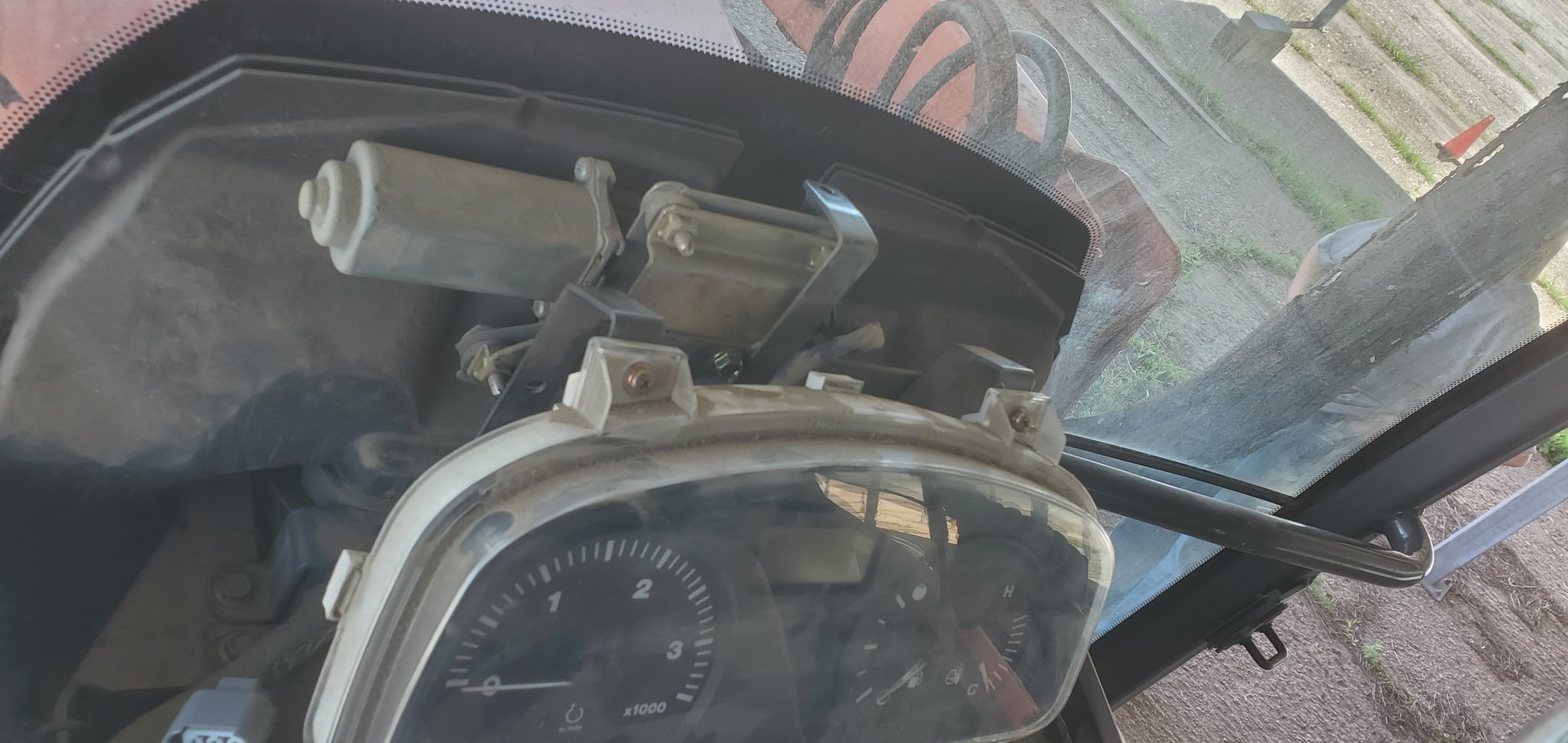

My 7040 (ROPS) relays are behind the instrument panel. Remove the screws holding the panel on, and lean it back toward the steering wheel. The relays are on the top of the firewall. You can swap relay locations if you think one is faulty just to troubleshoot.
North Idaho Wolfman
Moderator
Staff member
Lifetime Member
Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Fuses checked and good, suspect relays just can't find location information.
No, It's a cabin model and not a ROPS. Chased solenoid wire back to cabin but it does not go up to Display panel.
The posts 2 & 3 would help if the location of the relay locations on the unit where described. Nice picture s to identify which relay is for what but where are they located in the cab?
Attachments
![20230325_161442[1].jpg](/forums/data/attachments/99/99056-1e8f5f5b9a712df898128dfbaefe53de.jpg)

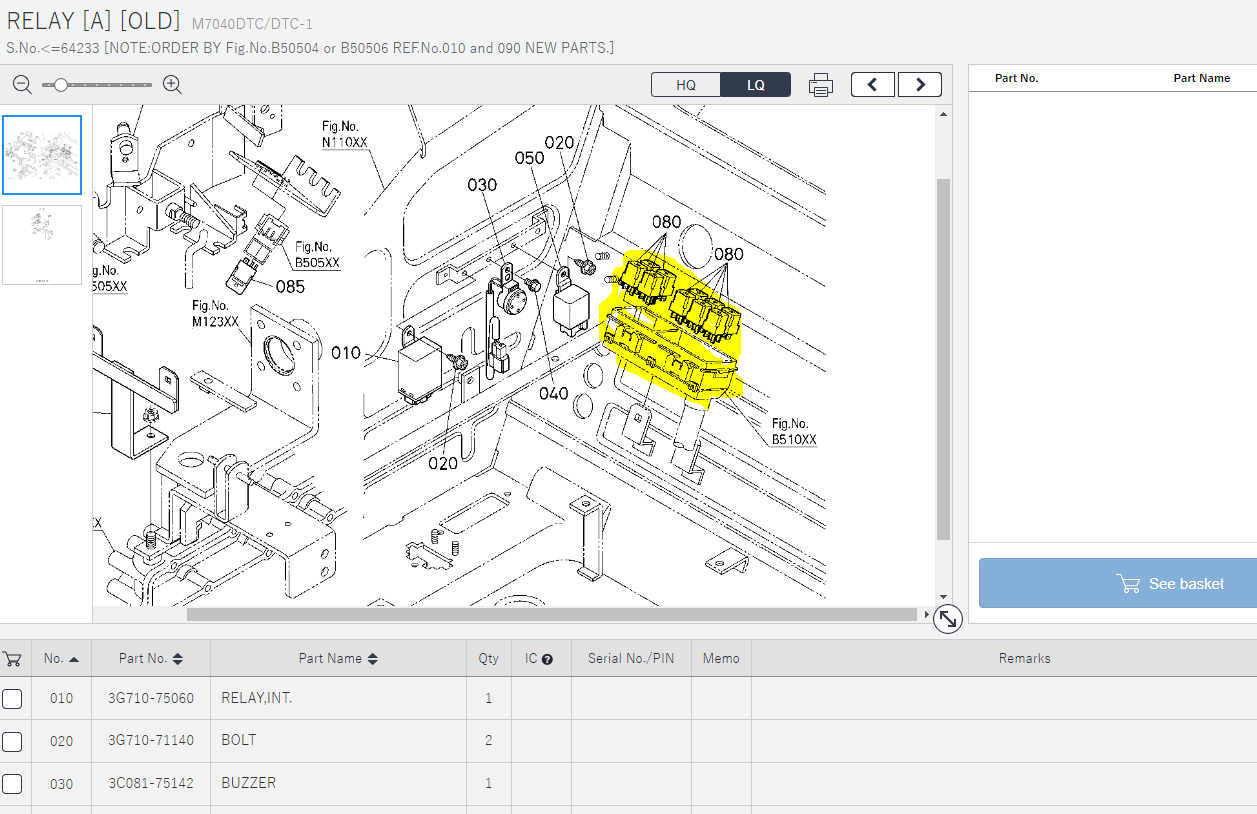

From perusing the parts diagrams on Messick's, it appears to be under a panel in the floor beneath the seat.
North Idaho Wolfman
Moderator
Staff member
Lifetime Member
Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Removed the two boats and removed plate. nothing attached to it and only Air conditioning components behind it. Any other places the key stop relay might be hiding?
Last edited by a moderator:
North Idaho Wolfman
Moderator
Staff member
Lifetime Member
Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
PM me your serial number because nothing is adding up.
There are quite a few sub models of the M7040 so anything is possible.
There are quite a few sub models of the M7040 so anything is possible.
North Idaho Wolfman
Moderator
Staff member
Lifetime Member
Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Thanks that helped to nail it down.
Behind the seat right hand side.
Might be under a trim cover.
Behind the seat right hand side.
Might be under a trim cover.
Nope, not there either however the rest of the diagram looks like my unit.
North Idaho Wolfman
Moderator
Staff member
Lifetime Member
Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
OK then, I'm at a total loss as all the info says that it's in one of those 2 locations.
When you opened it up was there the 2 clips to hold the relay panel?
Wondering if someone has relocated it to the side panel?
When you opened it up was there the 2 clips to hold the relay panel?
Wondering if someone has relocated it to the side panel?
No tabs on back panel to mount relays and not moved to the side behind the fender cover. I had all that off replacing the PTO safety switch. And that area looks just like the picture shows.
