Everybody probably knows what a great deal the L3560LE is by now.
I have one, love it and never thought the cruise control was a big deal (it's missing on the LE model).

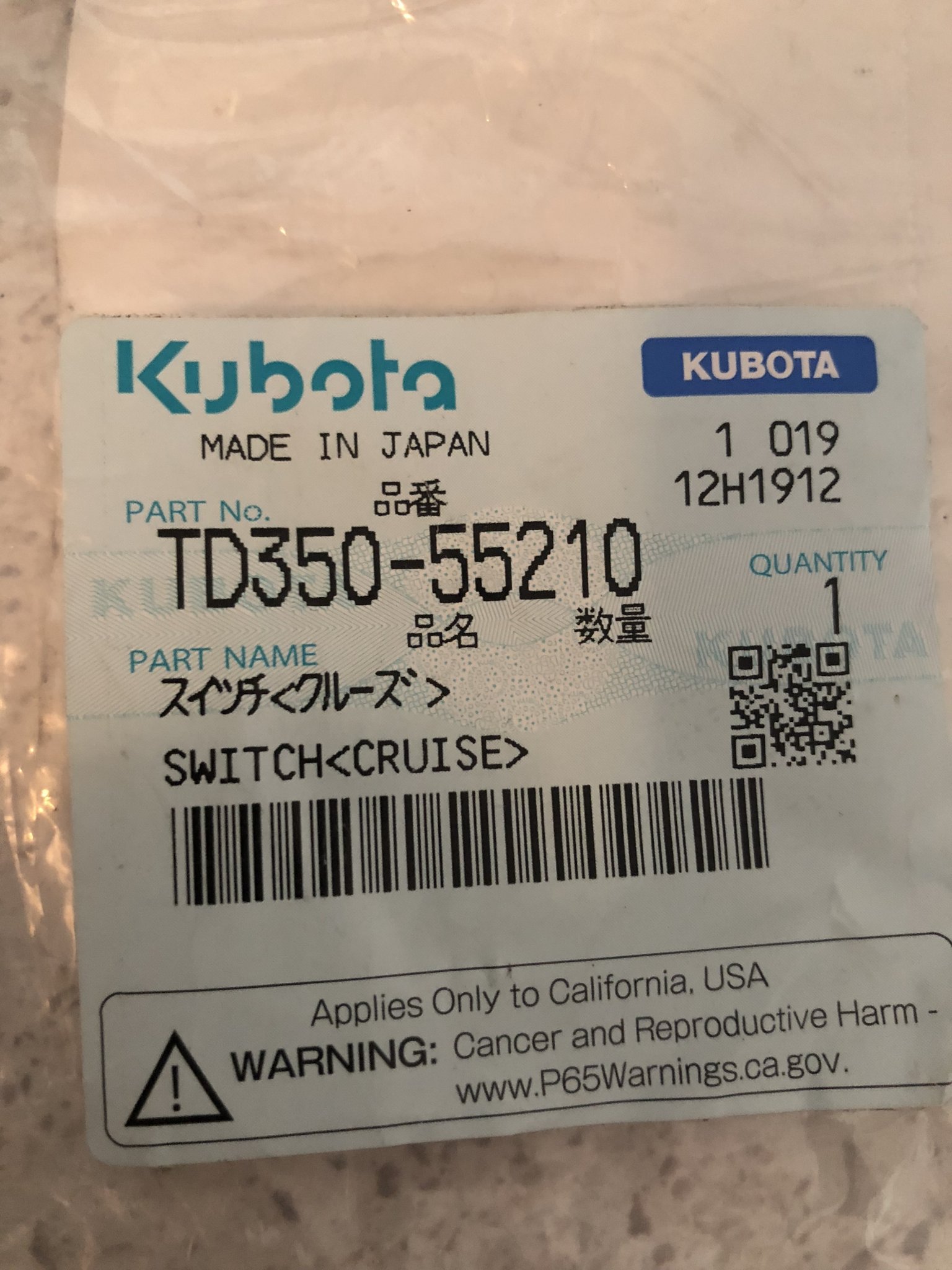

Made a phone call to messicks and spoke to mike. He found the part number for the std 3560 cruise switch and sent it my way. kubota p/n td350-55210.
Today I easily located the factory harness, removed the block off plate in the dash and plugged in the cruse switch. Not only did it function perfectly, I found it very useful/helpful.
I can confirm the cruise switch is the only thing missing and it works as intended when the switch is added.
I have also added the side mirrors & front work lights.
Mike also sent me the flip forward seat switch and rear worklight switch. I'll update when I add them.

  • Like
Reactions: 1 users

Bmyers

Well-known member
Lifetime Member

Equipment
Grand L3560 with LA805 loader, EA 55" Wicked Grapple, SBX72 BB, LP 1272 mower
May 27, 2019
3,151
3,628
113
Southern Illinois
Sounds like you are getting that machine customized nicely. I'm thinking about adding a rear wiper to mine, just haven't taken the time to check into the cost.


iunderpressure

New member

Equipment
L3560 Limited Edition
May 29, 2020
19
1
3
English, Indiana
Thank your for this very helpful information. I plan on getting cruise for mine.

How do you like the work lights? Were they easy to hook up? How bright are they?

Thanks


DVR

Active member
Premium Member

Equipment
Kubota MX5400, L3560LE, L3301
May 8, 2020
108
64
28
Columbia, SC
Thank your for this very helpful information. I plan on getting cruise for mine.

How do you like the work lights? Were they easy to hook up? How bright are they?

Thanks
Glad it helped.

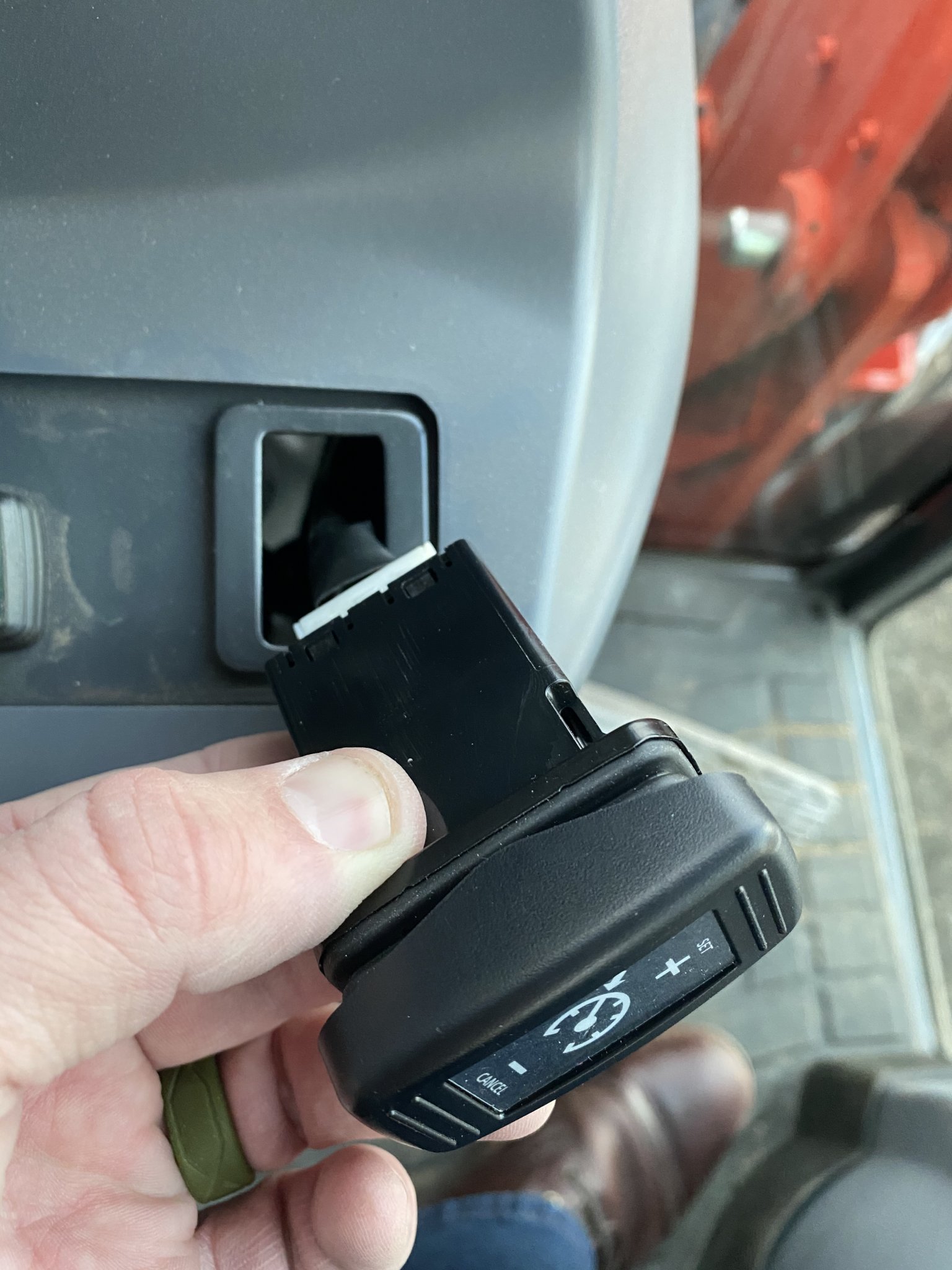

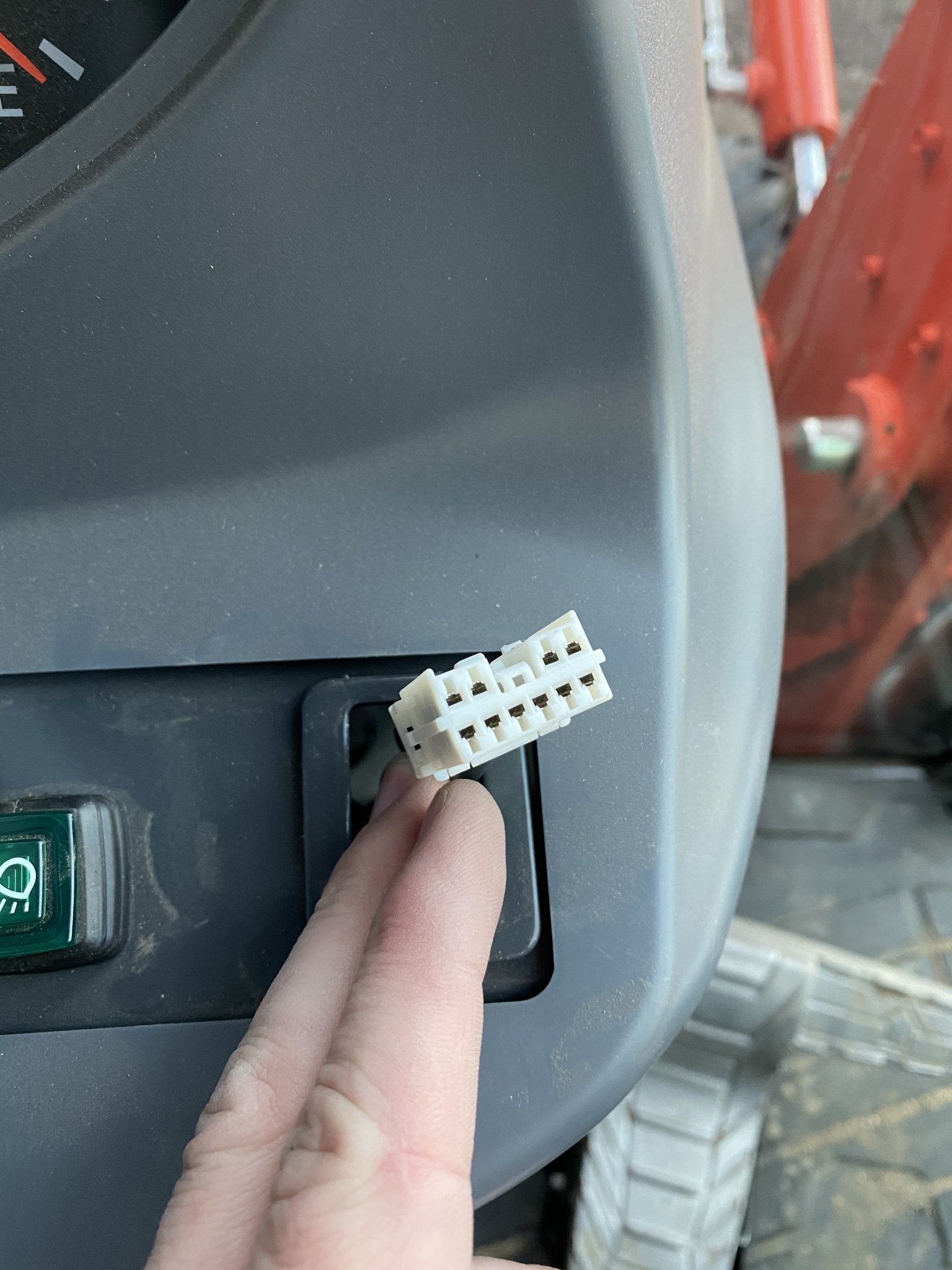

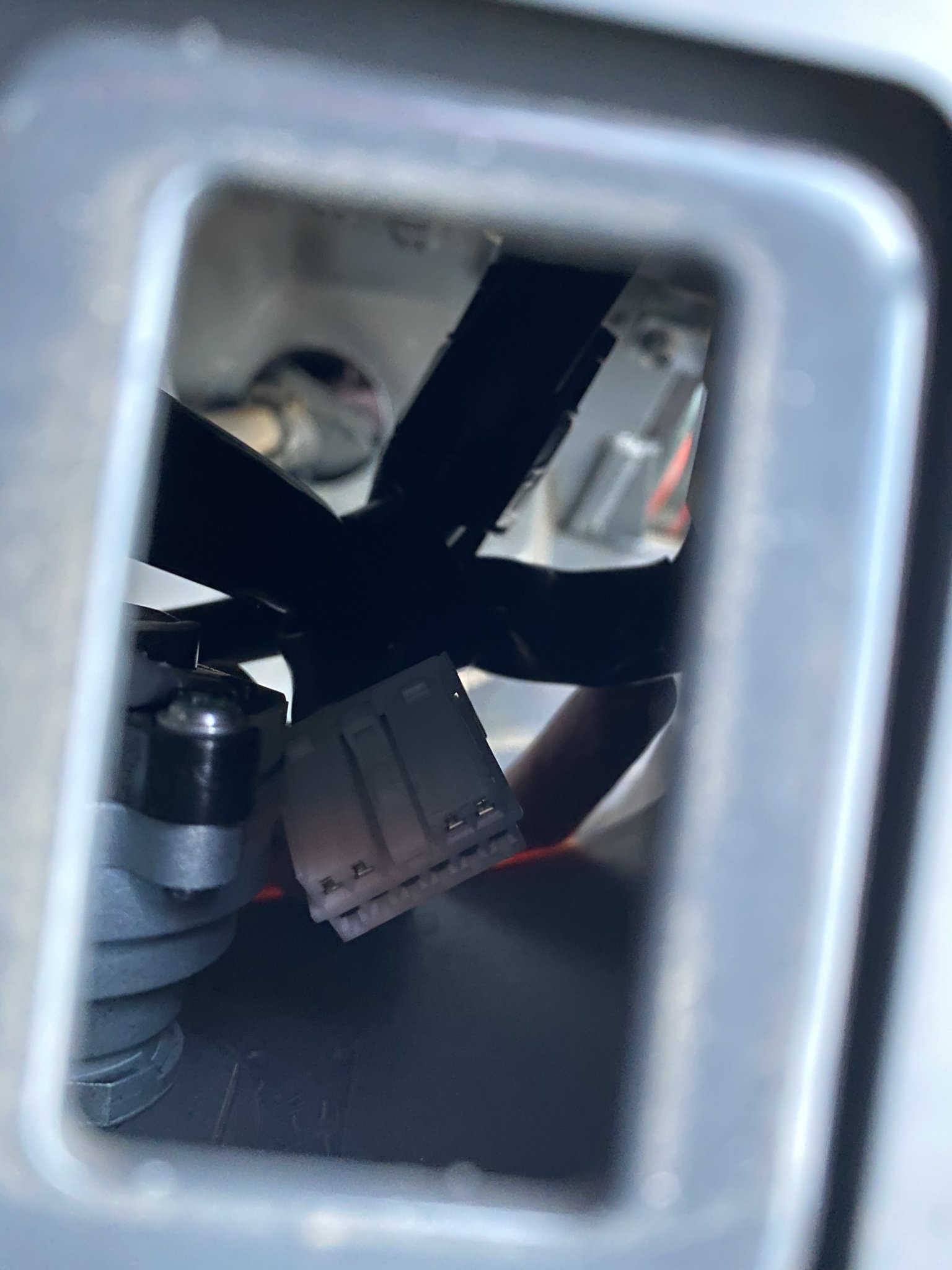

The harness was tied to another harness (with a reusable tie) just below the switch location. The plug was white IIRC and was the only unused plug in the area. I was able to push out the block off plate from underneath w/o removing any trim panels. I pushed the plug through the hole, snapped it in the switch and pushed the switch in place. All w/o any tools.
It was well worth the money.

Work lights are factory p/n for the regular 3560. They are not bad. They are bright enough for me. Could be brighter but I find them adequate. I do very little work at night with my tractor. There is mesh over my grill guard and I have a FEL. So, my lighting has room for improvement. Problem is I hit a few branches on the edges of my food plots. My oprions for improvement are limited.
I negotiated the mirrors and work lights into the purchase. They were installed by the dealer.
Switch and harness were in place. They were reportedly a simple install. Which has been confirmed by other 3560LE owners.


mrwrenchman

New member

Equipment
L3560LE
Mar 2, 2014
12
8
3
Loris SC
The C/C switch is not cheap but well worth it . I have 4 acres of grass to cut , push the button and just steer , great .


Proflyer

New member

Equipment
L3560 LE
Jan 29, 2021
2
3
3
Elizabeth, CO

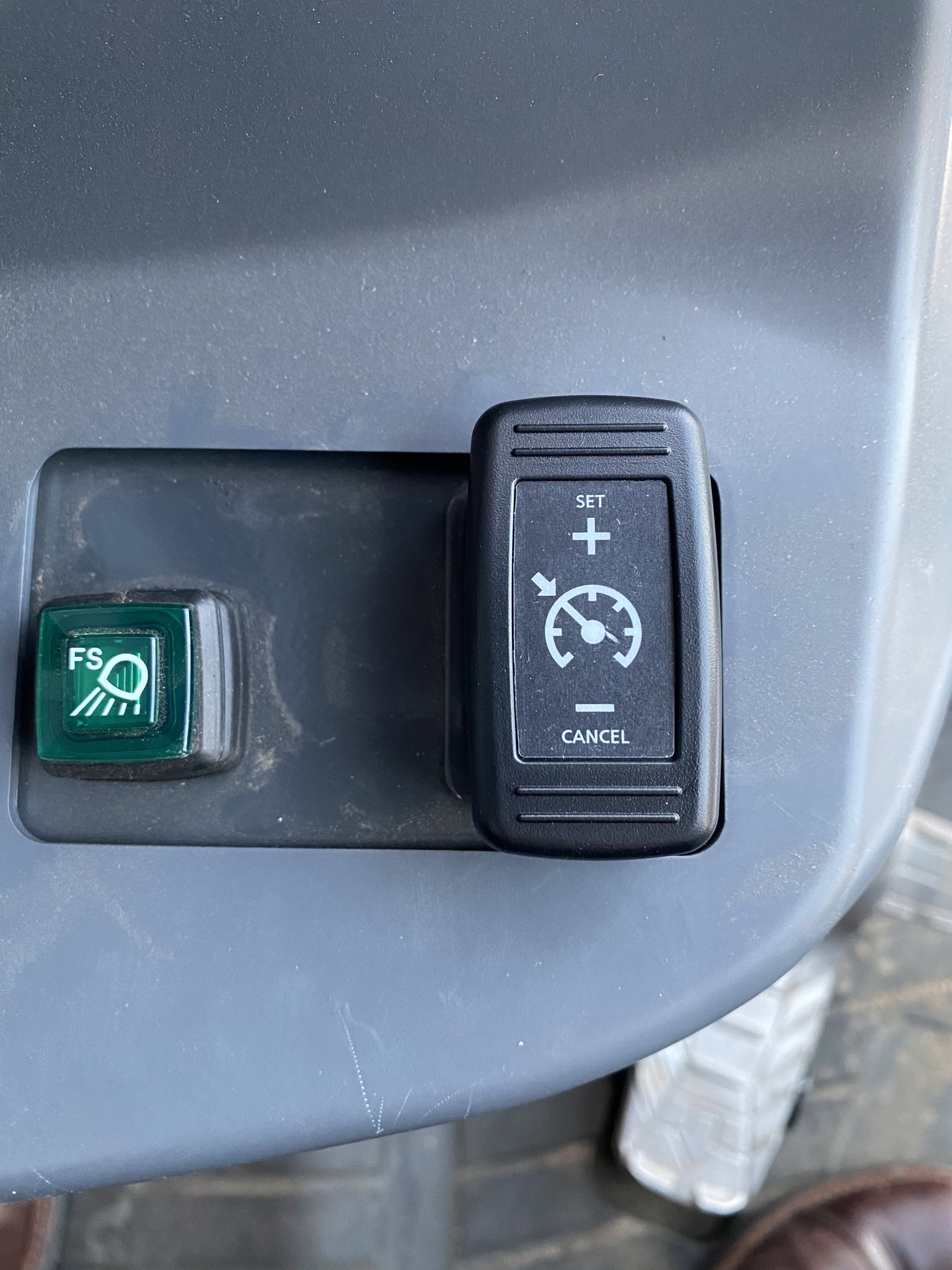

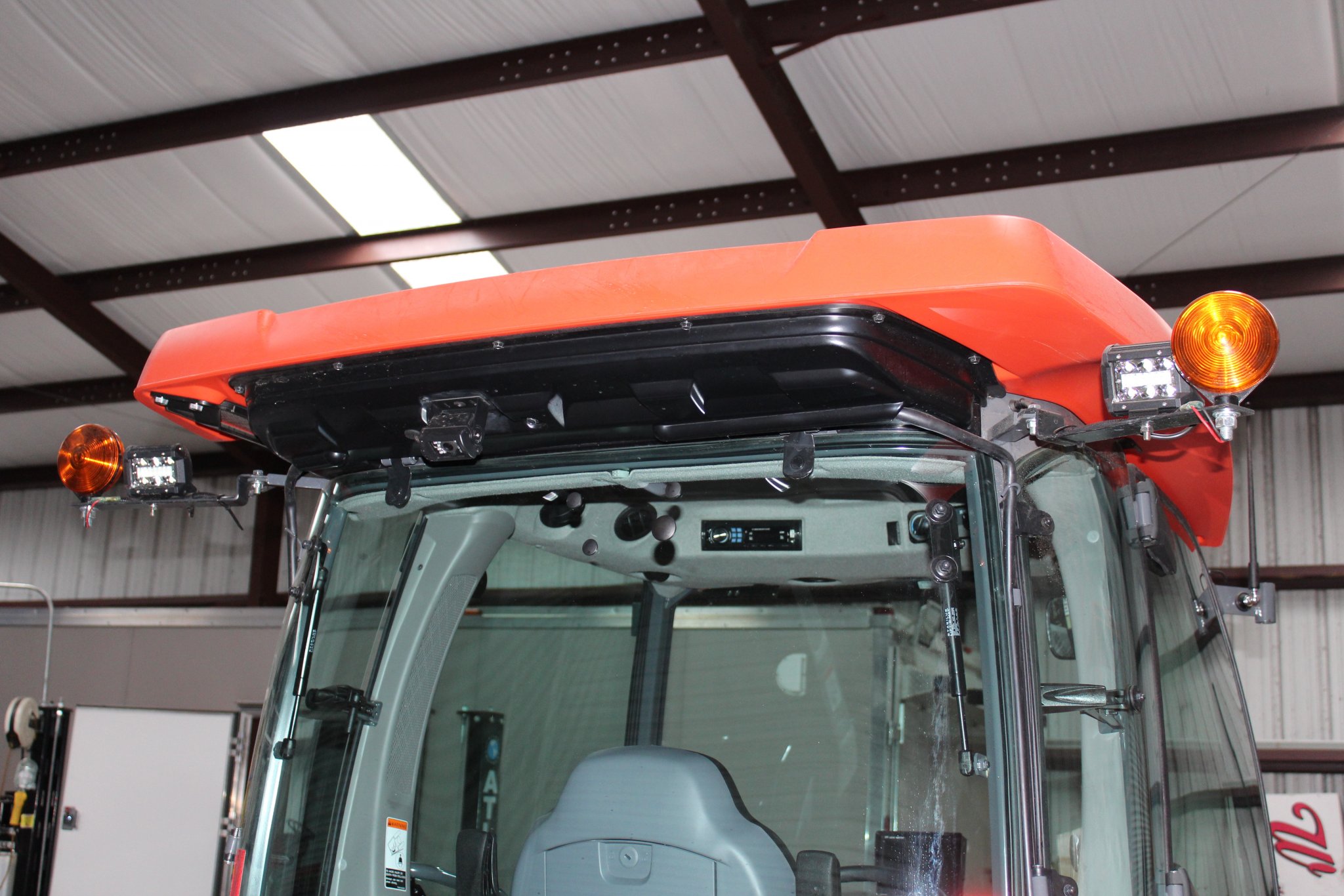

OP thanks for the tip! Got my switch yesterday and installed it in about 3 minutes. Few pics for everyone attached. Dealer couldn’t believe it as Kubota told them it wasn’t an option. I’ve added mirrors, LED work lights (front and rear), and rear wiper and saved a bundle compared to an non-LE unit.

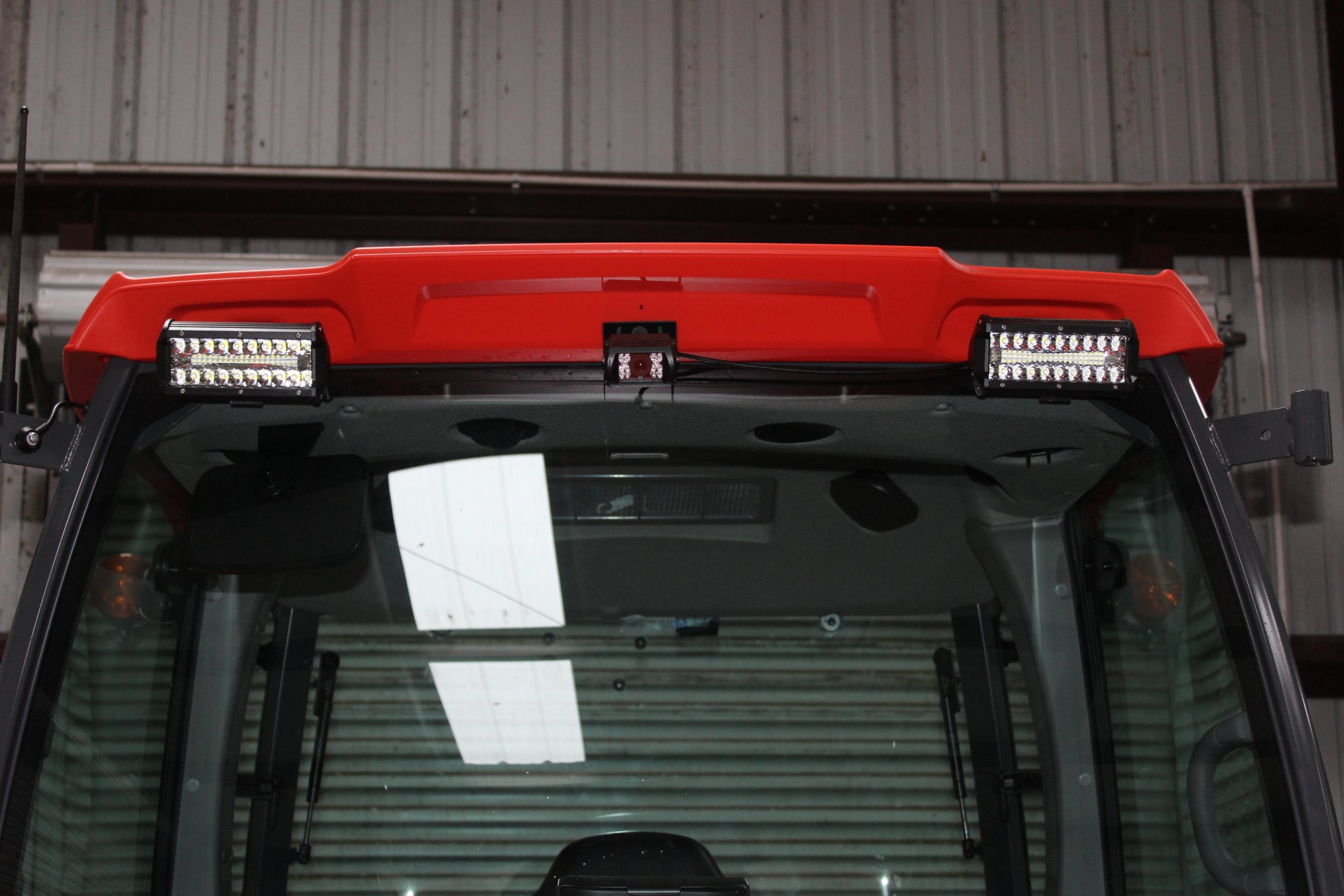

got the work lights on amazon, they’re the 8” bars and are really bright. Wiring is all there, just have to find the plugs and get the switches.

  • Like
Reactions: 1 user

rockster

Member

Equipment
LE3560HST; LA555 Loader; 6’ Finish Mower; Grapple & Forks
Sep 15, 2021
31
12
8
74
Inverness; Florida
OP thanks for the tip! Got my switch yesterday and installed it in about 3 minutes. Few pics for everyone attached. Dealer couldn’t believe it as Kubota told them it wasn’t an option. I’ve added mirrors, LED work lights (front and rear), and rear wiper and saved a bundle compared to an non-LE unit.

got the work lights on amazon, they’re the 8” bars and are really bright. Wiring is all there, just have to find the plugs and get the switches. View attachment 54062 View attachment 54063 View attachment 54064 View attachment 54065

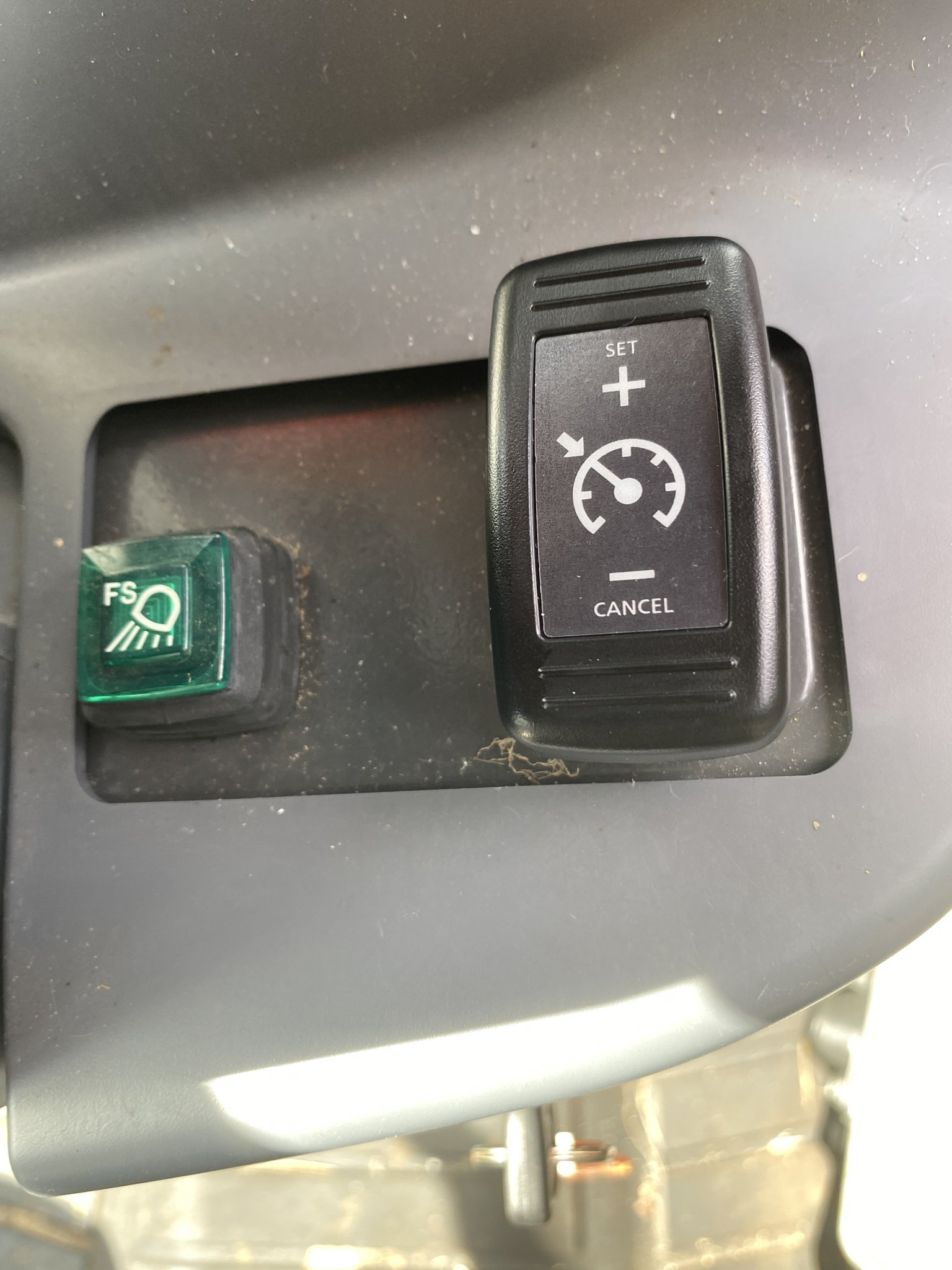

Well I installed the cruise control switch. Took about two minutes. Switch is a little pricey but worth the $$. Works GREAT!!! 👍


rockster

Member

Equipment
LE3560HST; LA555 Loader; 6’ Finish Mower; Grapple & Forks
Sep 15, 2021
31
12
8
74
Inverness; Florida
Finely got t to install the cruse control switch. Easy install. Took only a few minutes. Works Great.


Bleach

New member

Equipment
L3560
Jun 19, 2023
1
0
1
Michigan
Everybody probably knows what a great deal the L3560LE is by now.
I have one, love it and never thought the cruise control was a big deal (it's missing on the LE model).
Made a phone call to messicks and spoke to mike. He found the part number for the std 3560 cruise switch and sent it my way. kubota p/n td350-55210.
Today I easily located the factory harness, removed the block off plate in the dash and plugged in the cruse switch. Not only did it function perfectly, I found it very useful/helpful.
I can confirm the cruise switch is the only thing missing and it works as intended when the switch is added.
I have also added the side mirrors & front work lights.
Mike also sent me the flip forward seat switch and rear worklight switch. I'll update when I add them.
Just added the switch to my new l3560 limited that I bought Friday 06/16/23 and I now have cruise control. Thank you for the post


DVR

Active member
Premium Member

Equipment
Kubota MX5400, L3560LE, L3301
May 8, 2020
108
64
28
Columbia, SC
Just added the switch to my new l3560 limited that I bought Friday 06/16/23 and I now have cruise control. Thank you for the post
Glad it worked for you. Enjoy!
I just installed the seat switch and rear work light switch yesterday... the ones I ordered 3.5yrs ago.


Rockabye74

New member

Equipment
L3560 HST-LE
Oct 12, 2023
2
3
3
Montross, Va

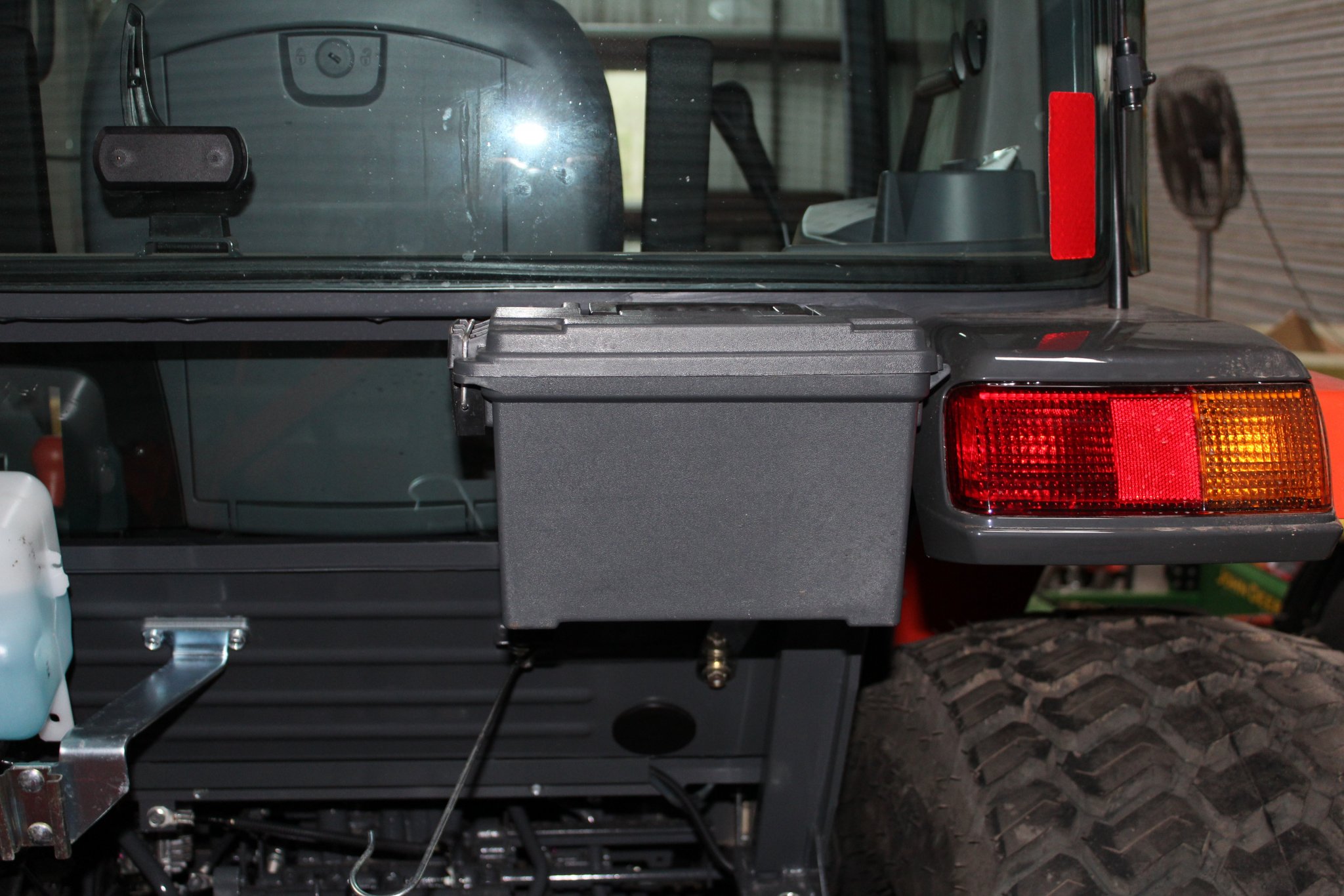

I just ordered my cruise control switch today, and wanted to show the tool box that I will be mounting on my tractor. I had originally purchased this box to keep tools dry on my boat, but have now re-purposed it for the Kubota. Gotta love the fact that it is nearly a perfect match for the Kubota Orange.
