Kubota L 35

SonofOrange

Member

Equipment
L245F with 1200 loader, T1870, AT70, GL-5500(S)
Sep 1, 2021
101
7
18
Monroe, GA
We should take measurements to make sure these are the same as yours. I can do that tomorrow. I can box it up and see what it would cost to ship UPS. I'd like to get $200 plus shipping for it.


SonofOrange

Member

Equipment
L245F with 1200 loader, T1870, AT70, GL-5500(S)
Sep 1, 2021
101
7
18
Monroe, GA

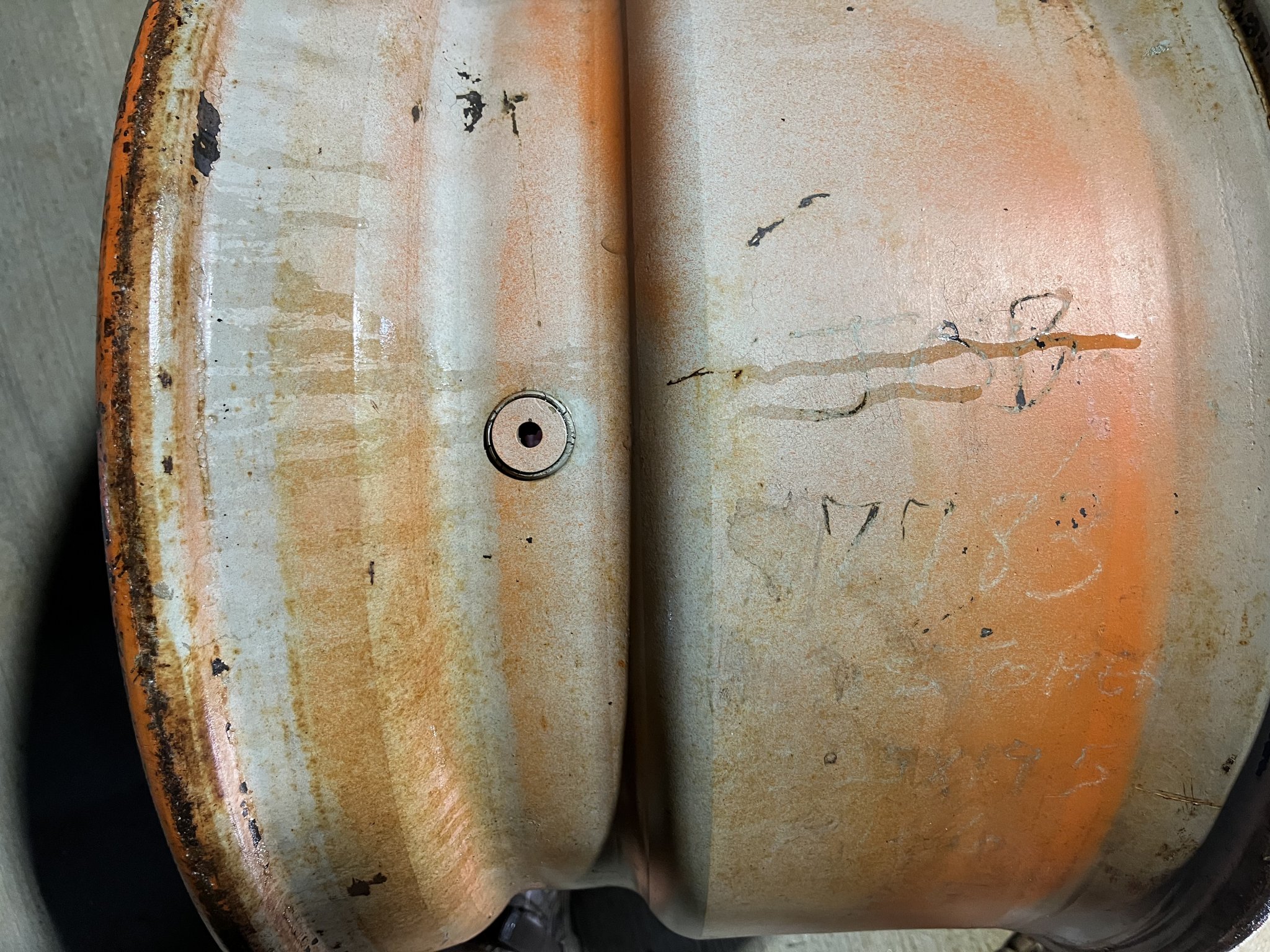

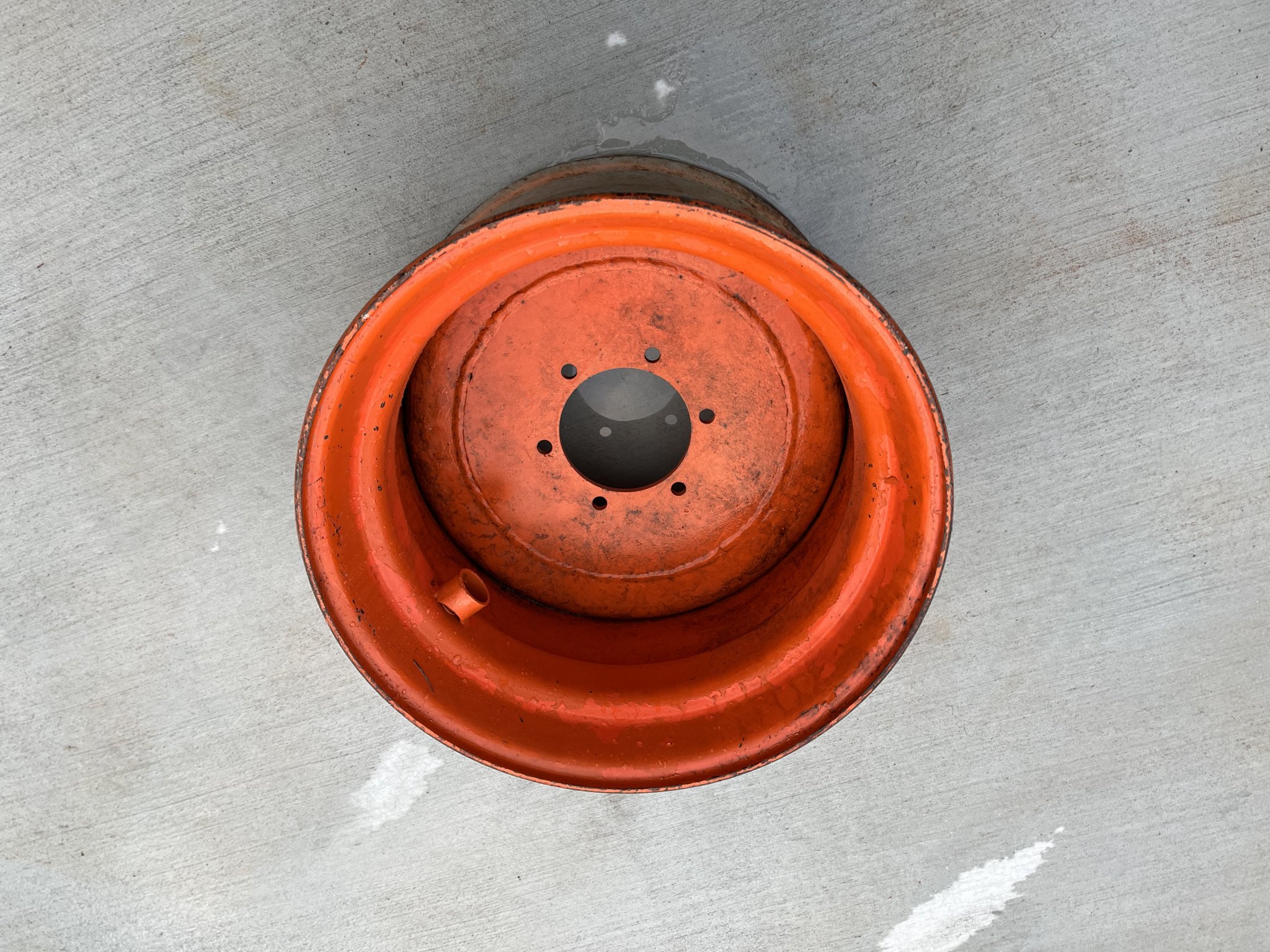

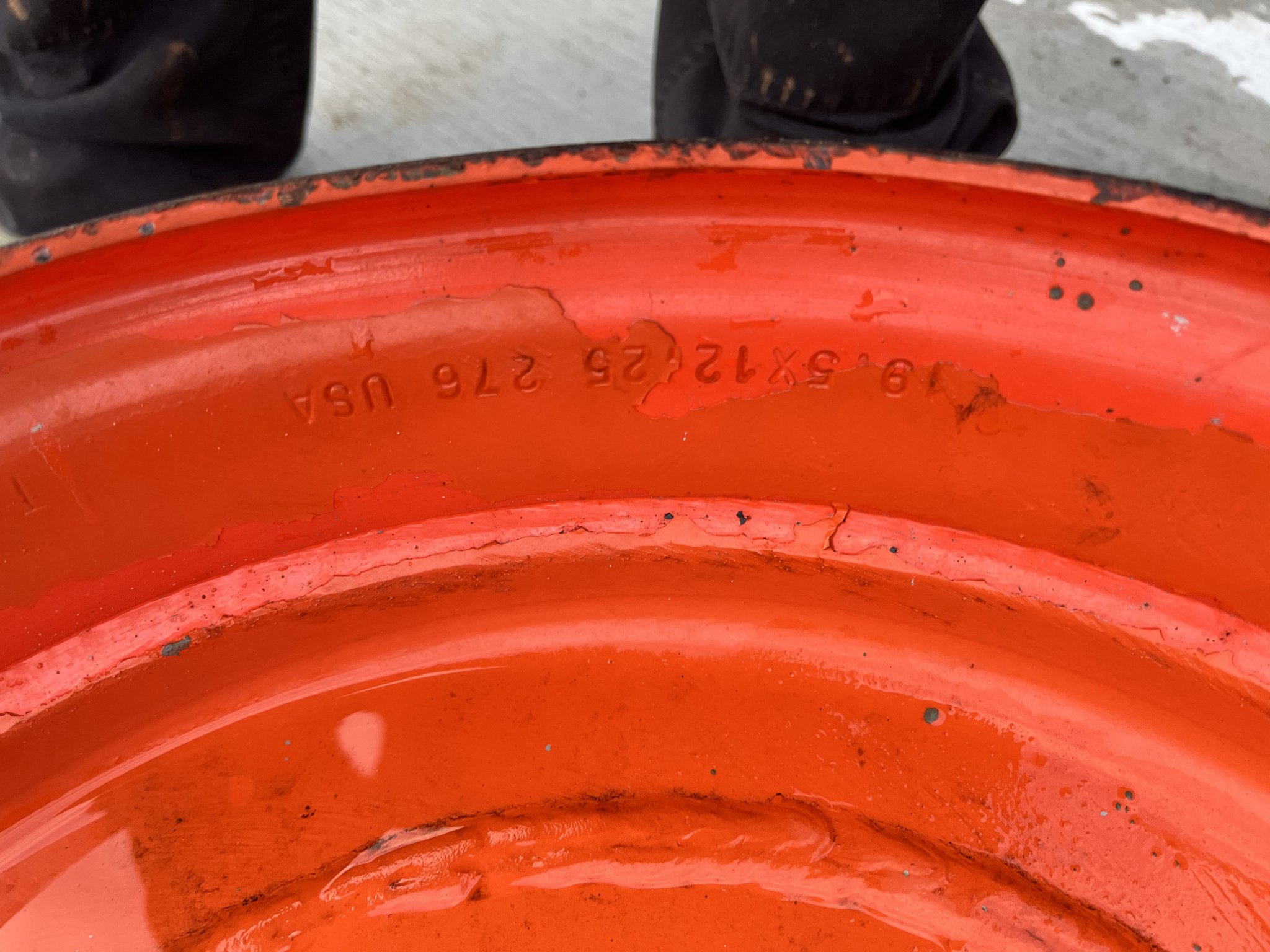

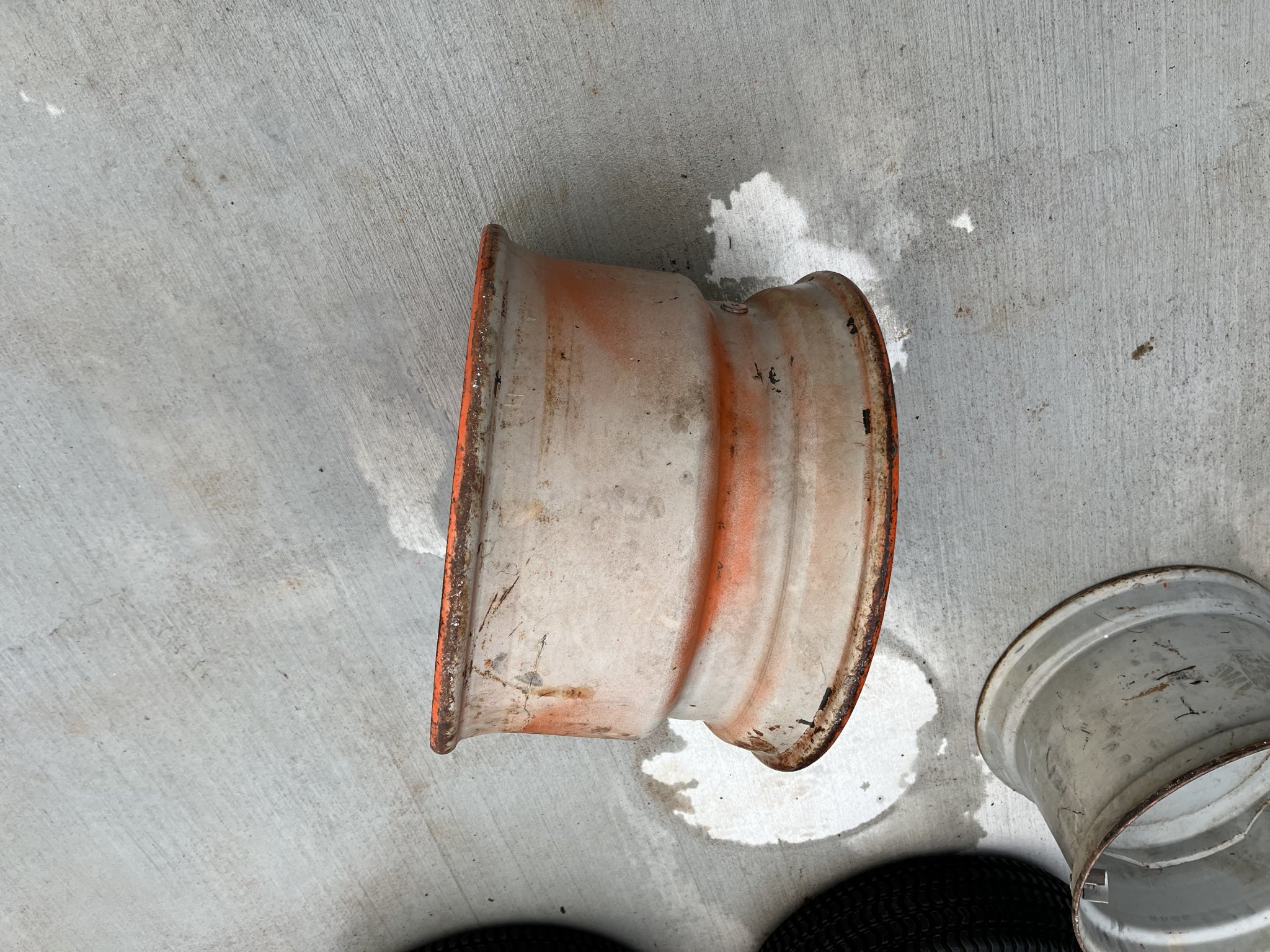

The measurements on the orange wheel are as follows.

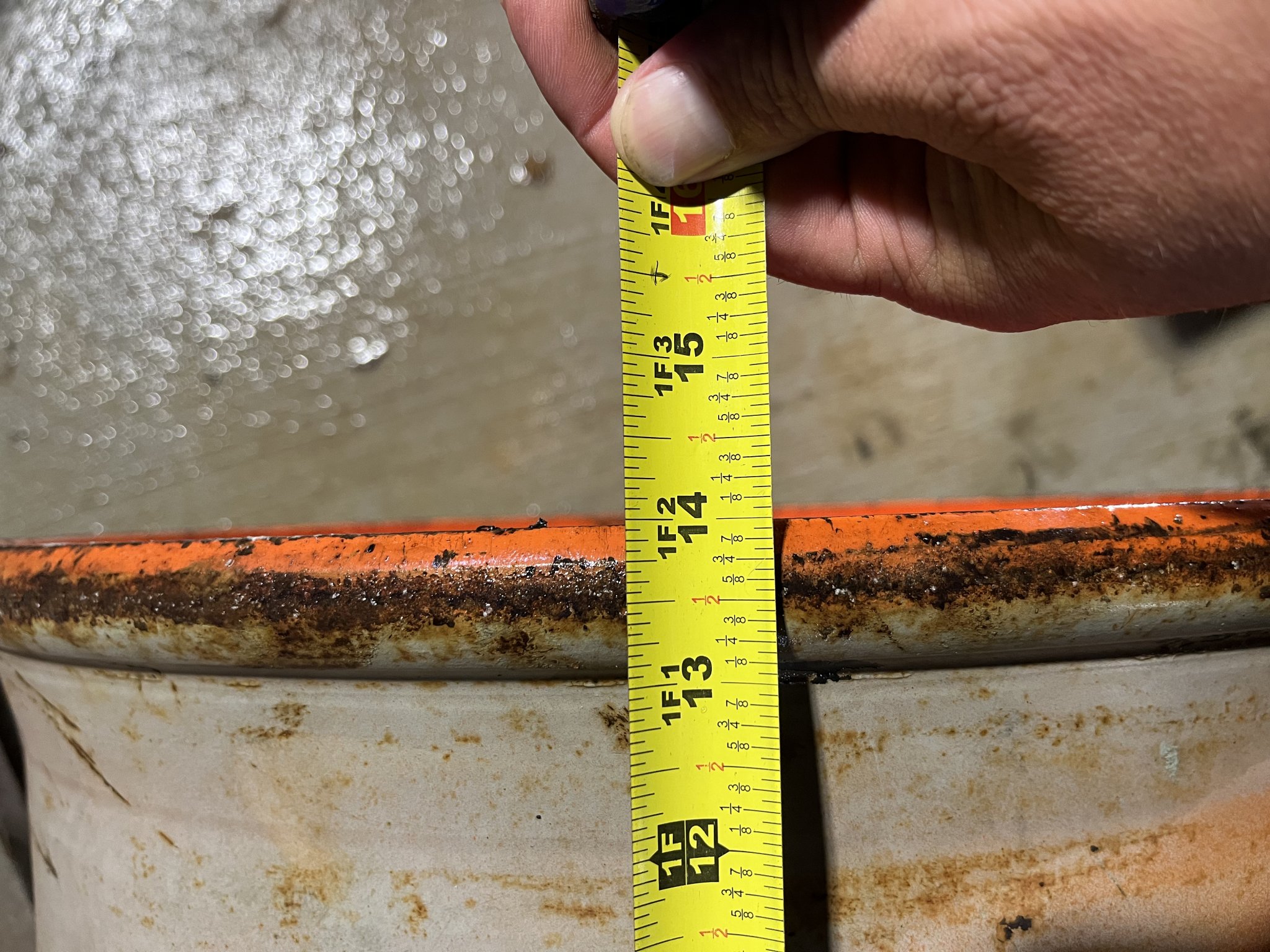

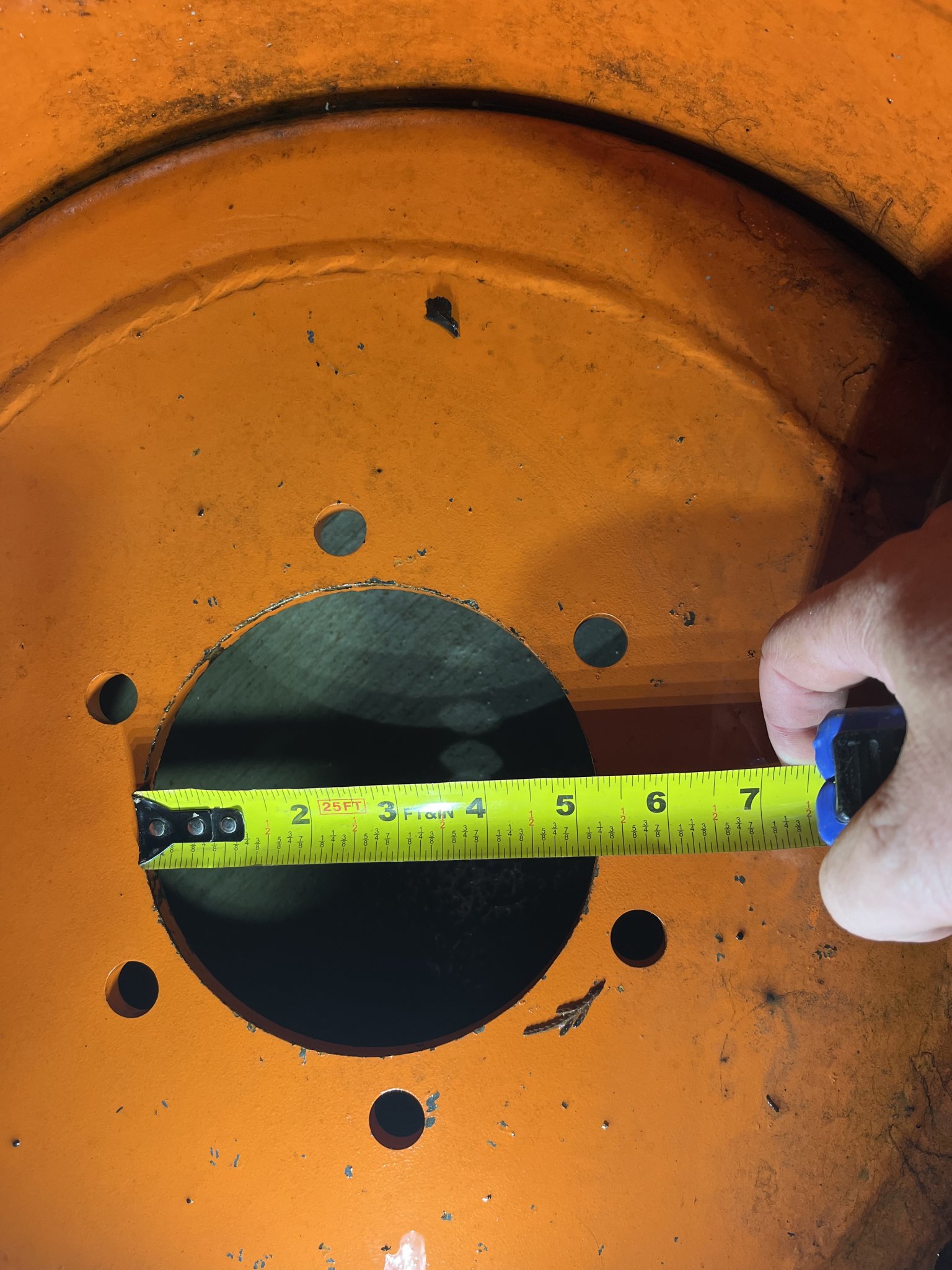

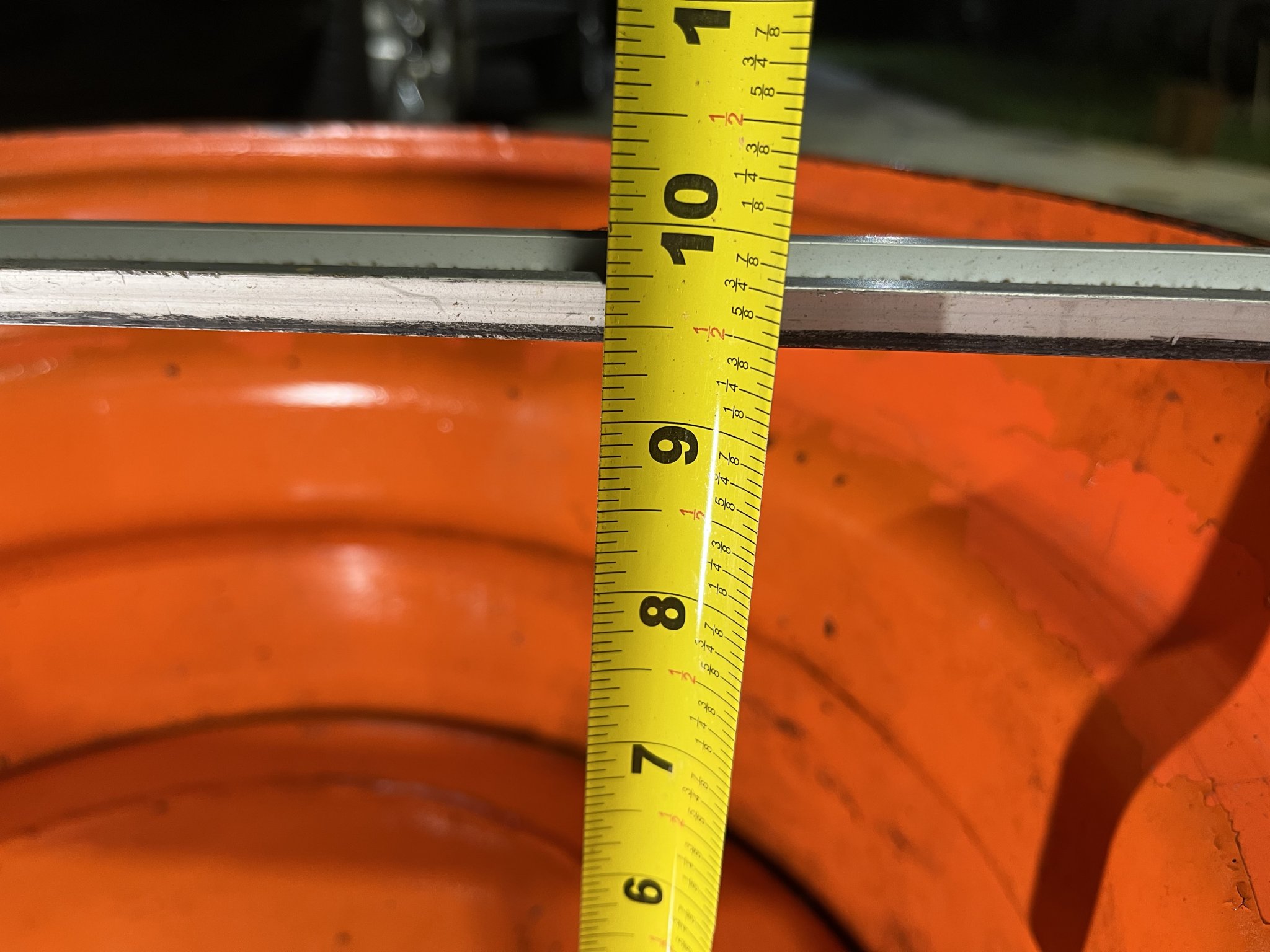

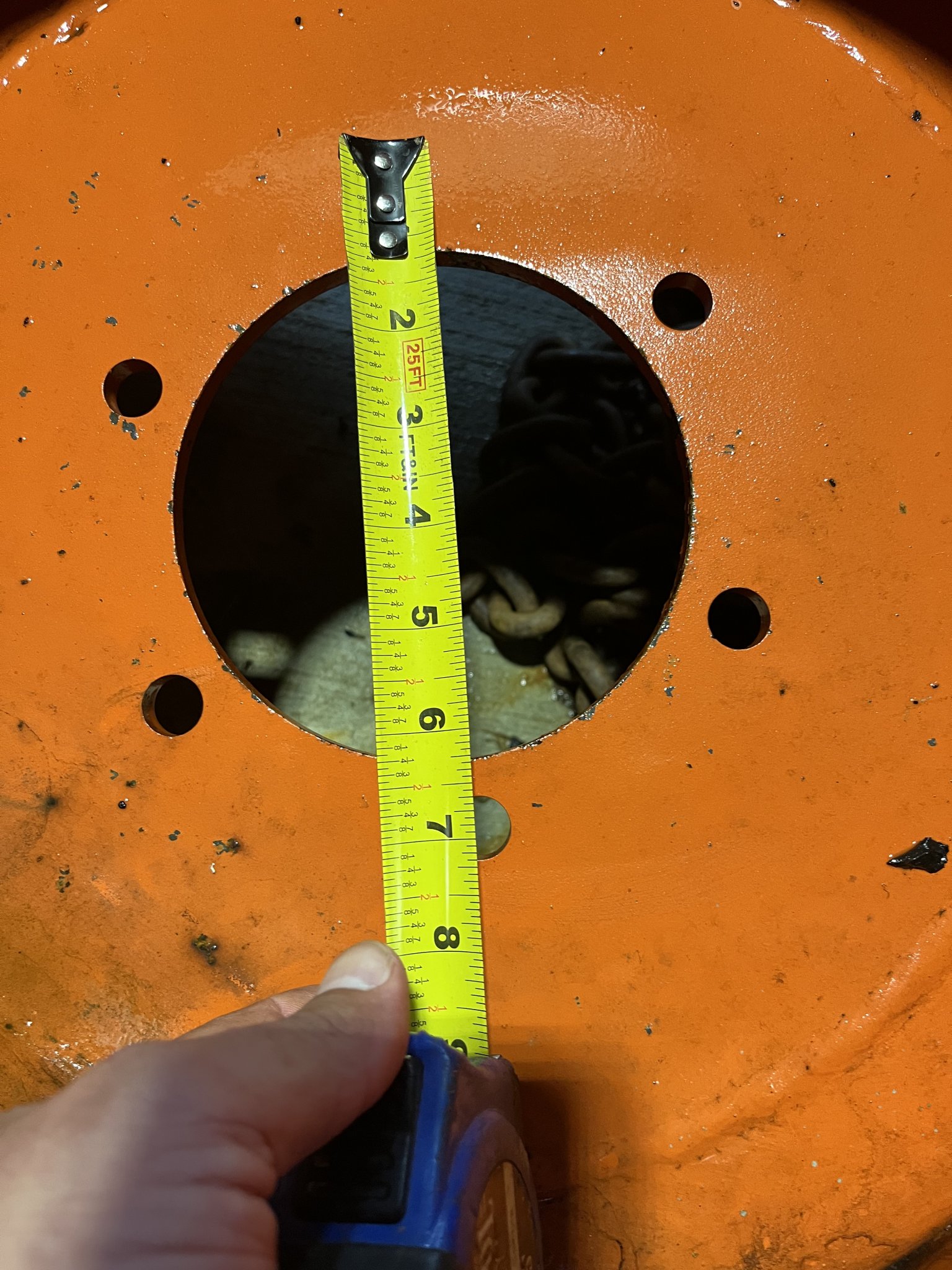

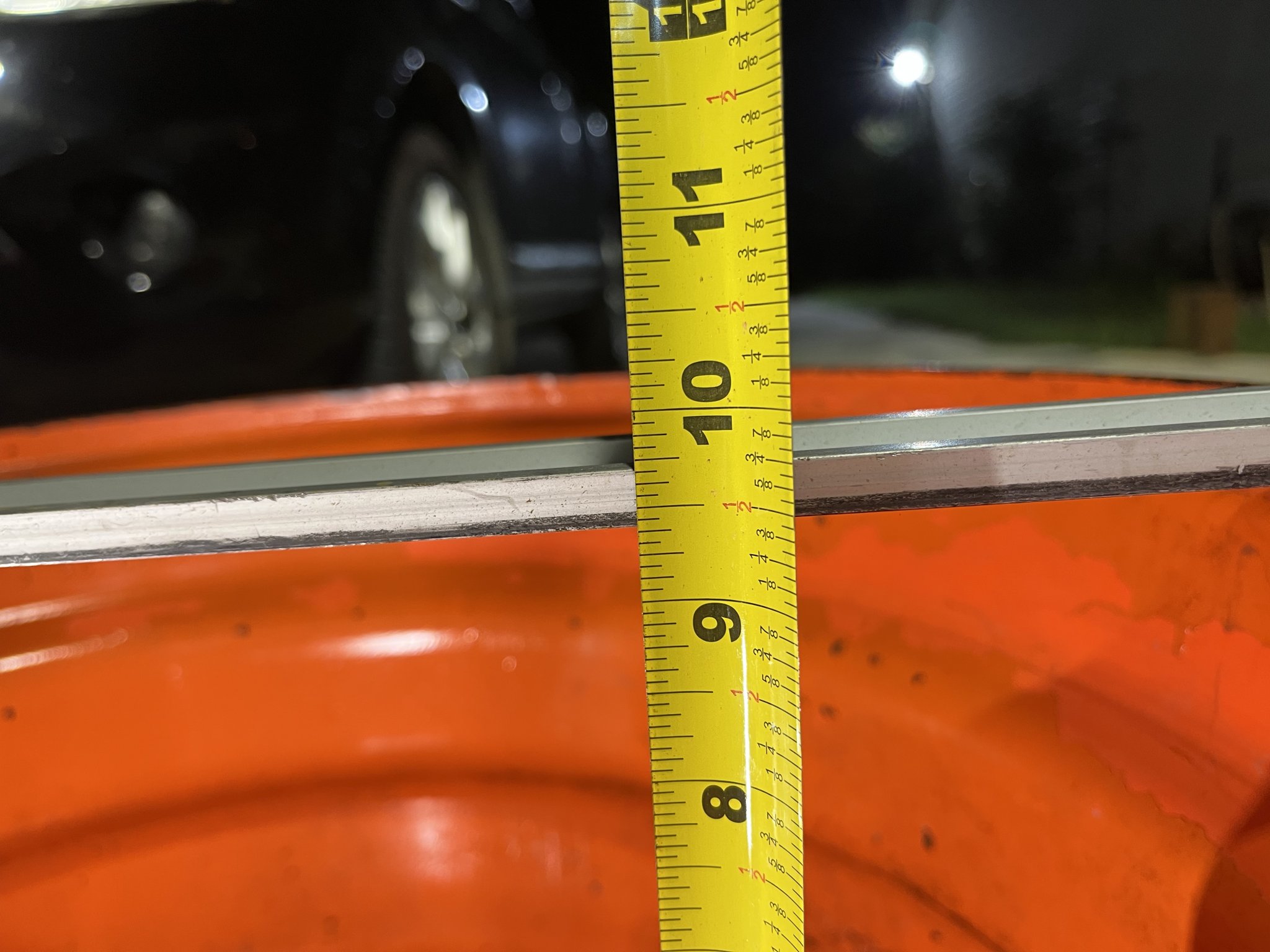

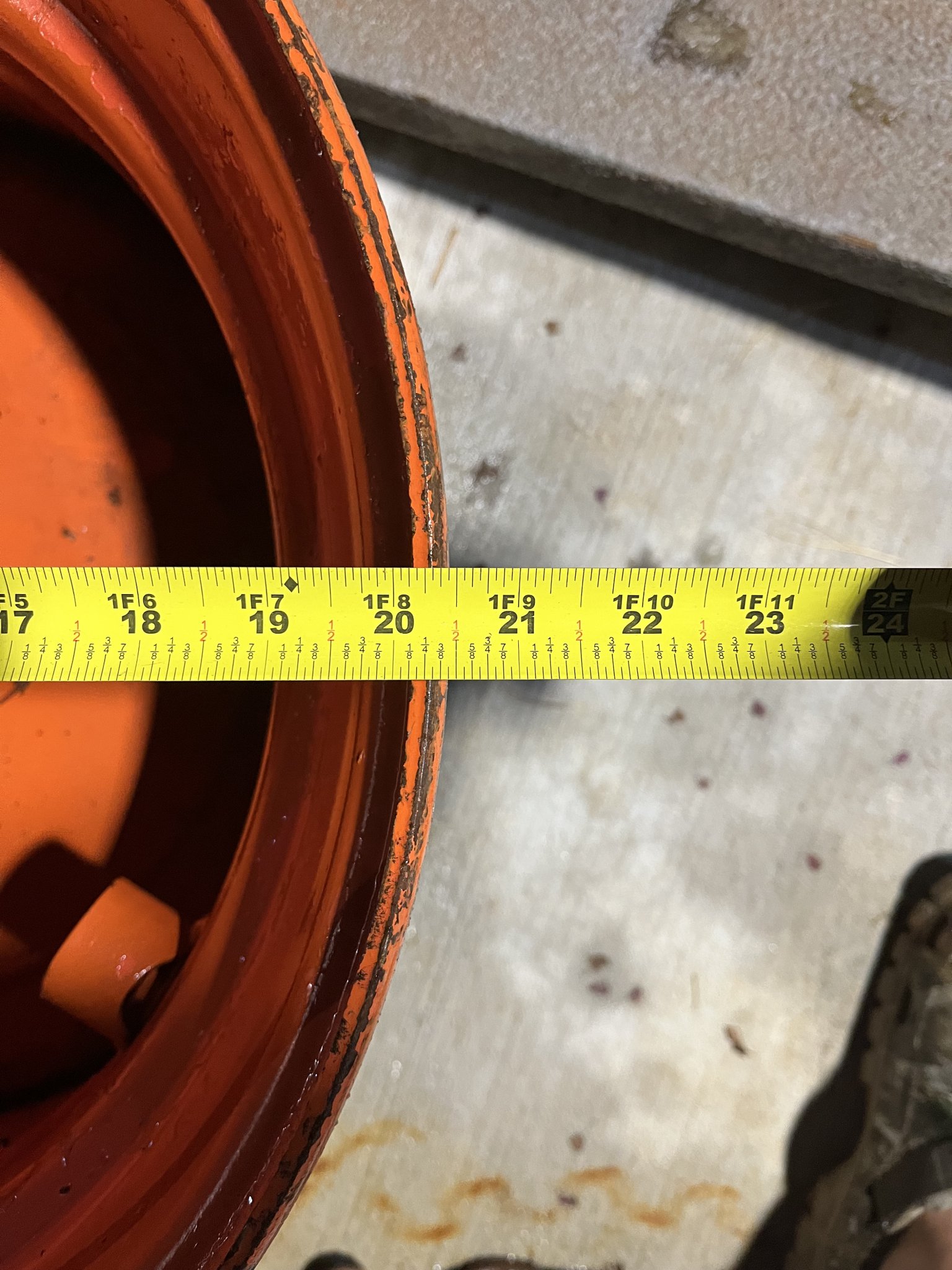

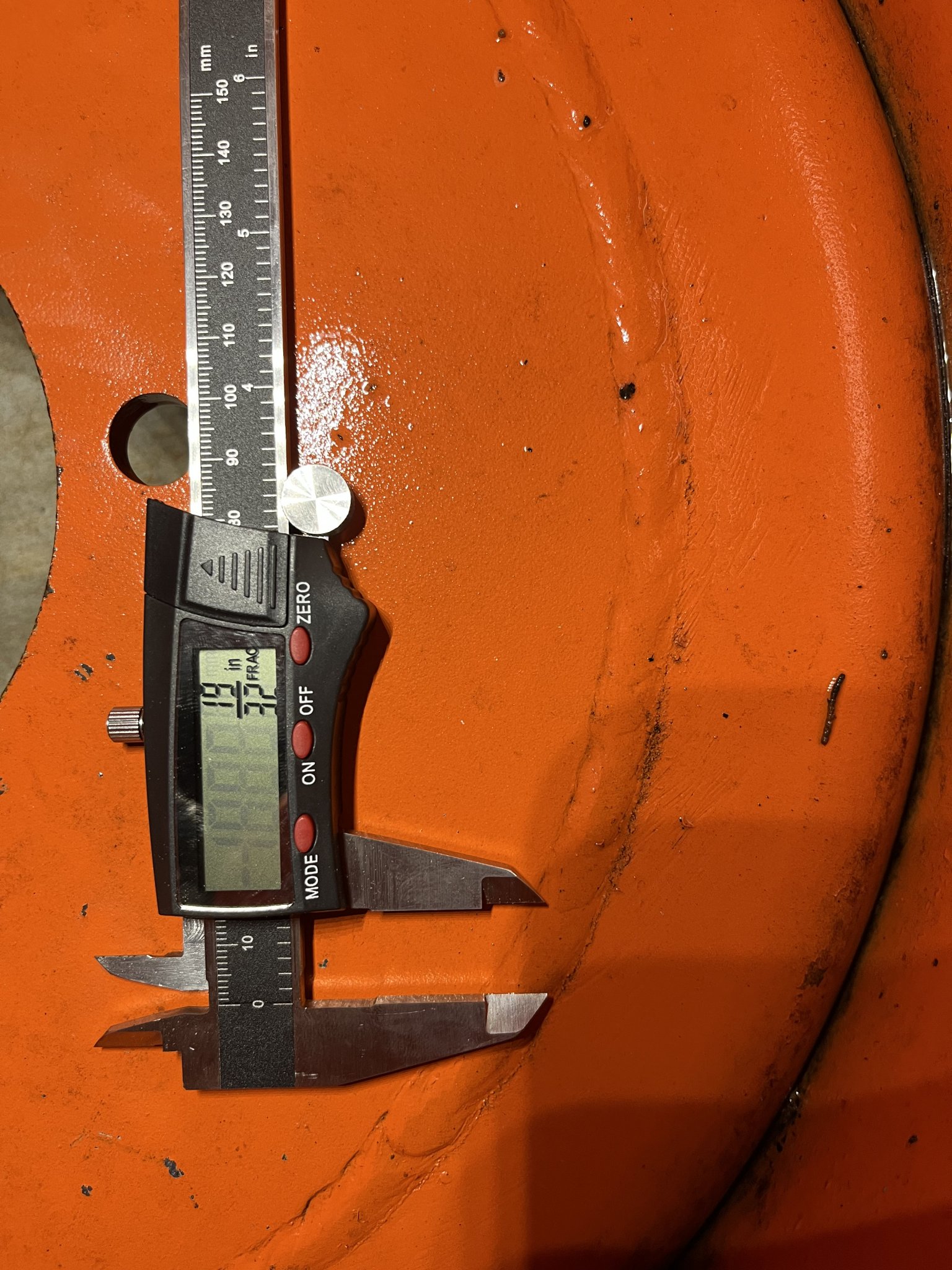

Overall width: 14", height: 20-1/2", depth to center hub from outside rim: 9-3/8", lug spacing: 6-5/8", center hub:5-1/2", lug hole: 19/32" and the center plate thickness in 3/8". It weighs 95 lbs.


Attachments

SonofOrange

Member

Equipment
L245F with 1200 loader, T1870, AT70, GL-5500(S)
Sep 1, 2021
101
7
18
Monroe, GA
The measurements on the orange wheel are as follows.
Overall width: 14", height: 20-1/2", depth to center hub from outside rim: 9-3/8", lug spacing: 6-5/8", center hub:5-1/2", lug hole: 19/32" and the center plate thickness in 3/8". It weighs 95 lbs.

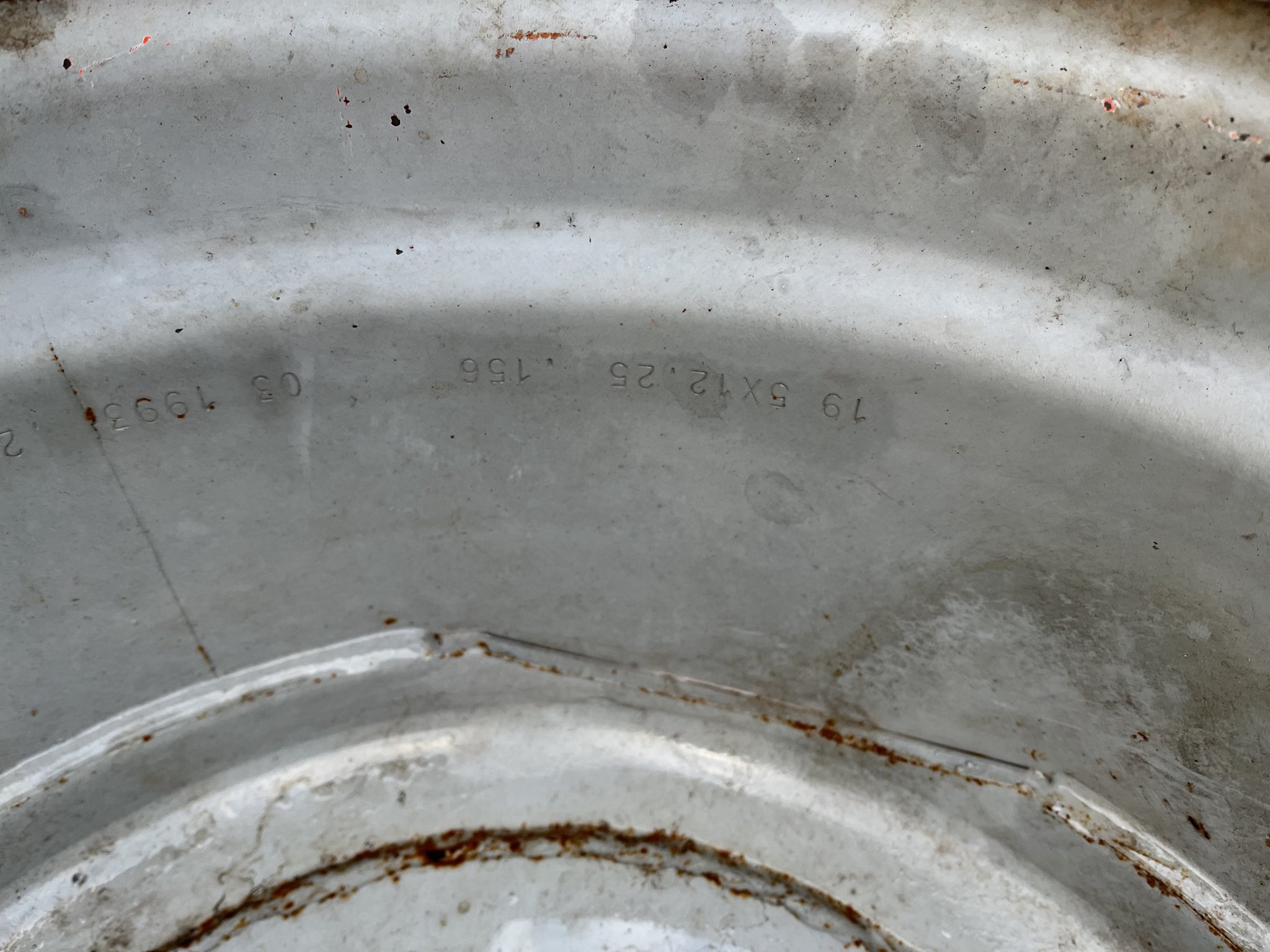

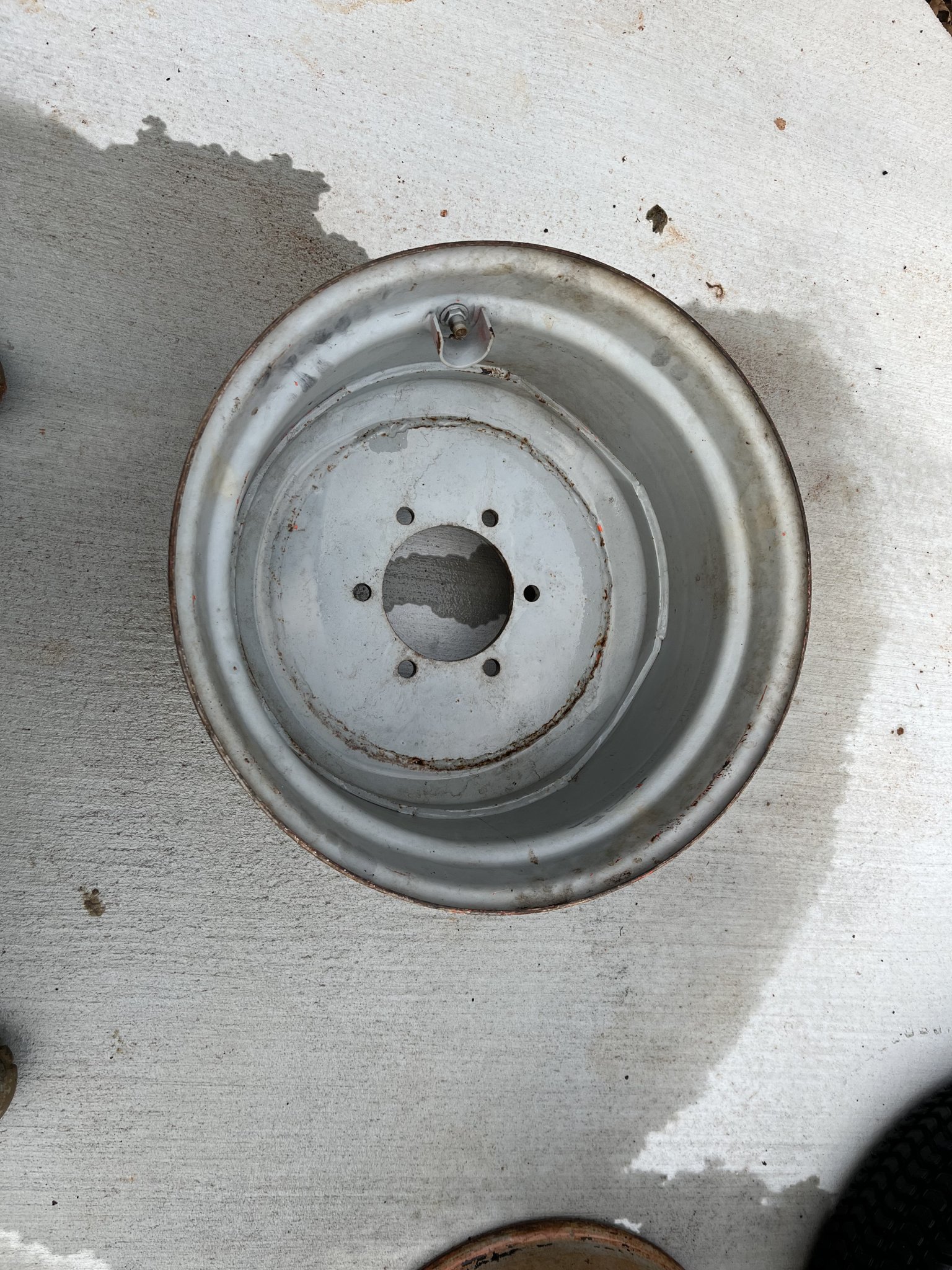

The gray one is as follows:

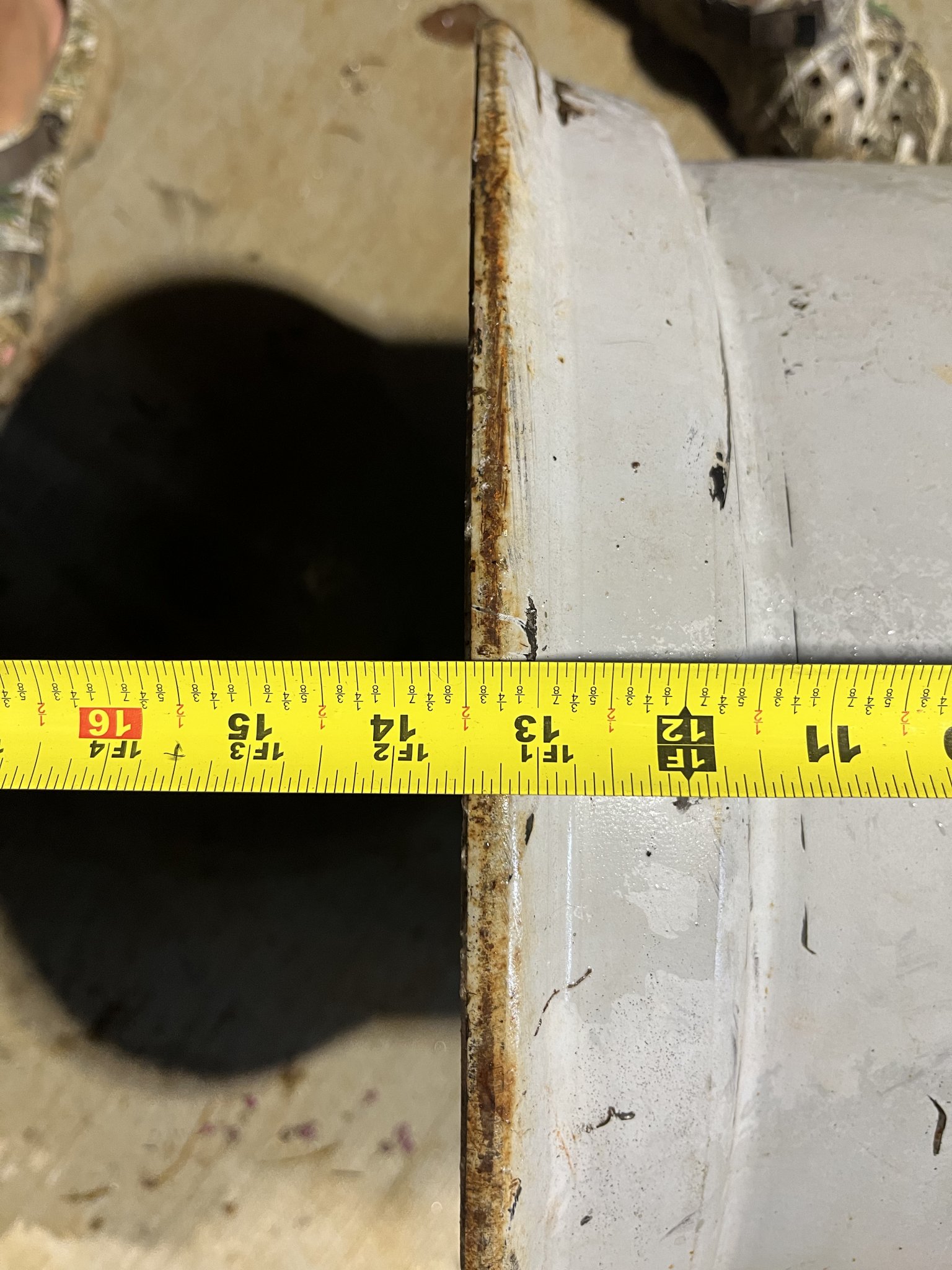

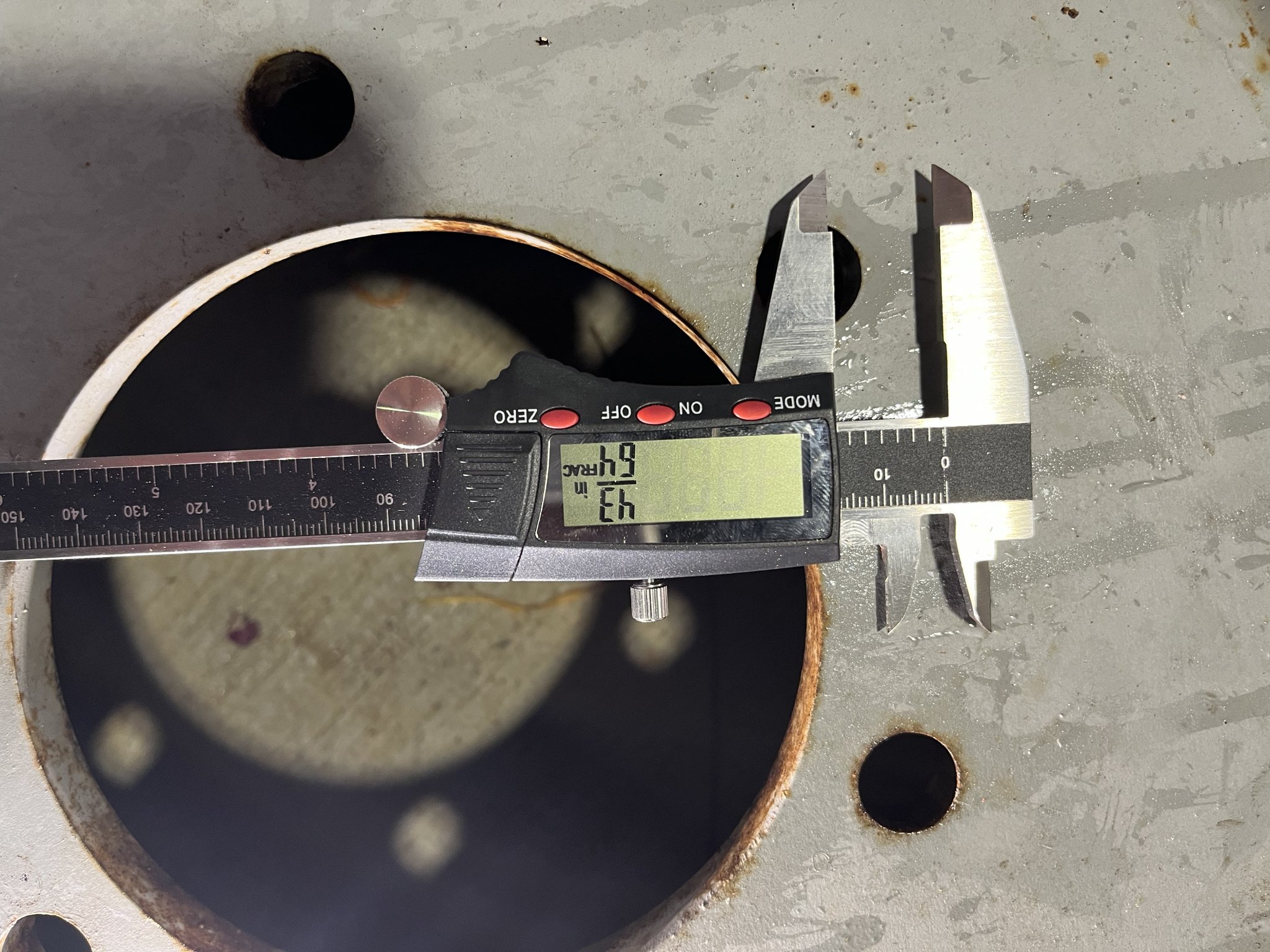

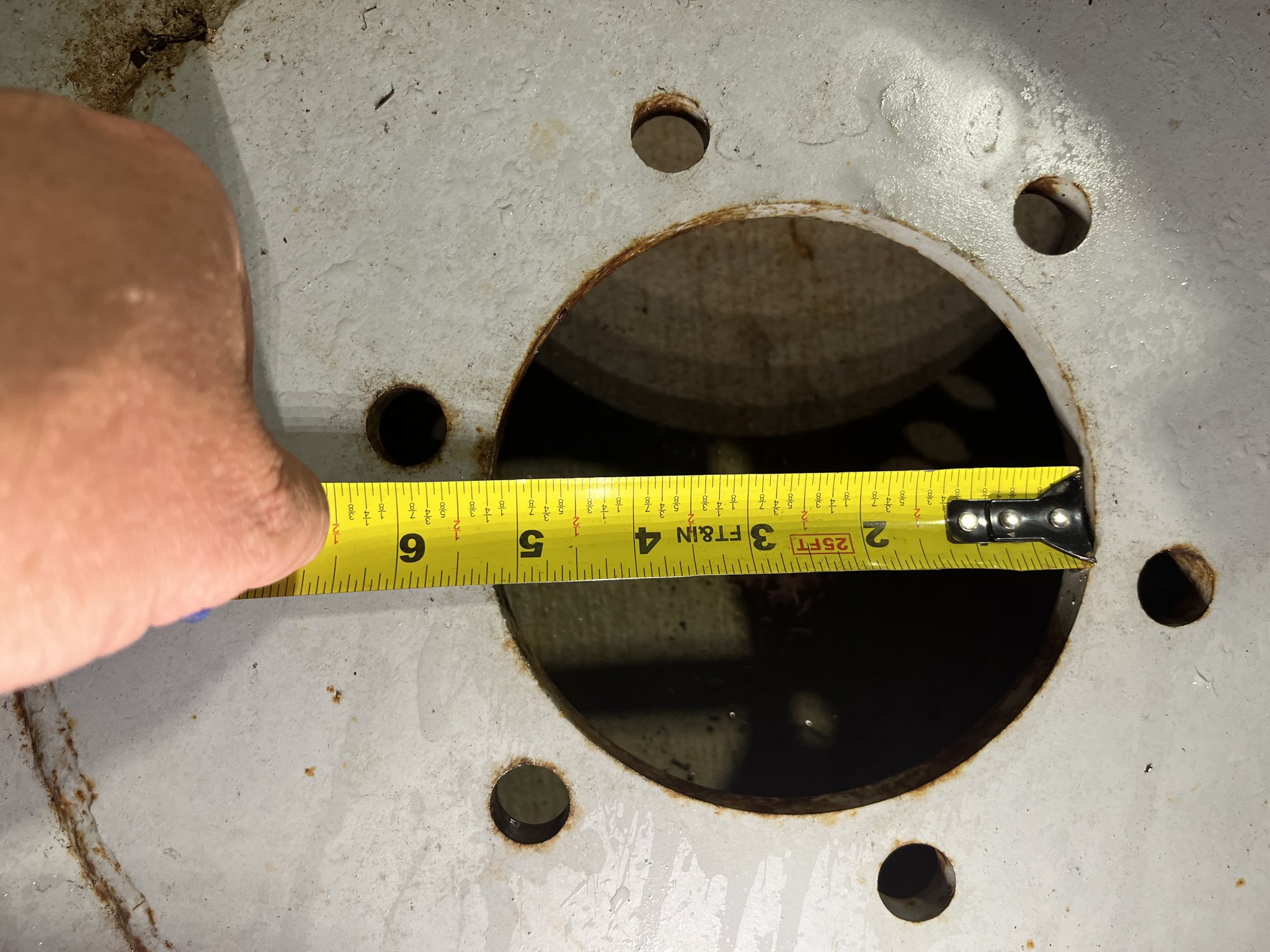

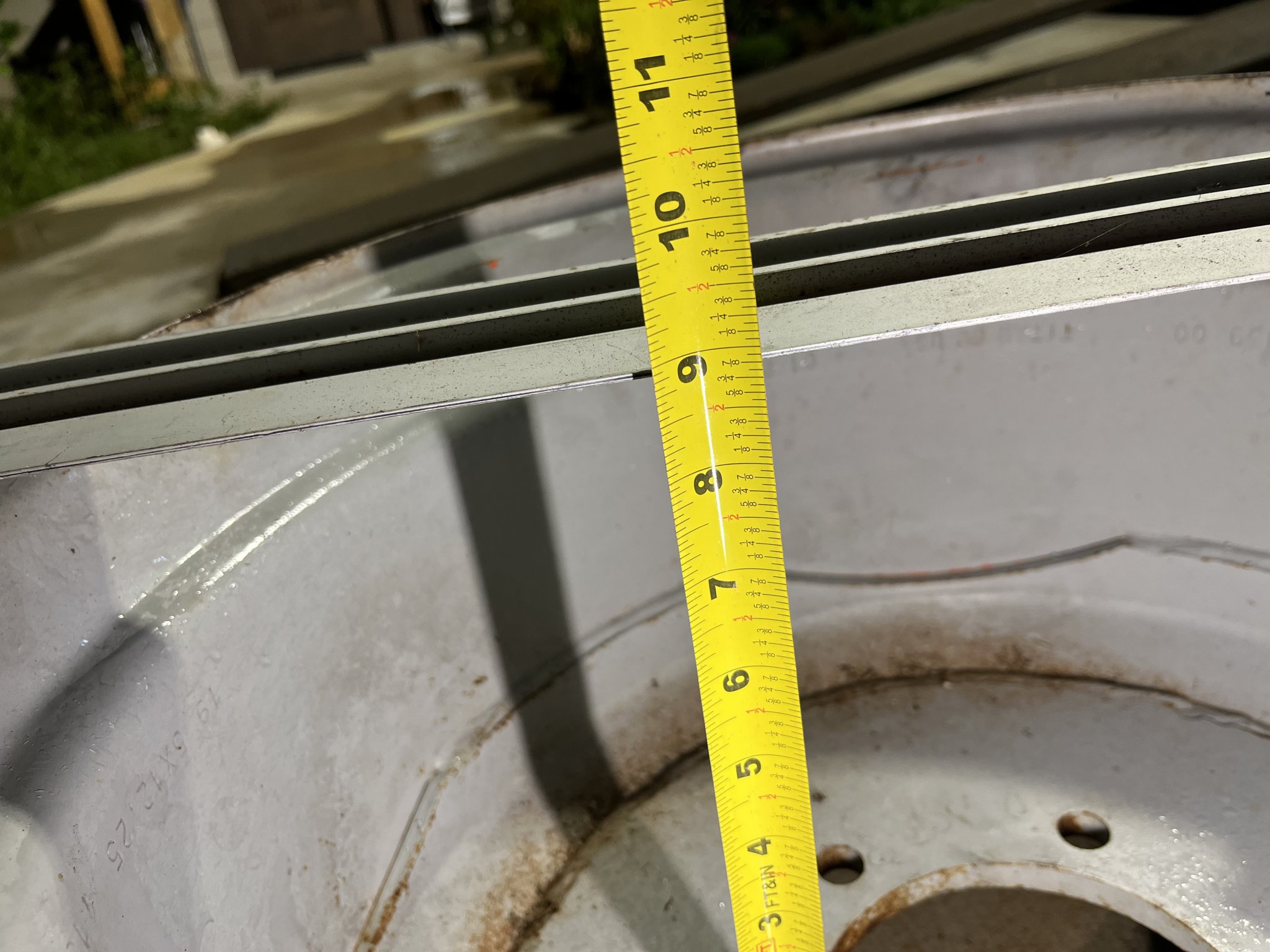

Overall width: 13-1/2" height: 20-1/2" depth to center hub from outside rim: 8-7/8" lug spacing: 6-7/8" center hub: 5-1/4" lug hole: 43/64" and the center plate thickness is 1/2". It weight 66.5 lbs.


Attachments

SonofOrange

Member

Equipment
L245F with 1200 loader, T1870, AT70, GL-5500(S)
Sep 1, 2021
101
7
18
Monroe, GA
Also, my zip is 14858
I'm in 30655, it looks like shipping UPS for the orange one is $164 and the gray one is $122. If you have access to a more economical shipping method, you can send me a shipping label and I can print it. My work has a dock if you wanted to put it on a pallet. But I don't think that is cheaper.


Al/Lindley

New member
Jan 26, 2013
22
0
1
Lindley New York
I'm in 30655, it looks like shipping UPS for the orange one is $164 and the gray one is $122. If you have access to a more economical shipping method, you can send me a shipping label and I can print it. My work has a dock if you wanted to put it on a pallet. But I don't think that is cheaper.

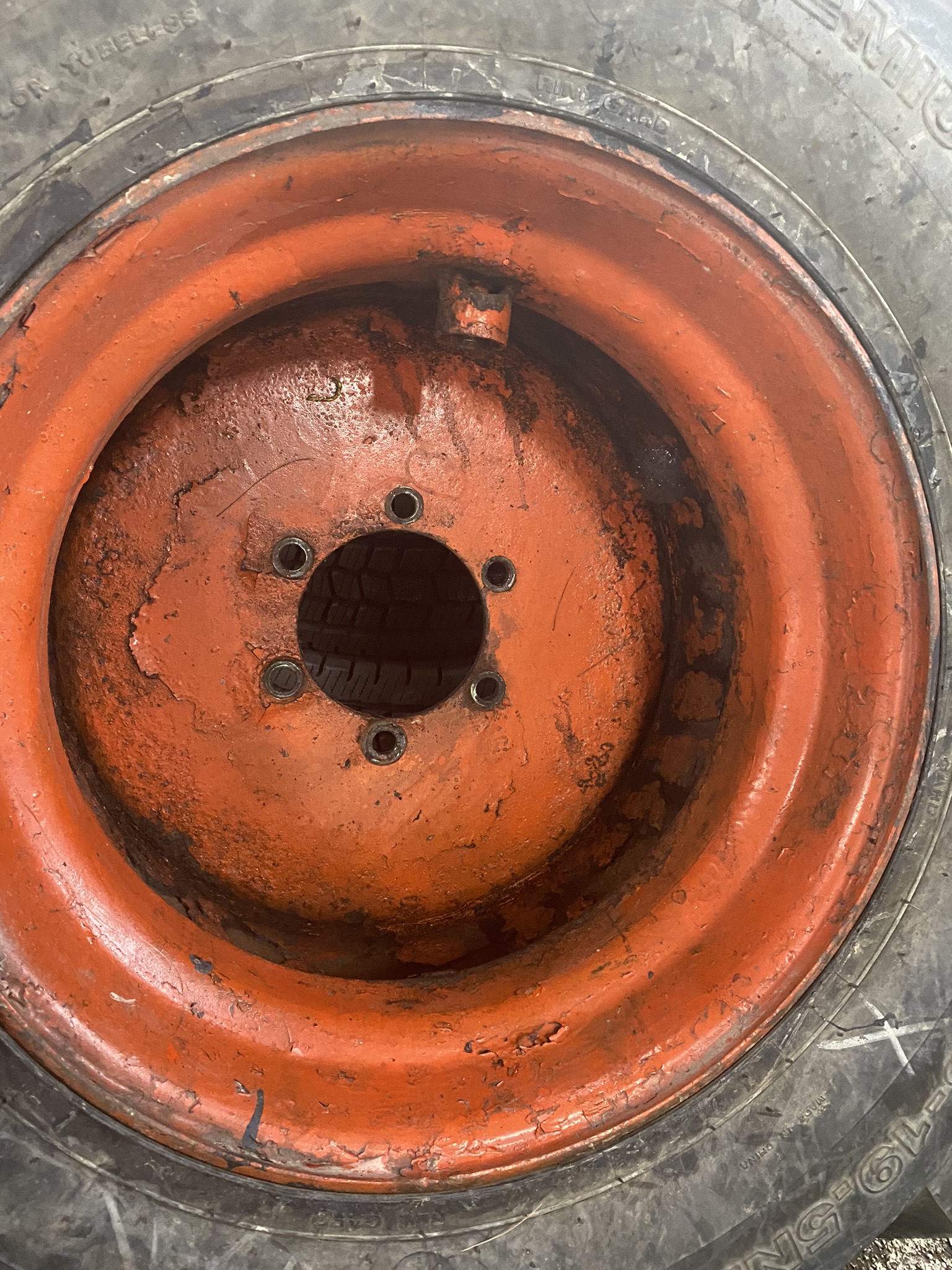

I went out and tried to measure the rim that is still on the tractor. I took the other tire and rim down to a tire place and left it with them, and I can't get there till Monday.
im unsure of two measurements in your pictures. My center hole is 5 3/8, like yours. My lug spacing is 6 5/8 like yours. My rim diameter is 20 1/4 like yours. If im on the side of the tractor and measure from the edge of the rim inside to the plate with the bolt holes in it, i get 10 1/2 inches. In your picture it looks like you get 9 1/2 inches. Ill try to send a picture of what i mean.
the last one is the rim width. You have 14 inches. I can't measure the distance across from rim edge to rim adge. The tire is off at the tire shop so i could find out by measuring that one, on monday. The one presently on the tractor is difficult because the tire is still on it.
thanks for your work. Shipping is awful. I will try to find out if there is any other way to do this. But thank you Al


SonofOrange

Member

Equipment
L245F with 1200 loader, T1870, AT70, GL-5500(S)
Sep 1, 2021
101
7
18
Monroe, GA
I went out and tried to measure the rim that is still on the tractor. I took the other tire and rim down to a tire place and left it with them, and I can't get there till Monday.
im unsure of two measurements in your pictures. My center hole is 5 3/8, like yours. My lug spacing is 6 5/8 like yours. My rim diameter is 20 1/4 like yours. If im on the side of the tractor and measure from the edge of the rim inside to the plate with the bolt holes in it, i get 10 1/2 inches. In your picture it looks like you get 9 1/2 inches. Ill try to send a picture of what i mean.
the last one is the rim width. You have 14 inches. I can't measure the distance across from rim edge to rim adge. The tire is off at the tire shop so i could find out by measuring that one, on monday. The one presently on the tractor is difficult because the tire is still on it.
thanks for your work. Shipping is awful. I will try to find out if there is any other way to do this. But thank you Al

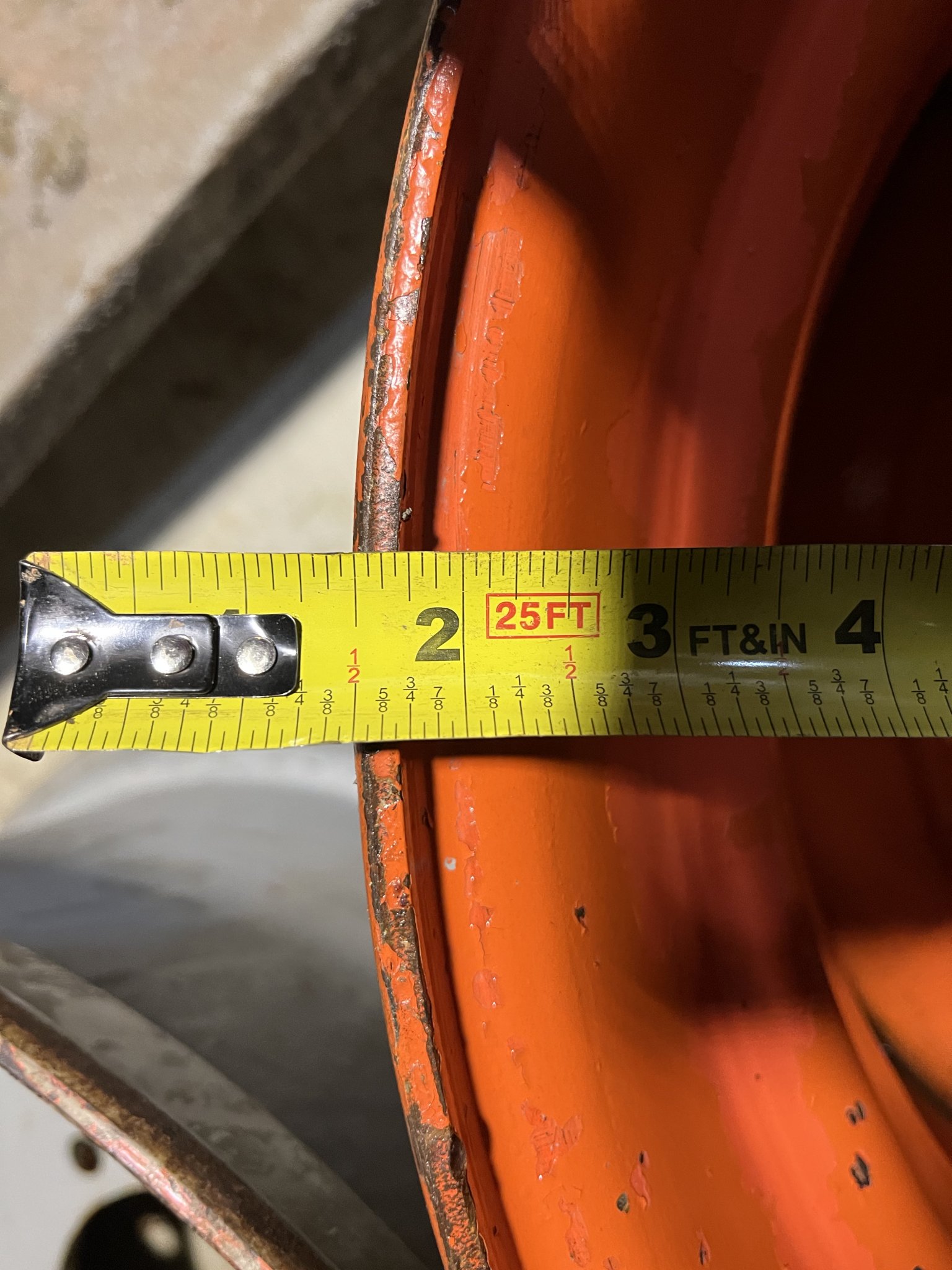

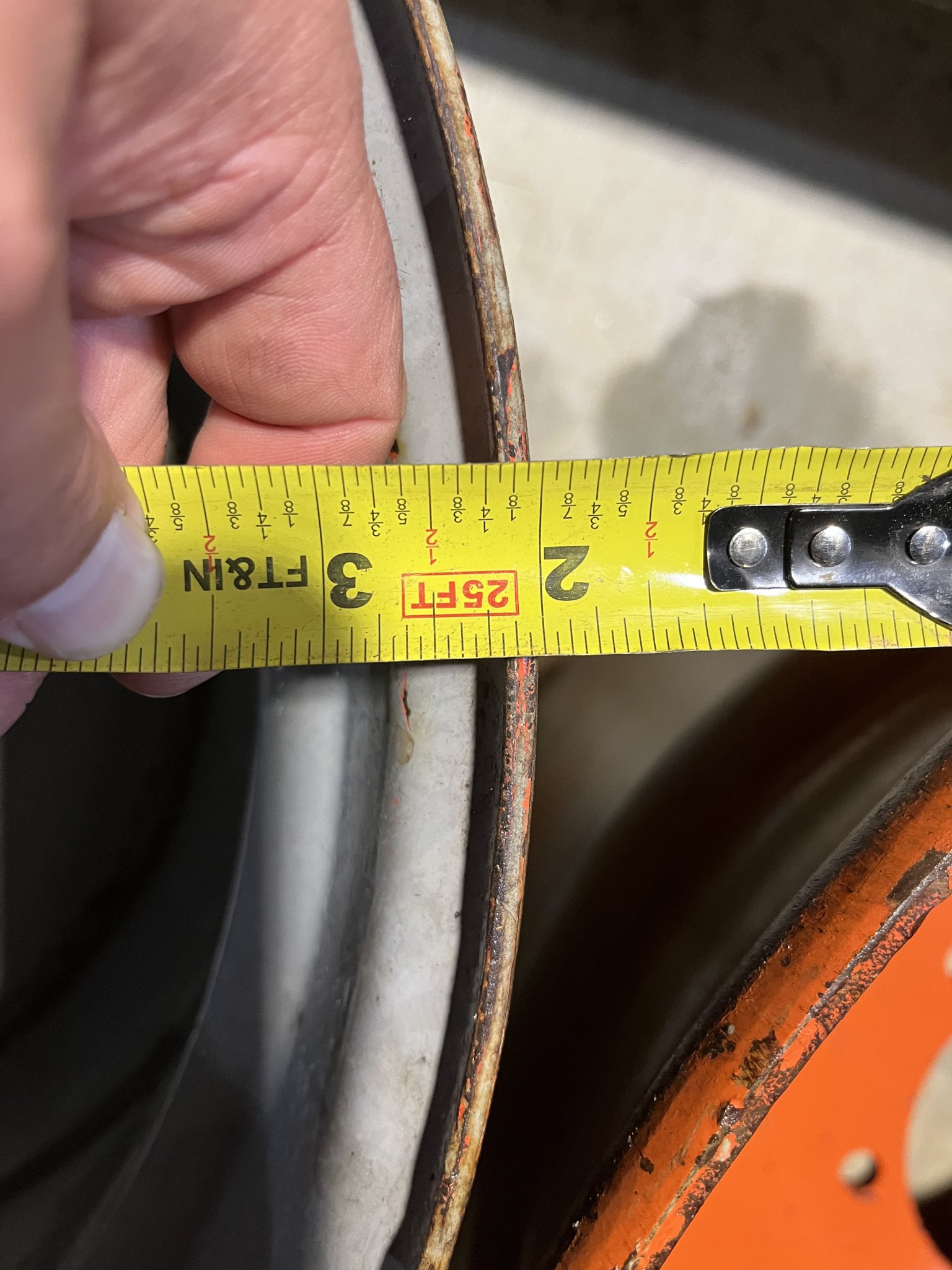

I checked the backspace, the depth of the wheel on the tractor side. It is 4-1/8". If that matches yours, that means this wheel is thinner. If it is less, that means this wheel will sit over 1" closer to your tractor.


Al/Lindley

New member
Jan 26, 2013
22
0
1
Lindley New York
I checked the backspace, the depth of the wheel on the tractor side. It is 4-1/8". If that matches yours, that means this wheel is thinner. If it is less, that means this wheel will sit over 1" closer to your tractor.
I went down to the tire place today and looked at my rim. Yours is I think the same other than the center plate is positioned one inch deeper than mine. i think it would bring the tire closer to the inside fender by an inch and unless i used spacers or something I wonder if it would work. I can't believe kubota made so many different rims!
i am interested in your rim, just don't know what to do at this point. I appreciate it that you have been so helpful. Al
