John Deere three bottom turnover plow - at least 60 years old!!

mcmxi

Well-known member
Lifetime Member

Equipment
M6060HDC, MX6000HSTC, MX6000HST (sold), BX25TLB (sold), GL7000
Feb 9, 2021
2,250
2,212
113
NW Montana
I think it could be interesting to start a thread about the John Deere plow that I bought this week in case anyone else is interested in buying an old piece of equipment, fixing it up and using it. I don't farm for a living, don't intend or need to make money from plowing, and probably won't plow more than 10 to 20 acres twice a year. So the point of this thread is to document repairing, replacing, upgrading and using what appears to be a 60+ year-old plow.

So why a plow? Well, after spending 16 or more hours cutting a friend's 10+ acres of weeds a few weekends ago, we had a conversation along the lines of "we should grow something here that will be good for bees (my friend has bee hives), will provide habitat for upland birds, that could be a food source for deer, that will help keep weeds down, and that might even produce a crop to consume or sell". After that conversation I started looking at new plows, and specifically two and three bottom turnover plows that are more efficient than the fixed type. Do I need a plow to help out my friend, maybe, maybe not, but it sure would be fun to get a 60 year old plow working again, do some tillage, learn a new skill and have some tractor fun along the way.

After requesting a quote on a very nice and very modern three bottom turnover plow from Kuhn, and being told that it would be $28,000 for the base model, I decided that I should find something way cheaper, and something that would work well enough for my twice yearly "plow day". Something that I could pull behind the M6060 when needed, but something that will sit idle for 363 days a year.

As it turns out, the place that quoted me for the Kuhn also sells various used and new implements and farm equipment and they happened to have both a three bottom and a four bottom turnover plow made by John Deere. So off I went, and after looking at both, thinking that the four bottom looked way too big and heavy (Kubota states that the M6060 is rated for a 14" three bottom) and seeing some significant and poorly executed repairs on the four bottom, decided to buy the three bottom. I knew right away that the hoses were junk, but they're cheap enough so I wasn't overly concerned. The plow appeared to be complete to my untrained eye with the exception of not having any coulters, and there was one repair and subsequent failure made to a fairly small bracket/brace that I can take care of.

Things I didn't know included whether or not the vane type rotary cylinder worked (rotates the plow bottoms) or whether or not as it sat would it do a decent job of turning over a relatively stone-free field.

Running total:
John Deere three bottom turnover plow - $1,200

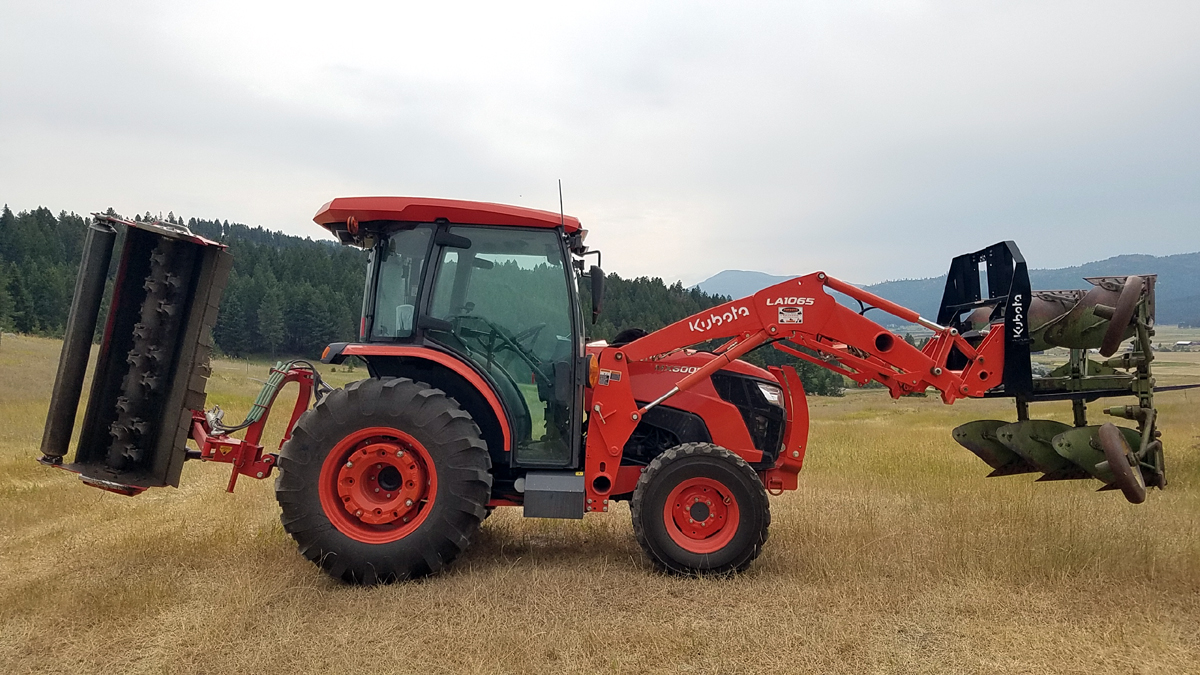

Pole Creek Supply Co. in St. Ignatius, MT and loading up the plow for the 80 mile trip home.










Last edited:
  • Like
Reactions: 7 users

mcmxi

Well-known member
Lifetime Member

Equipment
M6060HDC, MX6000HSTC, MX6000HST (sold), BX25TLB (sold), GL7000
Feb 9, 2021
2,250
2,212
113
NW Montana
The first step once I got the plow home was to get it off the trailer. An easy job for the MX6000.


  • Like
Reactions: 5 users

mcmxi

Well-known member
Lifetime Member

Equipment
M6060HDC, MX6000HSTC, MX6000HST (sold), BX25TLB (sold), GL7000
Feb 9, 2021
2,250
2,212
113
NW Montana
The next step was to get the plow on the back of the M6060. After the usual back and forth I figured out that it's not QH15 compatible but had little trouble connecting it directly to the 3-point. The hole I used for the top link and pin is wallowed out so that will need to be addressed. Also, the CAT 2 pin extensions that the lower links connect to might be worn too but that's not a priority.

Next up was to remove the old, cracked and worn out hoses and nasty fittings and get new hoses/fittings made up. I didn't want to contaminate the hydraulic fluid in the M so I connected one of the new hoses between the rotary cylinder and one port on one of the rear remotes. After cutting the old Pioneer fitting off one of the old hoses, I connected it to the rotary cylinder and placed the cut end in a 5 gallon bucket. By operating the valve with the engine running I was able to force clean hydraulic fluid through the rotary cylinder and into the bucket. Finally I installed the second new hose between the rotary cylinder and rear remote and squirted grease into the two zerk fittings responsible for the interface between the inner rotating shaft and outer housing. A quick test showed that the turnover mechanism works fine.

The last step today was to clean off the plow using a pressure washer in preparation for the next phase which is repair and replace.

Running total: $1,275.90
John Deere three bottom turnover plow - $1,200
Two new hoses with NPT and Pioneer fittings - $75.90


Last edited:
  • Like
Reactions: 3 users

mcmxi

Well-known member
Lifetime Member

Equipment
M6060HDC, MX6000HSTC, MX6000HST (sold), BX25TLB (sold), GL7000
Feb 9, 2021
2,250
2,212
113
NW Montana
Selfishly I’d love to read a user review if you ever pull the little green goblin with the MX…also I am curious what you decide to plant. Good luck. 🥃
I don't ever see that happening. I think it'd be way too much for the MX. I'll keep you posted on the field though.

  • Like
Reactions: 1 user

mcmxi

Well-known member
Lifetime Member

Equipment
M6060HDC, MX6000HSTC, MX6000HST (sold), BX25TLB (sold), GL7000
Feb 9, 2021
2,250
2,212
113
NW Montana
A slight detour, but it's interesting to think about what you have to pay for a good quality new plow. The 14" two bottom 3-point plow from Everything Attachments is a little over $2,100 not including shipping to MT. There are other options for sure, but if I were going to buy a new plow I would be looking at this model for starters.


If all in I can spend $2,500 or less and end up with a good turnover three bottom plow that does a nice job of turning over a field I'll be more than happy. Heck, if I end up at $3k I'll be happy.

OK, back to the John Deere. So before I can figure out what I need I should know what I have. I found a really good resource for John Deere plows and it seems that the plow I have is a John Deere 825 of some sort. It turns out that it was most likely made before 1960 because the main structural members are solid steel and not square or rectangular tubing.


It also appears that the plow uses HS plow bottoms which are common so I shouldn't have a problem finding moldboards, shares, shins, or landside plates. Coulters are easy to find too, but the hardware to install the coulters might need to be custom.

Last edited:

rc51stierhoff

Well-known member

Equipment
B2650, MX6000
Sep 13, 2021
756
588
93
Ohio
Not sure if out your way it’s a popular past time to walk a freshly plowed field to look for artifacts, but if you are going to be turning soil near a river, before you get too happy with the throttle to spread seed you might want to wait for a rain after you turn the soil, put the boots on and give it a walk over and see what you turned up…might be worth a walk.

  • Like
Reactions: 2 users

rc51stierhoff

Well-known member

Equipment
B2650, MX6000
Sep 13, 2021
756
588
93
Ohio
A slight detour, but it's interesting to think about what you have to pay for a good quality new plow. The 14" two bottom 3-point plow from Everything Attachments is a little over $2,100 not including shipping to MT. There are other options for sure, but if I were going to buy a new plow I would be looking at this model I'm sure.


If I can end up spending $2,500 or less and end up with a good turnover three bottom plow that does a nice job of turning over a field I'll be more than happy.

OK, back to the John Deere. So before I can figure out what I need I should know what I have. I found a really good resource for John Deere plows and it seems that the plow I have is a John Deere 825 of some sort. It turns out that it was most likely made before 1960 because the main structural members are solid steel and not square or rectangular tubing.

According to EA spec both your machines would be over powered…unless you have some way to limit the speed/horsepower…although maybe the R4s do that for free…although I am not sure an HST would be the right to for the job either way😂. That’s where I wonder would the MX even lift your plow off the back end, and it you tried to pull it would it even keep the front end down, assuming it have the weight / traction to try to pull her.

  • Like
Reactions: 1 user

mcmxi

Well-known member
Lifetime Member

Equipment
M6060HDC, MX6000HSTC, MX6000HST (sold), BX25TLB (sold), GL7000
Feb 9, 2021
2,250
2,212
113
NW Montana
According to EA spec both your machines would be over powered…unless you have some way to limit the speed/horsepower…although maybe the R4s do that for free…although I am not sure an HST would be the right to for the job either way😂. That’s where I wonder would the MX even lift your plow off the back end, and it you tried to pull it would it even keep the front end down, assuming it have the weight / traction to try to pull her.
It's hard to find a new three bottom plow it seems, unless you want to pay a lot of money. If you look in the MX6000 manual in the Implement Limitations section, it states that the max. size of a bottom plow is 16in. x 2 so the EA one above would be fine. I wouldn't pull it with the M6060 for sure, but the MX with the HST and less weight would probably be a good match.

  • Like
Reactions: 1 user

mcmxi

Well-known member
Lifetime Member

Equipment
M6060HDC, MX6000HSTC, MX6000HST (sold), BX25TLB (sold), GL7000
Feb 9, 2021
2,250
2,212
113
NW Montana
Figuring out what you don't know.

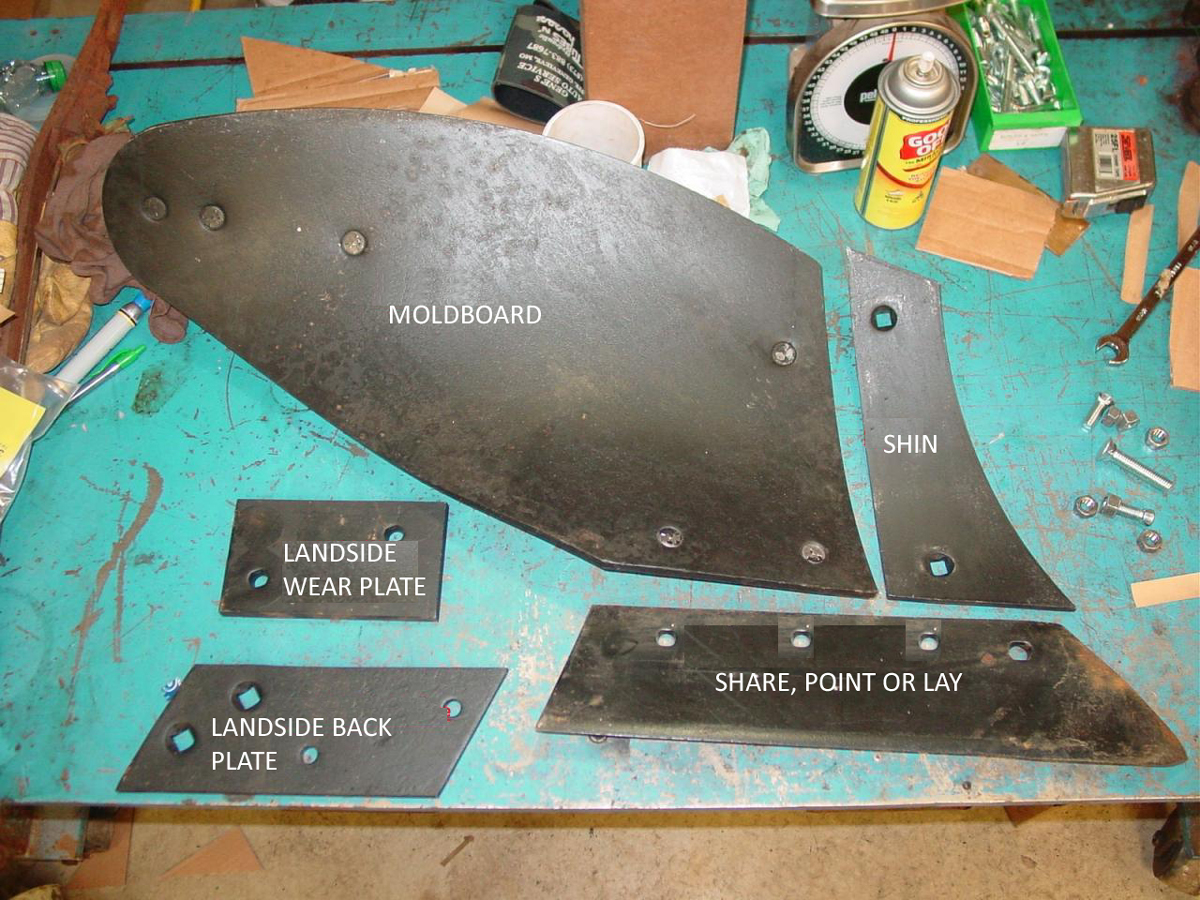

I'm sure some here are very experienced when it comes to plows and know every single part, but that's not where I'm starting from. So for those of us that don't know, here's an image with some parts of an HS type plow bottom called out. These are all parts that can be readily purchased if necessary.
