Hey guys
New to OTT. Just bought a used m100gx that does not have a FEL valve block. I’m installing a snow plow with a subframe. I bought an aftermarket 2 spool joystick kit with a 3rd function option. Pretty easy to install. All I need is to connect flow from the pump to the new 2 spool valve body and a return to hydraulic tank. My problem is I don’t know where there’s a power beyond port or a port for the return without having a FEL valve block.
Thanks in advance for the help


TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
8,586
4,377
113
Myersville, MD
windyridgefarm.us
Hey guys
New to OTT. Just bought a used m100gx that does not have a FEL valve block. I’m installing a snow plow with a subframe. I bought an aftermarket 2 spool joystick kit with a 3rd function option. Pretty easy to install. All I need is to connect flow from the pump to the new 2 spool valve body and a return to hydraulic tank. My problem is I don’t know where there’s a power beyond port or a port for the return without having a FEL valve block.
Thanks in advance for the help
I dont know much about that tractor but pipe 40 looks like its your supply. Should be easy to replace it with a couple hoses. Power beyond port on your AUX valve would go back to cover on tractor. Then you would need to find a.spot for the tank return.

Edit:

Looking at the loader parts breakdown the factory outlet block is only $55.




Dan

Last edited:

KevinRm100gx

New member

Equipment
M100gx
Oct 16, 2024
6
0
1
Canada
I dont know much about that tractor but pipe 40 looks like its your supply. Should be easy to replace it with a couple hoses. Power beyond port on your AUX valve would go back to cover on tractor. Then you would need to find a.spot for the tank return.

Edit:

Looking at the loader parts breakdown the factory outlet block is only $55.




Dan
Hi Dan,
I've looked for the loader parts diagram the Kubota parts finder website and cannot find it. Do you use another website?. I'm assuming the diagram must show where the block is plumbed into. Thanks for the help btw.

Kevin


TheOldHokie

Well-known member
Lifetime Member

Equipment
L3901/LA525, B7200DT/B1630, G2160/RCK60, G2460/RCK60
Apr 6, 2021
8,586
4,377
113
Myersville, MD
windyridgefarm.us
Hi Dan,
I've looked for the loader parts diagram the Kubota parts finder website and cannot find it. Do you use another website?. I'm assuming the diagram must show where the block is plumbed into. Thanks for the help btw.

Kevin

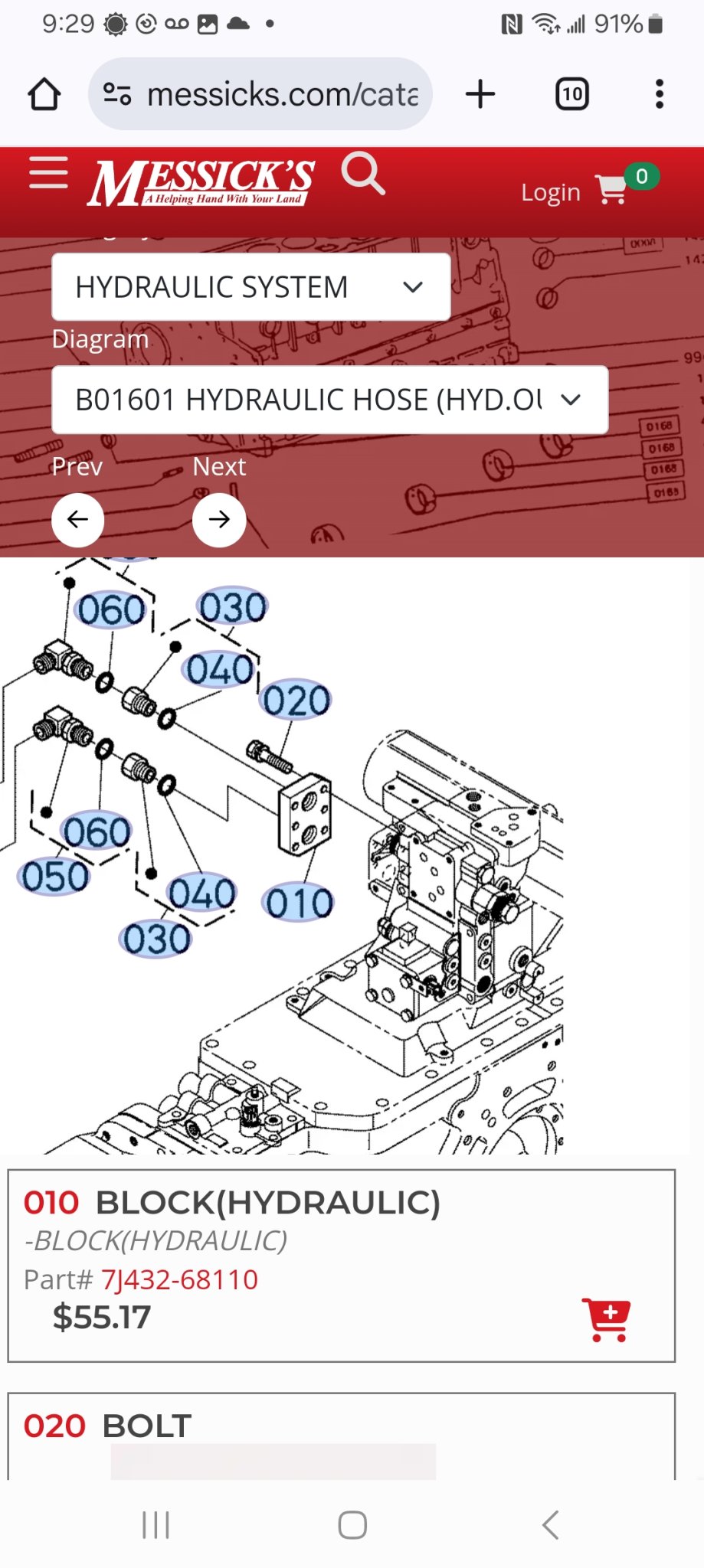

Click on the link I provided. That page has links to parts diagrams for the different loaders that used the block. Here is a screenshot of the LA1954E diagram. The Kubota parts site lists LA1954/LA1954E as the loader used on your tractor.

Dan


Last edited:

PoTreeBoy

Well-known member
Lifetime Member

Equipment
L35 Ford 3930
Mar 24, 2020
2,791
1,514
113
WestTn/NoMs
Hi Dan,
I've looked for the loader parts diagram the Kubota parts finder website and cannot find it. Do you use another website?. I'm assuming the diagram must show where the block is plumbed into. Thanks for the help btw.

Kevin
Kevin, Dan's been around the block a time or two. Usually, a front end loader is the first hydraulic user installed, so the parts for tying into the hydraulics are listed there, maybe a kit.


KevinRm100gx

New member

Equipment
M100gx
Oct 16, 2024
6
0
1
Canada
