Got tired of getting out to open and close the gate so have started to install a Liftmaster gate opener.

That expanded into putting in new gate posts, then that expanded into putting in a wider gate 10 foot to 14 foot change so I don’t have to be quite as exact when pulling the utility trailer through.

The original gate was hung on cedar split rail posts but the wider gate is hung on 4 inch galvanized steel tube posts. Figured that 8 foot long posts would be good enough but store only had 10 foot available so the challenge was to get the hinge side set about 5 feet 6 inches in the ground to utilize as much of the post as possible under ground. The area is river bottom so fairly easy to dig by hand. First few inches are road base (limestone and caliche and clay mixture) then about four feet of black clay, then harder brown clay. Since the hand diggers are only 5 feet the last foot was a bit of a challenge to get out. Pour water in to soften it and make it like a ball of play doh and make the hole a bit wider at the top and I could get the hole to about 5 foot 10 inches before I decided that was good enough. That would get my post to about 56 inches above ground. But then I actually measured the 10 foot post and it was 10 feet and 6 extra inches! Too cruel on my old back to get that extra depth in the hole after around 6 hours of actual digging over two days. Pictures of holes are stupid so I didn’t take any. The hinge side post was set with 500 pounds of Sakrete mix (hand mixed). Luck has it they package it in 50 pound bags since the 80 pounders just suck to move around and always did so it isn’t that I’m getting older! The other side post was only put in about 4 feet deep since it is there just to be symmetrical. Another 350 pounds of concrete later and the posts are in.

I’ll post some pictures (when I take them)of the cut off tops of the steel tubes to show the leftovers not used

Last edited:
  • Like
Reactions: 1 user

North Idaho Wolfman

Moderator
Staff member
Lifetime Member

Equipment
L3450DT-GST, Woods FEL, B7100 HSD, FEL, 60" SB, 743 Bobcat with V2203, and more
Jun 9, 2013
28,286
4,853
113
Sandpoint, ID
But I like seeing other people's holes in the ground! :p

We did 4 of them today with the PHD... much simpler and easier on the body then doing them by hand.

  • Like
Reactions: 1 user

Nicfin36

Well-known member

Equipment
L2501 HST, BH77 Backhoe, SSQA Loader ZD1011 Mower
Jun 19, 2019
1,014
457
83
Decatur, AL
Pictures would be great. I'd like to know how it goes, what you think about it, etc. I have thought about doing something like that at some point.


tawood

New member

Equipment
L2501
Apr 18, 2020
29
3
3
Lapeer, MI
I just finished putting gate openers (dual) on my driveway gates. I went with a clearanced Mighty Mule...I'm not a fan of Mighty Mule but the price was right on clearance...I guess they are going to remote / smart home (by cell phone) accessible gate openers now. I'll post a pic:


Pic was actually taken right before I started the install. You really can't see the openers much...although I did also put in an intercom.

Last edited:

Glassman13

Member
Jan 26, 2017
51
10
8
wimauma fl.
I just finished putting gate openers (dual) on my driveway gates. I went with a clearanced Mighty Mule...I'm not a fan of Mighty Mule but the price was right on clearance...I guess they are going to remote / smart home (by cell phone) accessible gate openers now. I'll post a pic:
View attachment 44925

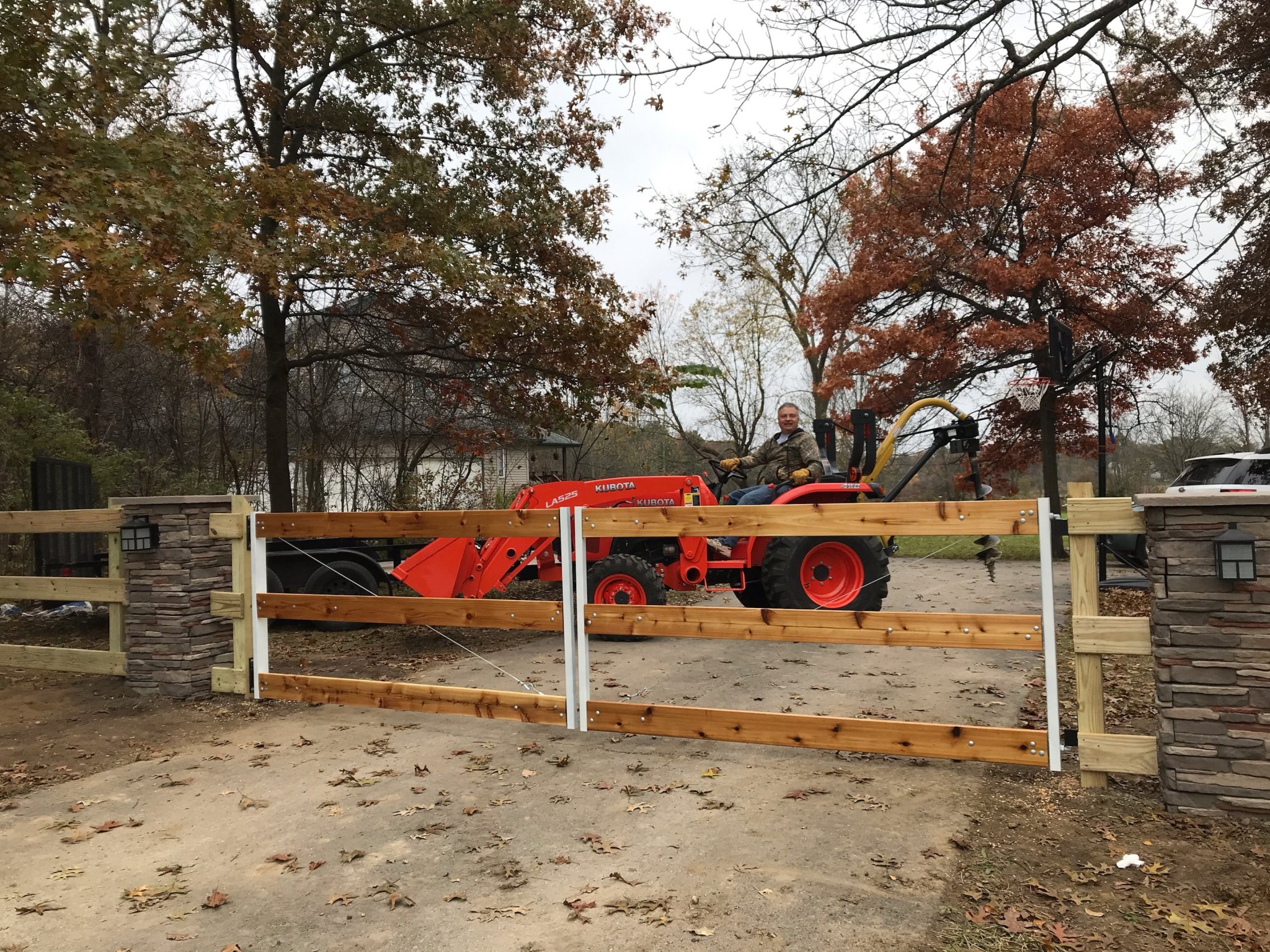

Pic was actually taken right before I started the install. You really can't see the openers much...although I did also put in an intercom.


Glassman13

Member
Jan 26, 2017
51
10
8
wimauma fl.
Wow! That's looking great! I installed a metal gate here that I added some metal curved pieces too. i ended up using a garage door opener for the gate, worked out great.

  • Like
Reactions: 1 user

Russell King

Well-known member

Equipment
L185F, Modern Ag Competitor 4’ shredder, Rhino tiller, rear dirt scoop
Jun 17, 2012
4,603
975
113
Austin, Texas
Update from this weekend (Sunday only)

Here are the cut off parts of the 10 foot 6 inch long posts to get about 54 inches above the ground.

The gate posts are round and the brackets supplied with the opener are made from bar stock so to get it mounted I had a mounting bracket fabbed up and I welded that to the post (as best as I can weld!) and then welded the gate bracket to that. Other than my poor welds it worked out well.
Here is the opener mounted to the post brace.

I also had some plates cut to go onto the gate and bolted that onto the welded wire section of the gate. Welding to the light weight gate would be difficult for a real welder and impossible for my skill level.

Last edited:
  • Like
Reactions: 1 users

Russell King

Well-known member

Equipment
L185F, Modern Ag Competitor 4’ shredder, Rhino tiller, rear dirt scoop
Jun 17, 2012
4,603
975
113
Austin, Texas
More updates from this weekend (Sunday only)

Had to dig two more holes to build a short fence to mount the control box.
Since NIW likes pictures of holes here you go.
Had to install a ground rod so used the same post hole to save driving that 2 feet.
I used a Tpost driver to get it driven in.

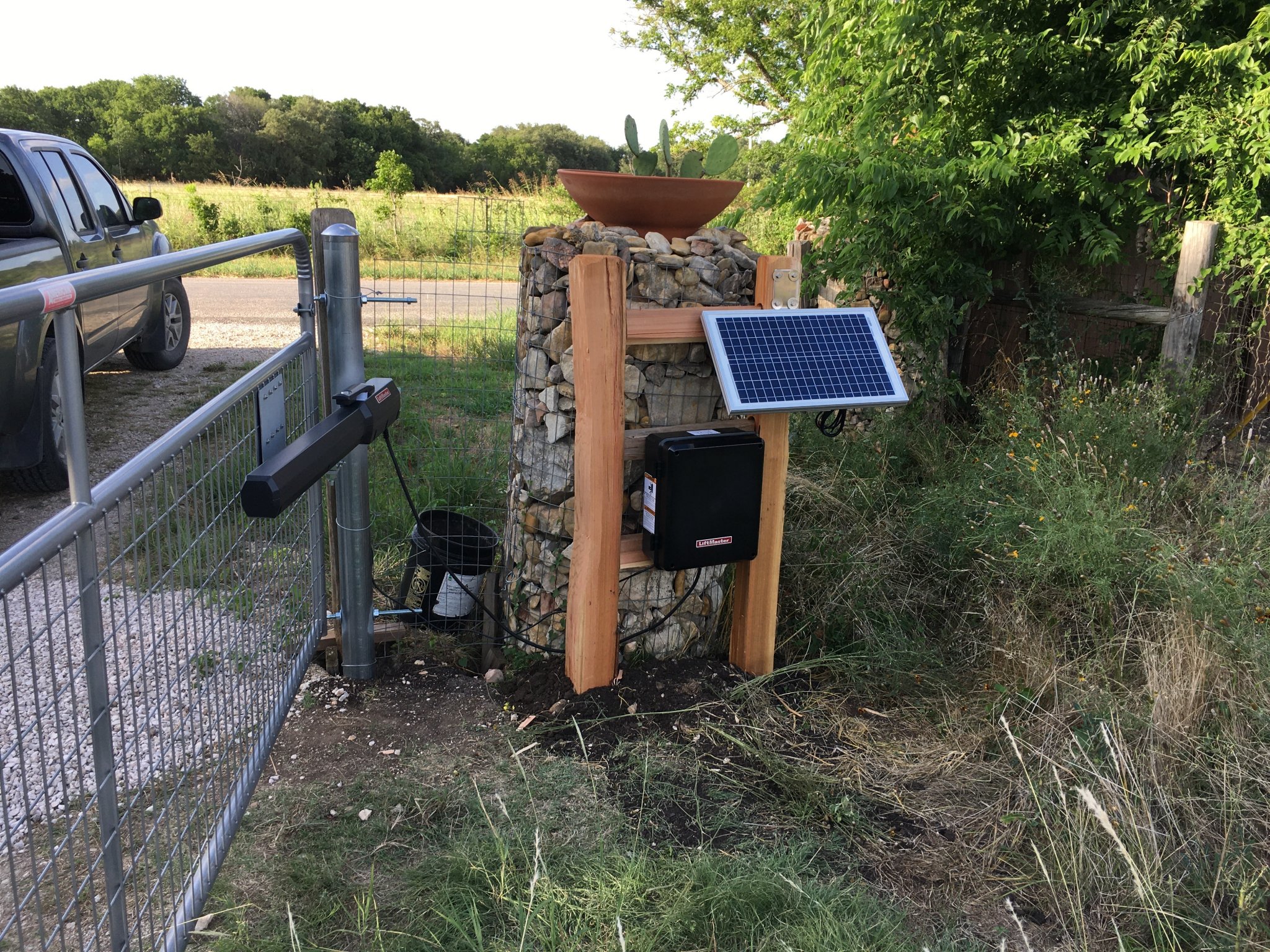

Here is the opener, control box and solar panel installed.
