Help! Need anchoring advice (not a boat)

ctfjr

Well-known member
Lifetime Member

Equipment
L3800HST
Dec 7, 2009
1,175
1,256
113
central ct

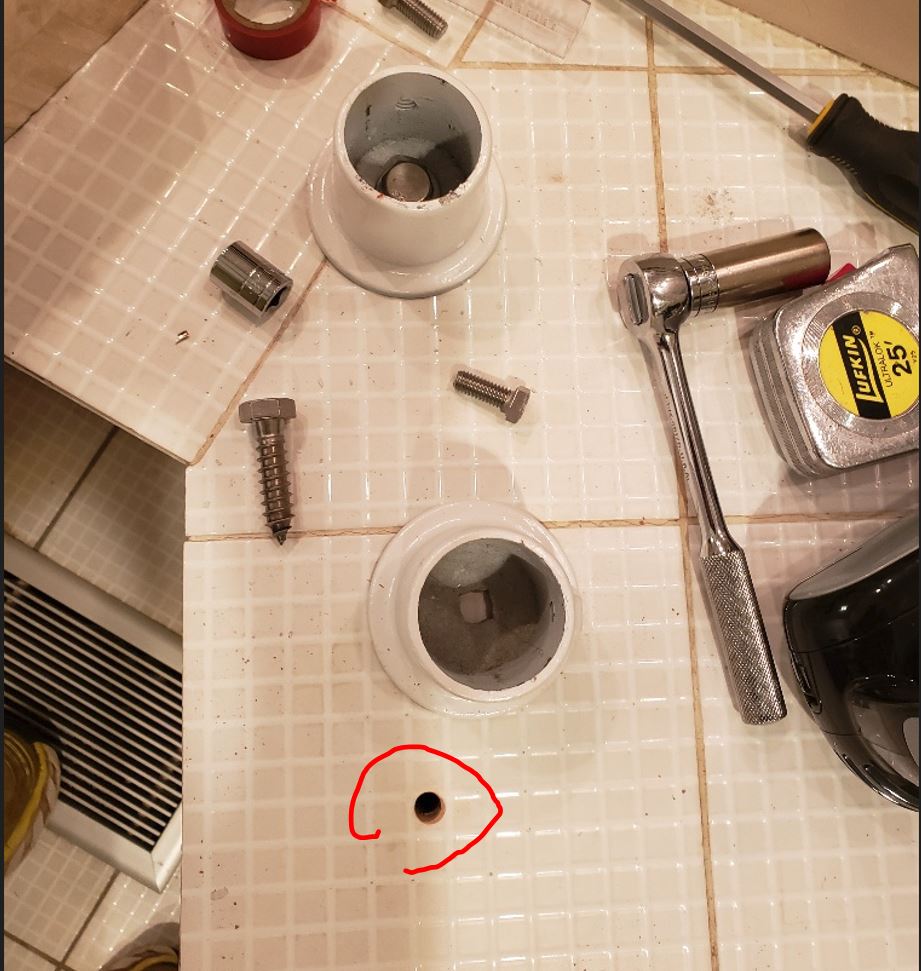

So. . . after 34 years in the house I have to put the railing up for the soaking tub as we are about to sell it. From this pic:
tub railing mount 1.JPG


you can see the two mounting 'cups' that need to be anchored down. I 'assumed', because the railing was in the original house drawings, that the wood under the tile would be 2" material. Sure enough I drilled the 1st hole (top one) and was in solid material. Put a 2" lag screw in and all good.

Not so much with the lower one. It must be 3/4" plywood :(

After much ruminating I thought no problem, I would run a long dill bit (24") down through that hole I made, pierce the subfloor of the tub room and from the basement be able to drill a 4" round hole directly below. Then I could put a 1/2 bolt through and nut it from below with a long extension.

Not so fast :( I hit something about 8" down. When I went into the basement and looked up I realized there is an I beam there.

So now I need an anchor, like a toggle bolt, to hold down that mount. Because of the leverage of the railing it needs to be able to take 100's of lbs of force. When looking online I see toggle bolts but the ratings are only about 75lbs. . .

What can I use?


The Evil Twin

Active member

Equipment
L2501
Jul 19, 2022
196
134
43
Virginia
Aside from using a boat anchor (sorry, couldn't resist), what are the codes in your locality. That would dictate what you can't do. As well as what you must do. If they don't say no toggles then....toggle away.
Can you work a piece of hardwood in top of the beam to run a lag bolt into? Could you get a toggle I there without going in from the top?
Just running through ideas.


Daren Todd

Well-known member
Lifetime Member

Equipment
Z121S Zero turn mower
May 18, 2014
7,430
1,682
113
Conway, Arkansas
What about a large toggle bolt??? Screen shot was of the first one I could find so you could see what I was talking about.

Screenshot_20220913-203341_Samsung Internet.jpg


niteshiftfromkc

New member

Equipment
BX25D
Apr 11, 2016
26
3
3
South KC, MO
So. . . after 34 years in the house I have to put the railing up for the soaking tub as we are about to sell it. From this pic:
View attachment 87077

you can see the two mounting 'cups' that need to be anchored down. I 'assumed', because the railing was in the original house drawings, that the wood under the tile would be 2" material. Sure enough I drilled the 1st hole (top one) and was in solid material. Put a 2" lag screw in and all good.

Not so much with the lower one. It must be 3/4" plywood :(

After much ruminating I thought no problem, I would run a long dill bit (24") down through that hole I made, pierce the subfloor of the tub room and from the basement be able to drill a 4" round hole directly below. Then I could put a 1/2 bolt through and nut it from below with a long extension.

Not so fast :( I hit something about 8" down. When I went into the basement and looked up I realized there is an I beam there.

So now I need an anchor, like a toggle bolt, to hold down that mount. Because of the leverage of the railing it needs to be able to take 100's of lbs of force. When looking online I see toggle bolts but the ratings are only about 75lbs. . .

What can I use?
Are you able to reach it from below? If so, maybe get a piece of plate steel a little larger than the cups that need mounted down with a hole in the middle. Basically use it as a large washer on the bottom side and run a bolt and nut through it.

Or try some of these: https://www.lowes.com/pd/TOGGLER-10...e-Bolt-Drywall-Anchor-Screws-Included/3183831

Or this:


ctfjr

Well-known member
Lifetime Member

Equipment
L3800HST
Dec 7, 2009
1,175
1,256
113
central ct
I can't see the top of the I beam. It's inside the stair void for the tub. I'm not positive, but because I'm definitely hitting wood, I think what I'm hitting may be some kind of framing for the stairs.

So the bottom line is I need some type of anchor that goes through a 3/8 or 1/2 inch hole. In searching more I found this:



I think the weak point on the toggle bolts I found is the pin strength. The rating on this looks good. I'll know soon enough I ordered them.

Thanks for all the feedback tho
