Draw Bar Specs

MNVikingsGuy

Active member

Equipment
LX3310, FEL, 60" bucket, 60" grapple, 60" box blade, 60" flail, LX2980 blower,
Sep 7, 2020
212
143
43
Minnesota
I am waiting for my new Kubota LX3310 to arrive and just picking up a few items here and there in advance. I want to buy a twisted clevis to hook towing/logging chain to the draw bar but I do not know the dimensions of the bar thickness or the diameter of the pin holes. I have searched all over google and haven't found any direct answers for this newish model. Best guess is 3/4" dia holes and 1.25" thick bar. Anyboth have a LX2610/3310 or even their predicessors the B2650/3350 to confirm?

Thanks in advance.


Dave_eng

Well-known member
Lifetime Member

Equipment
M7040, Nuffield 465
Oct 6, 2012
4,686
664
113
Williamstown Ontario Canada
Drawbars are built to standards like ASAE which stands for American Society of Ag Engineers.

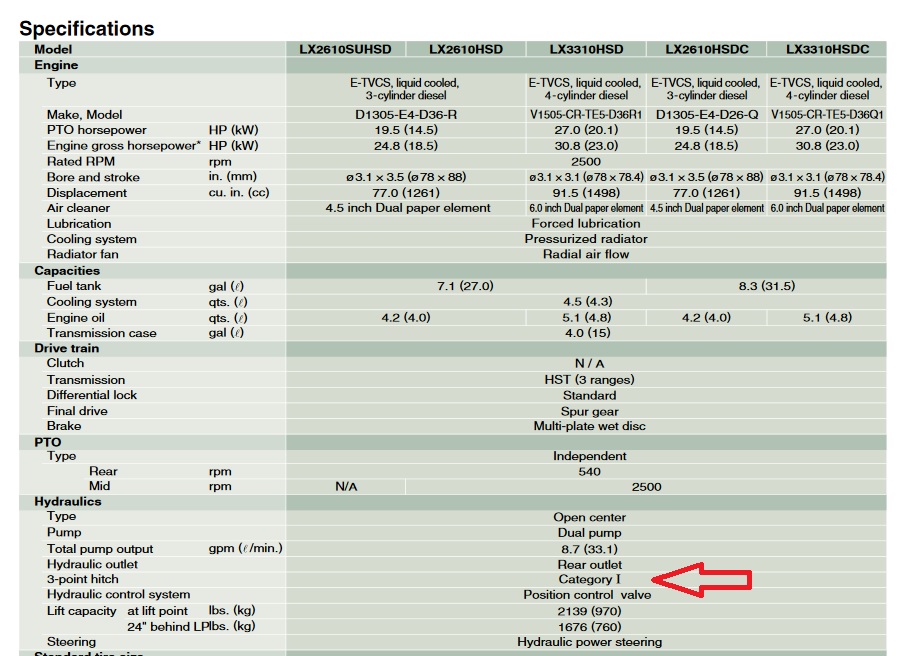

According to Kubota's spec's your tractor will have a Category 1 three point hitch

forum drawbar 1.jpg

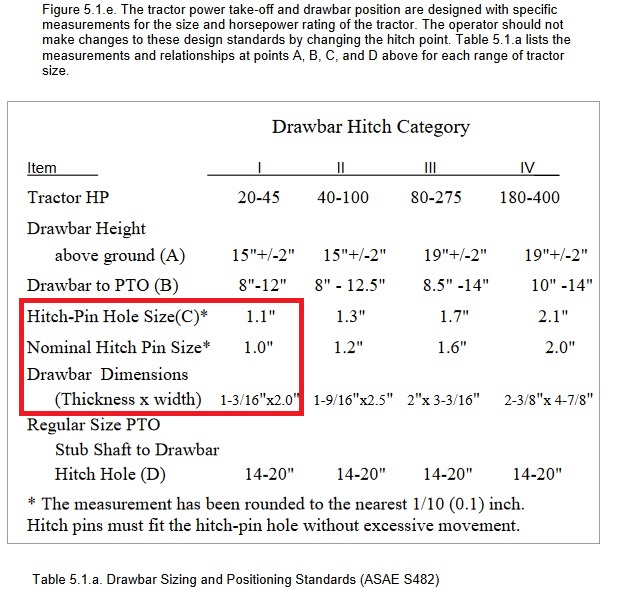

I have boxed in red the ASAE standard for your Category 1 hitch that apply to your tractor.

forum drawbar.jpg


Dave

  • Like
Reactions: 1 user

MNVikingsGuy

Active member

Equipment
LX3310, FEL, 60" bucket, 60" grapple, 60" box blade, 60" flail, LX2980 blower,
Sep 7, 2020
212
143
43
Minnesota
Drawbars are built to standards like ASAE which stands for American Society of Ag Engineers.

According to Kubota's spec's your tractor will have a Category 1 three point hitch

View attachment 48549

I have boxed in red the ASAE standard for your Category 1 hitch that apply to your tractor.

View attachment 48548

Dave
Thanks! I didn't know the draw bars were standardized as part of the 3 pt system.


Bmyers

Well-known member
Lifetime Member

Equipment
Grand L3560 with LA805 loader, EA 55" Wicked Grapple, SBX72 BB, LP 1272 mower
May 27, 2019
2,375
2,287
113
Southern Illinois
Interesting, I learned something new.

  • Like
Reactions: 1 users

DeepWoods

Active member

Equipment
B2650HSDC Woodland Mills WC68 Wood Chipper
Apr 10, 2019
279
203
43
Bigfork Minnesota
I have a B2650HSDC and I have yet to find a twisted clevis to fit my draw bar. While the specifications given above may be ASAE standards the draw bar hole size in my draw bar provided with the tractor has an inside dimension of .823. Not even close to 1 inch. I either end up with a pin that is too big if the clevis fits around the outside of the draw bar, or if the pin fits, the clevis won't have a large enough opening to go around the draw bar. I really don't want to spend upwards of $30-$40 for a 1 inch drill bit to make the hole larger, so if there is anyone out there that has found a source for something that fits, I would be interested.


MNVikingsGuy

Active member

Equipment
LX3310, FEL, 60" bucket, 60" grapple, 60" box blade, 60" flail, LX2980 blower,
Sep 7, 2020
212
143
43
Minnesota
I have a B2650HSDC and I have yet to find a twisted clevis to fit my draw bar. While the specifications given above may be ASAE standards the draw bar hole size in my draw bar provided with the tractor has an inside dimension of .823. Not even close to 1 inch. I either end up with a pin that is too big if the clevis fits around the outside of the draw bar, or if the pin fits, the clevis won't have a large enough opening to go around the draw bar. I really don't want to spend upwards of $30-$40 for a 1 inch drill bit to make the hole larger, so if there is anyone out there that has found a source for something that fits, I would be interested.
That is what I had heard from a few others, but they seem to say a 3/4" with a bushing or drill to 7/8" or drill to 1". How far is the center of the hole to the end of the drawbar on yours??

Last edited:

Dave_eng

Well-known member
Lifetime Member

Equipment
M7040, Nuffield 465
Oct 6, 2012
4,686
664
113
Williamstown Ontario Canada
I have a B2650HSDC and I have yet to find a twisted clevis to fit my draw bar. While the specifications given above may be ASAE standards the draw bar hole size in my draw bar provided with the tractor has an inside dimension of .823. Not even close to 1 inch. I either end up with a pin that is too big if the clevis fits around the outside of the draw bar, or if the pin fits, the clevis won't have a large enough opening to go around the draw bar. I really don't want to spend upwards of $30-$40 for a 1 inch drill bit to make the hole larger, so if there is anyone out there that has found a source for something that fits, I would be interested.
How do the width and thickness measurements in the standard compare to your drawbar.?

Dave


DeepWoods

Active member

Equipment
B2650HSDC Woodland Mills WC68 Wood Chipper
Apr 10, 2019
279
203
43
Bigfork Minnesota
The draw bar itself measures close enough to specs, 1.256x1.937x 15 5/16 long or 1 1/4 x 1 15/16 closest fractional sizes. The existing hole is 1" from the end of the bar to the center of the hole. I can't even put a 2 inch ball on the draw bar as it would have a 1" shaft on the ball. If I drop down on the size of the ball shank i would need a bushing or it would be sloppy in the hole. Quite the engineering Kubota has come up with. I have the machining skills necessary to put the right size hole in the draw bar, but not the tooling.


BigG

Well-known member

Equipment
l2501, FEL, BB, Rotary cutter, rake,spreader, roller, etc. New Holland TL80 A
Sep 14, 2018
1,877
684
113
West Central,FL

This should work.


MNVikingsGuy

Active member

Equipment
LX3310, FEL, 60" bucket, 60" grapple, 60" box blade, 60" flail, LX2980 blower,
Sep 7, 2020
212
143
43
Minnesota
The draw bar itself measures close enough to specs, 1.256x1.937x 15 5/16 long or 1 1/4 x 1 15/16 closest fractional sizes. The existing hole is 1" from the end of the bar to the center of the hole. I can't even put a 2 inch ball on the draw bar as it would have a 1" shaft on the ball. If I drop down on the size of the ball shank i would need a bushing or it would be sloppy in the hole. Quite the engineering Kubota has come up with. I have the machining skills necessary to put the right size hole in the draw bar, but not the tooling.
Thanks!


MNVikingsGuy

Active member

Equipment
LX3310, FEL, 60" bucket, 60" grapple, 60" box blade, 60" flail, LX2980 blower,
Sep 7, 2020
212
143
43
Minnesota

This should work.
Thanks


Dave_eng

Well-known member
Lifetime Member

Equipment
M7040, Nuffield 465
Oct 6, 2012
4,686
664
113
Williamstown Ontario Canada
Thanks! I didn't know the draw bars were standardized as part of the 3 pt system.

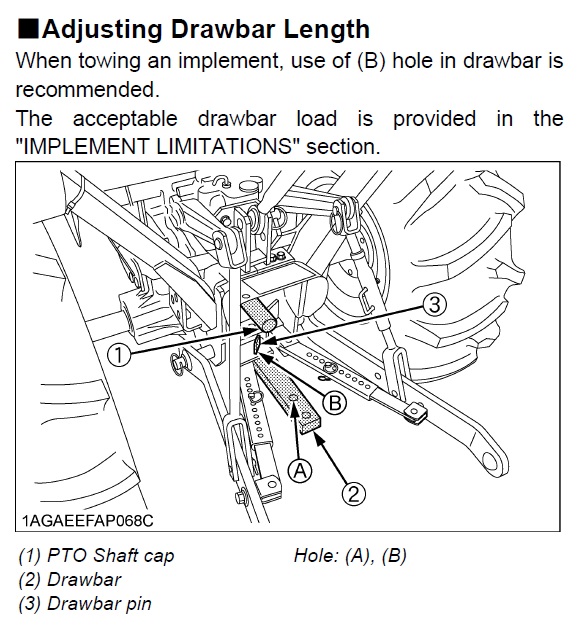

The B2650 owners manual shows different holes in the draw bar.

Can you please advise if all the holes are the same size along the length of the bar,

I am just trying to figure out is it can be installed where the opposite end is in and if so are the holes showing a different size than the ones which you find too small

forum B2650 drawbar.jpg


Dave


GreensvilleJay

Well-known member

Equipment
BX23-S
Apr 2, 2019
4,950
1,640
113
Greensville,Ontario,Canada
re: Twisted clevis . I simply added a 2nd clevis to the 1st clevis on my forklift as well as pickup truck hitches. Somehow ,over 40 years, I've acquired a huge box full of various clevises but the only twisted one is made from 1-1/4 barstock


Kargin

New member

Equipment
L2800D with LA463 and an SE-5 Rhino shredder
Oct 21, 2020
1
0
1
Texas
Drawbars are built to standards like ASAE which stands for American Society of Ag Engineers.

According to Kubota's spec's your tractor will have a Category 1 three point hitch


I have boxed in red the ASAE standard for your Category 1 hitch that apply to your tractor.

Dave
Thanks for posting this Dave. I've been looking for info on my L2800D's drawbar as upon purchase, it is absent. Of course I have access to universals and substandards that can "fill the void" until I track down a replacement.

Any knowledge or ability to find the part number for such drawbar's? I am told mine is a late model 2005 L2800D and would appreciate any help as the owner's manual I found online has only data like you posted above.

Thanks!

-Ron


wgator

Active member

Equipment
L4701HST, FEL
Jul 28, 2018
471
138
43
NC
Thanks for posting this Dave. I've been looking for info on my L2800D's drawbar as upon purchase, it is absent. Of course I have access to universals and substandards that can "fill the void" until I track down a replacement.

Any knowledge or ability to find the part number for such drawbar's? I am told mine is a late model 2005 L2800D and would appreciate any help as the owner's manual I found online has only data like you posted above.

Thanks!

-Ron
The p/n for your drawbar is TC220-29710. Here is a link to it on Messicks: CLICK HERE
