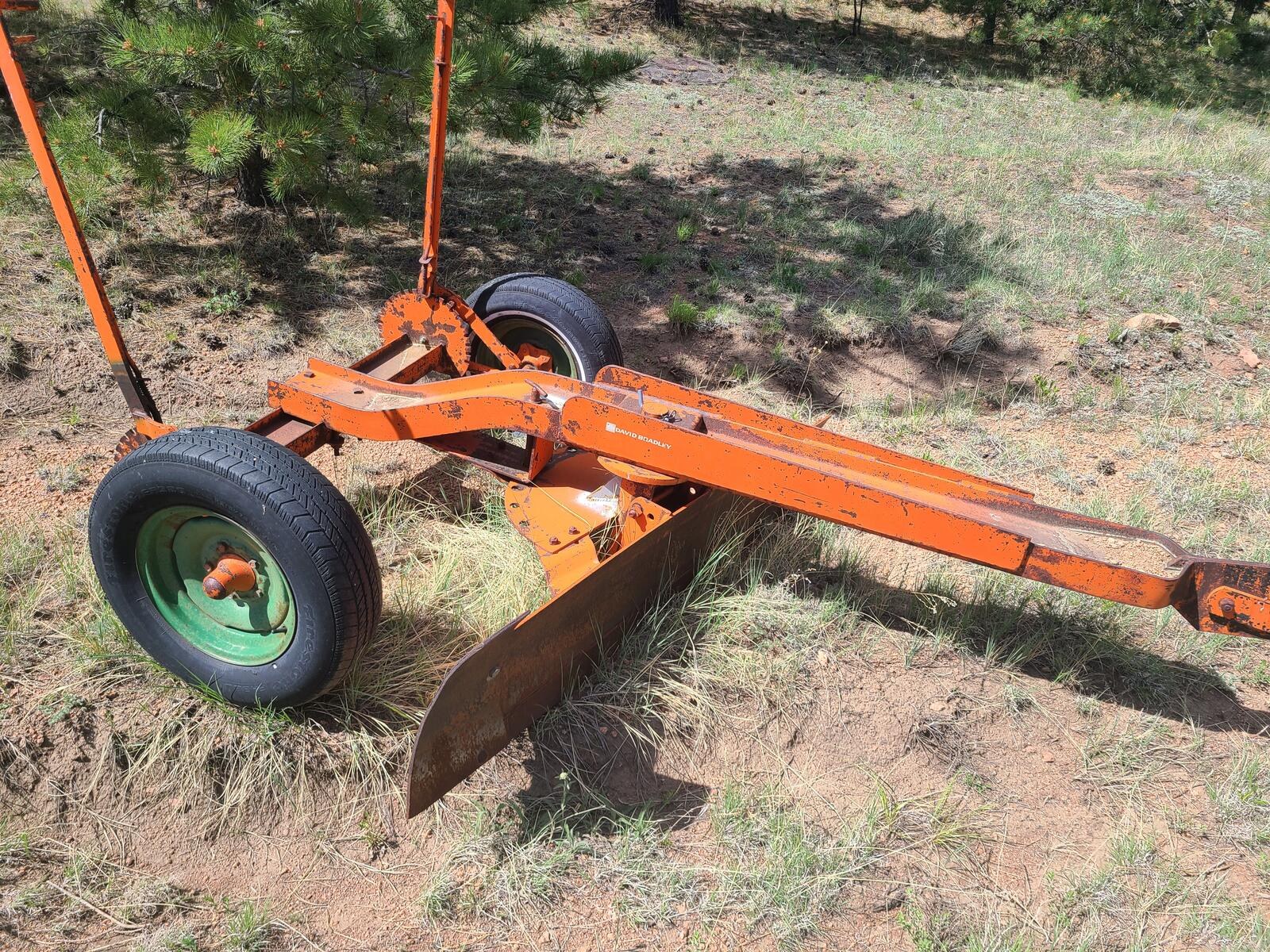

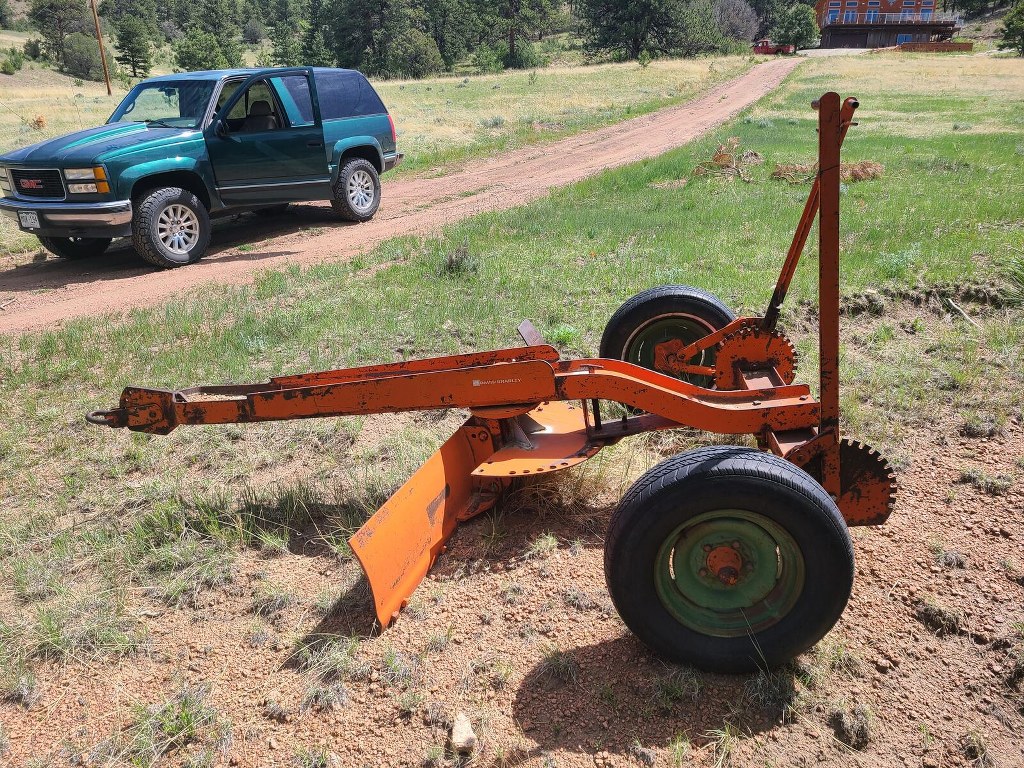

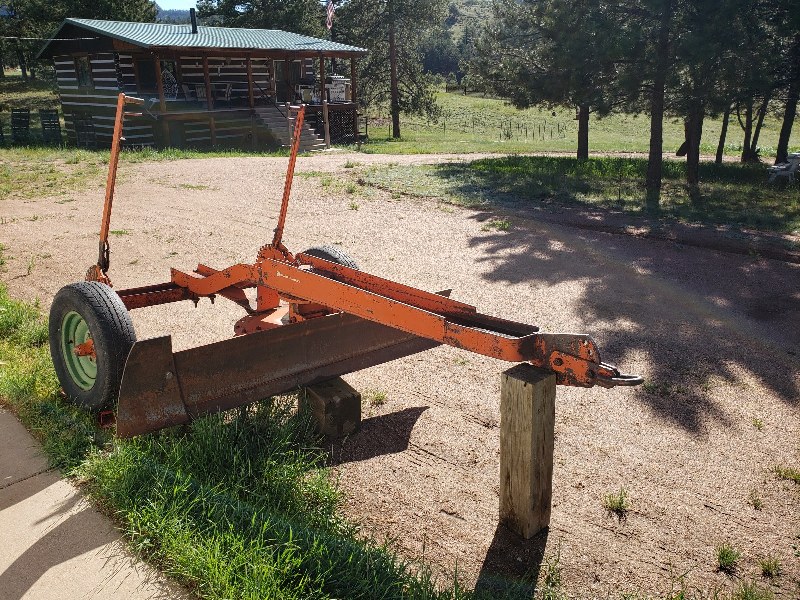

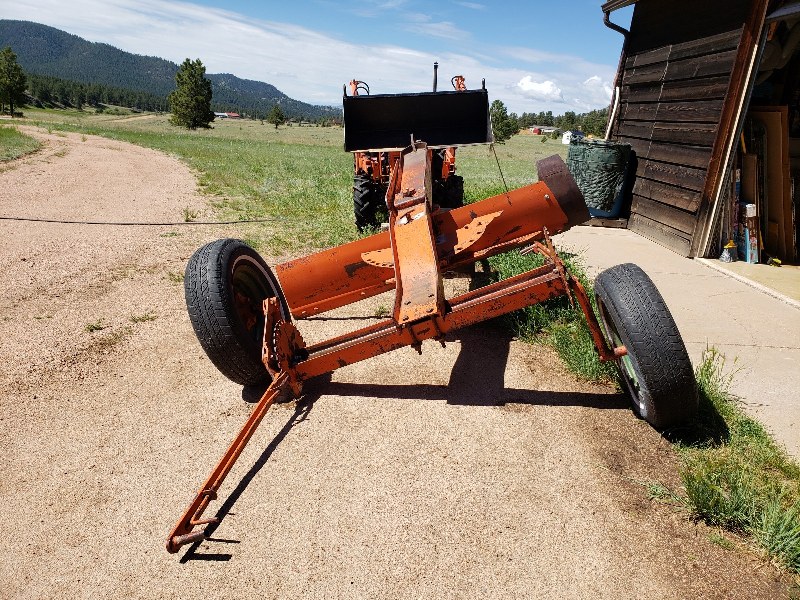

Wonder if anyone knows anything about the David Bradley pull type adjustable blade?
One locally for sale, $500, can see it Friday when the owner is back in town.

His description; Great old piece of equipment. I have used this for light road maintenance. I was told this originally came through the Sears catalog. Very heavy duty. Tows with a pintle hook. Asking 500.00 because you can always go down but you can't come up!

I see a lot of David Bradley walk behinds, chain saws, etc. that were sold through Sears and Roebuck.

Would like to have a manual for this old beast if anyone has one?






Attachments

  • Like
Reactions: 1 user

BigG

Well-known member

Equipment
l2501, FEL, BB, Rotary cutter, rake,spreader, roller, etc. New Holland TL80 A
Sep 14, 2018
1,950
774
113
West Central,FL
I like it. It looks like the only thing that can go bad are the bearings. You can take them to a good parts store and they can measure them. So if you can not fine a manual it is no big deal.

I would go a little lower than $500. Maybe $350.

  • Like
Reactions: 1 user

Lil Foot

Well-known member
Lifetime Member

Equipment
1979 B7100DT Gear, Nissan Hanix N150-2 Excavator
May 19, 2011
7,260
2,204
113
Peoria, AZ
I agree, cool tool that I would like to have, but a little high on the price.

  • Like
Reactions: 1 user

leveraddict

Well-known member

Equipment
2017 BX23S 60" LP BoxBlade 54" mower 60" BackBlade EA 12" 1 bottom plow & Forks
Apr 1, 2019
906
580
93
NEPA
A three point mounted blade is faster backing into tight spots and turning around but if you have lots of room on your property its a nice implement!

  • Like
Reactions: 1 user

woodman55

Well-known member

Equipment
L6060HSTC, RTV 1100
May 15, 2022
724
516
93
canada
Looks like a grand old rig to me, and it's even the right color. LOL. I think it would look great behind your tractor. Also, a cat walk at the back, so one person can operate it while another drives would be cool. I agree, any type of literature would be interesting to have.


Chanceywd

Well-known member
Lifetime Member

Equipment
Kubota L2501DT BH77 VIRNIG URG60-CT 1950 8N
Mar 26, 2021
556
390
63
central ny
If it was in my neighborhood I would buy it probably pay the $500, I am thinking about adding some adjustable wheels for my stone rack to work like that.

Bill


billrigsby

Active member

Equipment
L1500DT Too many implements, or is there such a thing?
Mar 17, 2015
994
134
43
Florissant CO USA 8213'
www.facebook.com

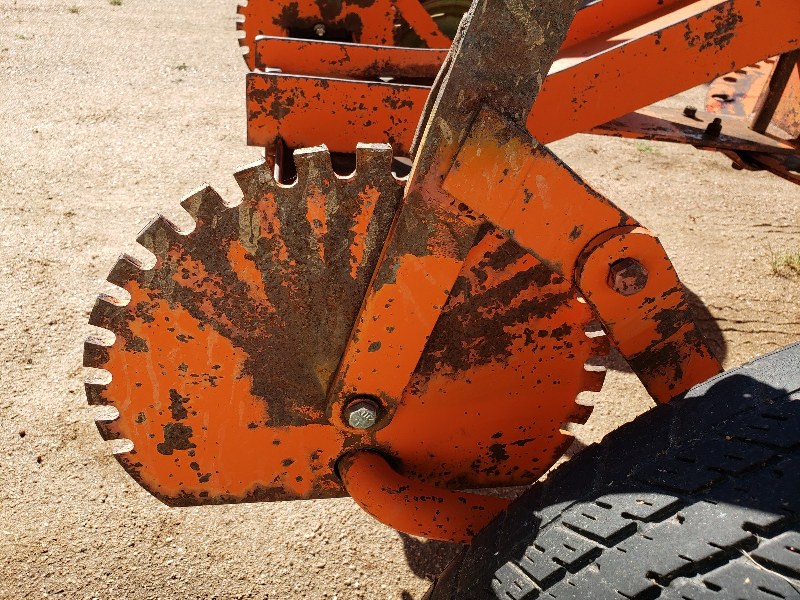

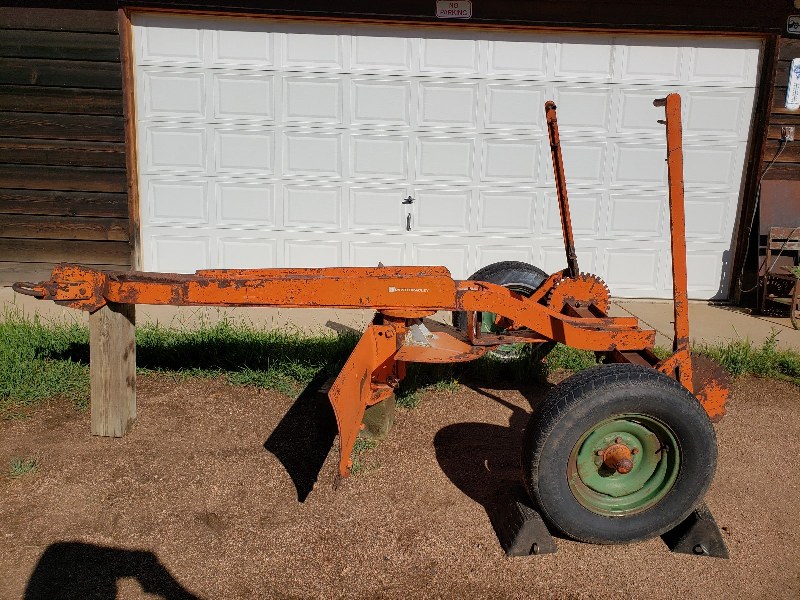

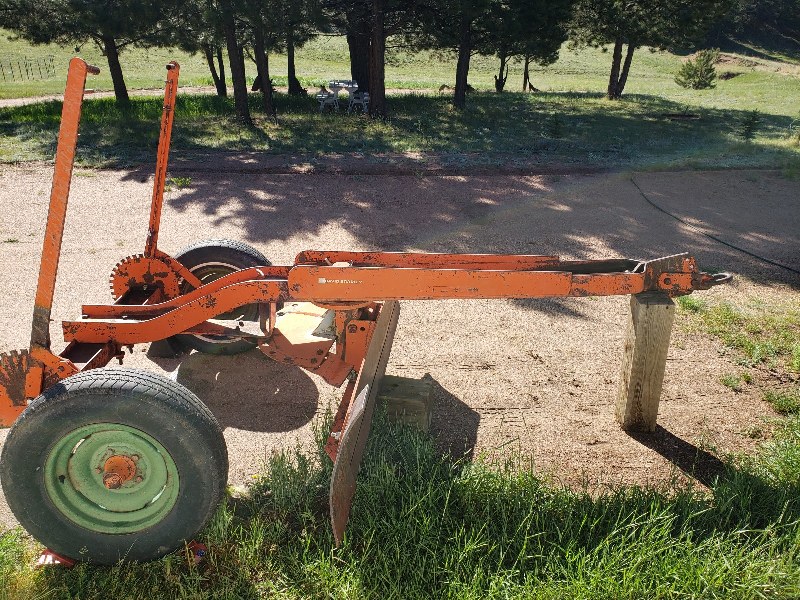

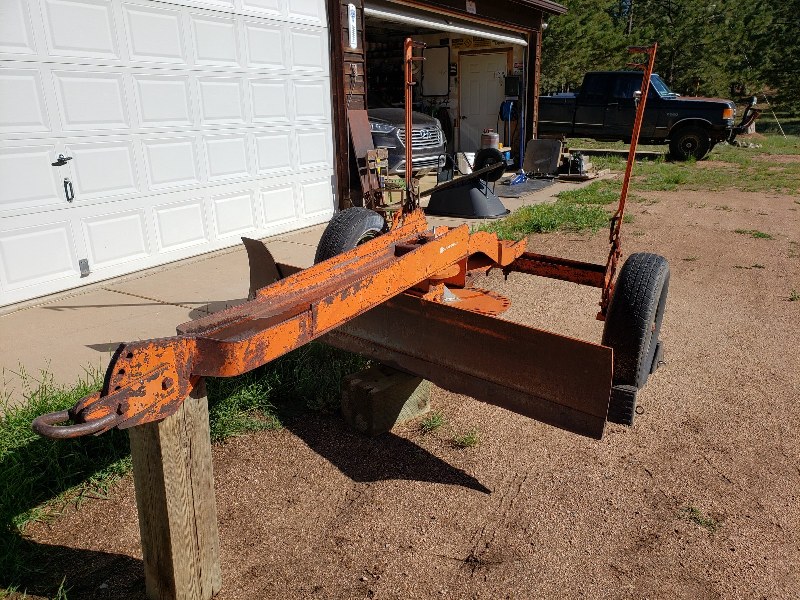

Ended up giving $340 for it, checked out the bearings and
all was good, towed it home behind my truck.

Simple, well built and very functionable. A nice addition.

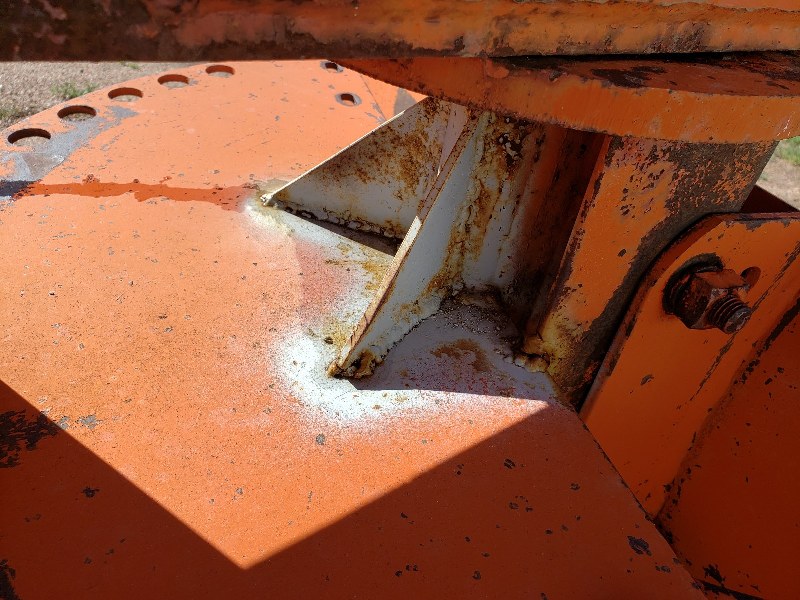

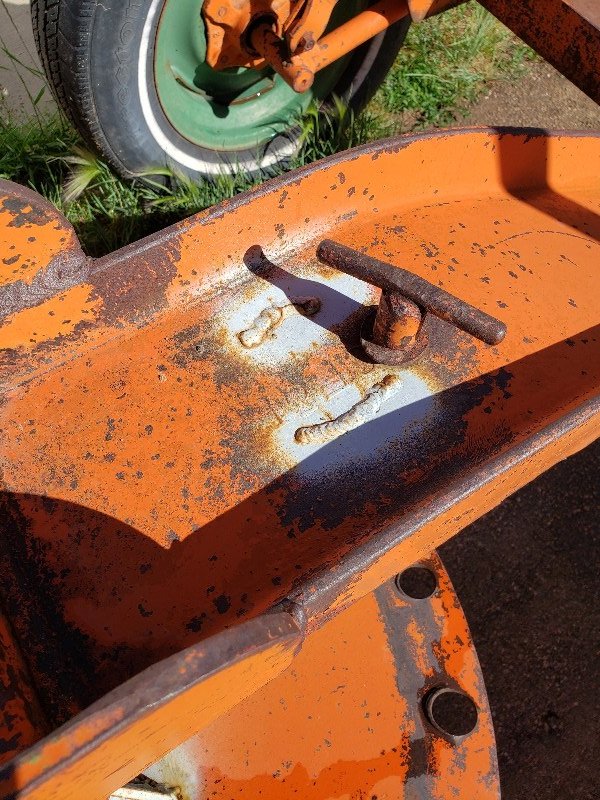

I has had some repairs and the welds look like mine,

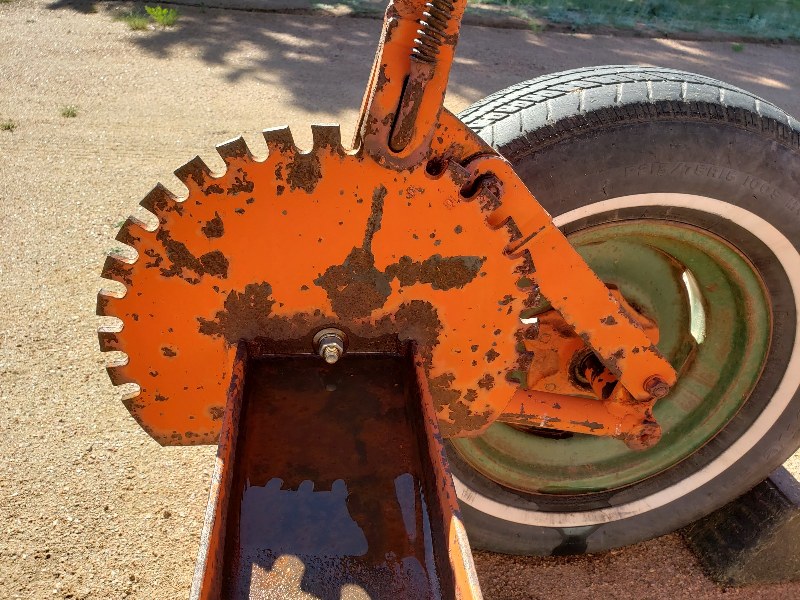

not pretty but penetrated. Needs few drain hole drilled here and there.
Looks like the steel was made by Colorado Fuel and Iron, down the road in Pueblo.
















  • Like
Reactions: 2 users

PoTreeBoy

Well-known member
Lifetime Member

Equipment
L35 Ford 3930
Mar 24, 2020
2,344
1,180
113
WestTn/NoMs
Ended up giving $340 for it, checked out the bearings and
all was good, towed it home behind my truck.

Simple, well built and very functionable. A nice addition.

I has had some repairs and the welds look like mine,
not pretty but penetrated. Needs few drain hole drilled here and there.
Looks like the steel was made by Colorado Fuel and Iron, down the road in Pueblo.

View attachment 82690

View attachment 82691

View attachment 82692

View attachment 82693

View attachment 82694

View attachment 82697

View attachment 82695

View attachment 82696
Cool! Those wheels will make grading much smoother. I foresee a project to replace those adjusters with hydraulic cylinders.

  • Like
Reactions: 1 user

billrigsby

Active member

Equipment
L1500DT Too many implements, or is there such a thing?
Mar 17, 2015
994
134
43
Florissant CO USA 8213'
www.facebook.com
Cool! Those wheels will make grading much smoother. I foresee a project to replace those adjusters with hydraulic cylinders.

That was my thought exactly, box blade or rear blade, I just don't have 'the touch'

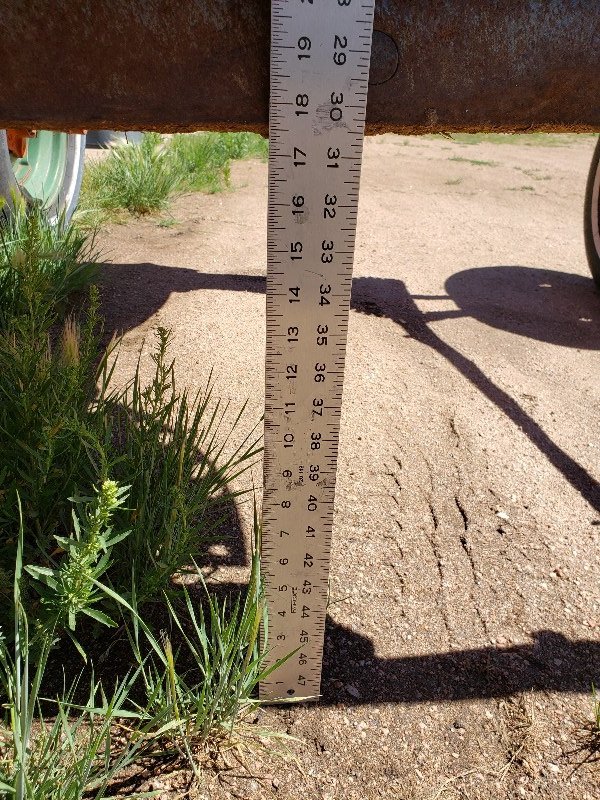

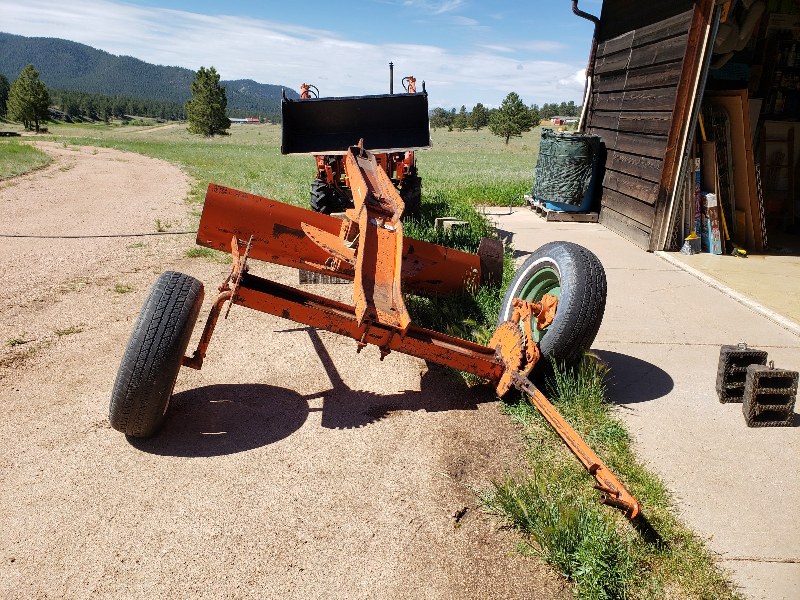

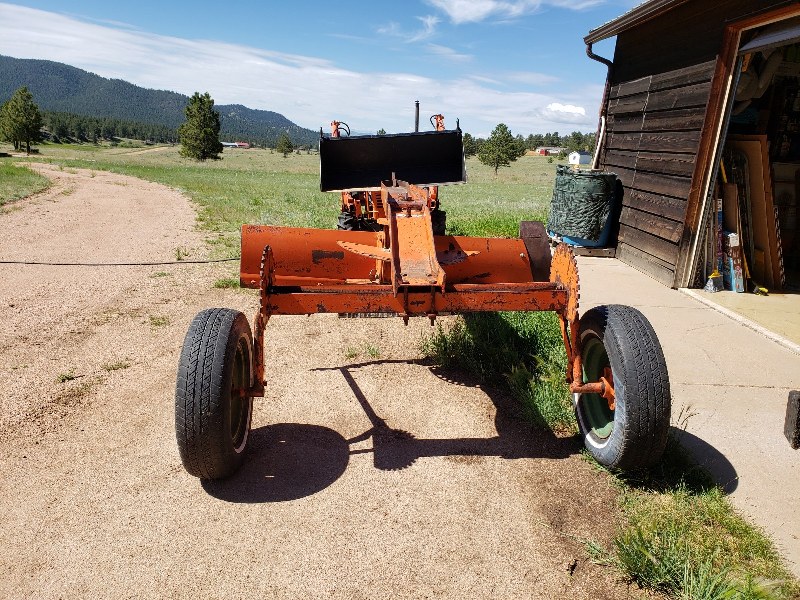

Nearly 30" of travel....



.....and you could make a serious crown with the available adjustment 😳



  • Like
Reactions: 2 users

woodman55

Well-known member

Equipment
L6060HSTC, RTV 1100
May 15, 2022
724
516
93
canada
Great find. I also was thinking hyd cylinders, but seeing the amount of travel you may need to go to motors and chains, to get the entire amount of travel.


BigG

Well-known member

Equipment
l2501, FEL, BB, Rotary cutter, rake,spreader, roller, etc. New Holland TL80 A
Sep 14, 2018
1,950
774
113
West Central,FL
Hitch that thing to the 3 point arms and with the manual adjustments just the way it is. You will have a great tool to maintain your road. Much more useful then a standard 3 point blade.

  • Like
Reactions: 1 user

PoTreeBoy

Well-known member
Lifetime Member

Equipment
L35 Ford 3930
Mar 24, 2020
2,344
1,180
113
WestTn/NoMs
  • Like
Reactions: 1 users

Vigo

Well-known member

Equipment
B6100, B8200
Jan 9, 2022
595
339
63
San Antonio Texas
That's a great piece for the price! I agree that it looks a LOT more capable than a regular 3pt blade, at least while moving forward!

I also agree about hooking it to a 3pt drawbar. That way you will still have the option to lift the blade off the ground from the operator's seat without getting off to go mess with those levers.


billrigsby

Active member

Equipment
L1500DT Too many implements, or is there such a thing?
Mar 17, 2015
994
134
43
Florissant CO USA 8213'
www.facebook.com
Hitch that thing to the 3 point arms and with the manual adjustments just the way it is. You will have a great tool to maintain your road. Much more useful then a standard 3 point blade.

That's a great piece for the price! I agree that it looks a LOT more capable than a regular 3pt blade, at least while moving forward!
I also agree about hooking it to a 3pt drawbar. That way you will still have the option to lift the blade off the ground from the operator's seat without getting off to go mess with those levers.
That was my thought, I have a draw bar and a spare pintle hitch,
(could also just pin it to the draw bar, but a pintle hitch will add versatility).
still nursing a shoulder surgery, but that's what neighbors are for.
(who do you think man handled those levers to check the articulation)!

Any refurbishing and painting will need to wait, but for now it is usable as is.

Computer time don't mess with the shoulder too much,

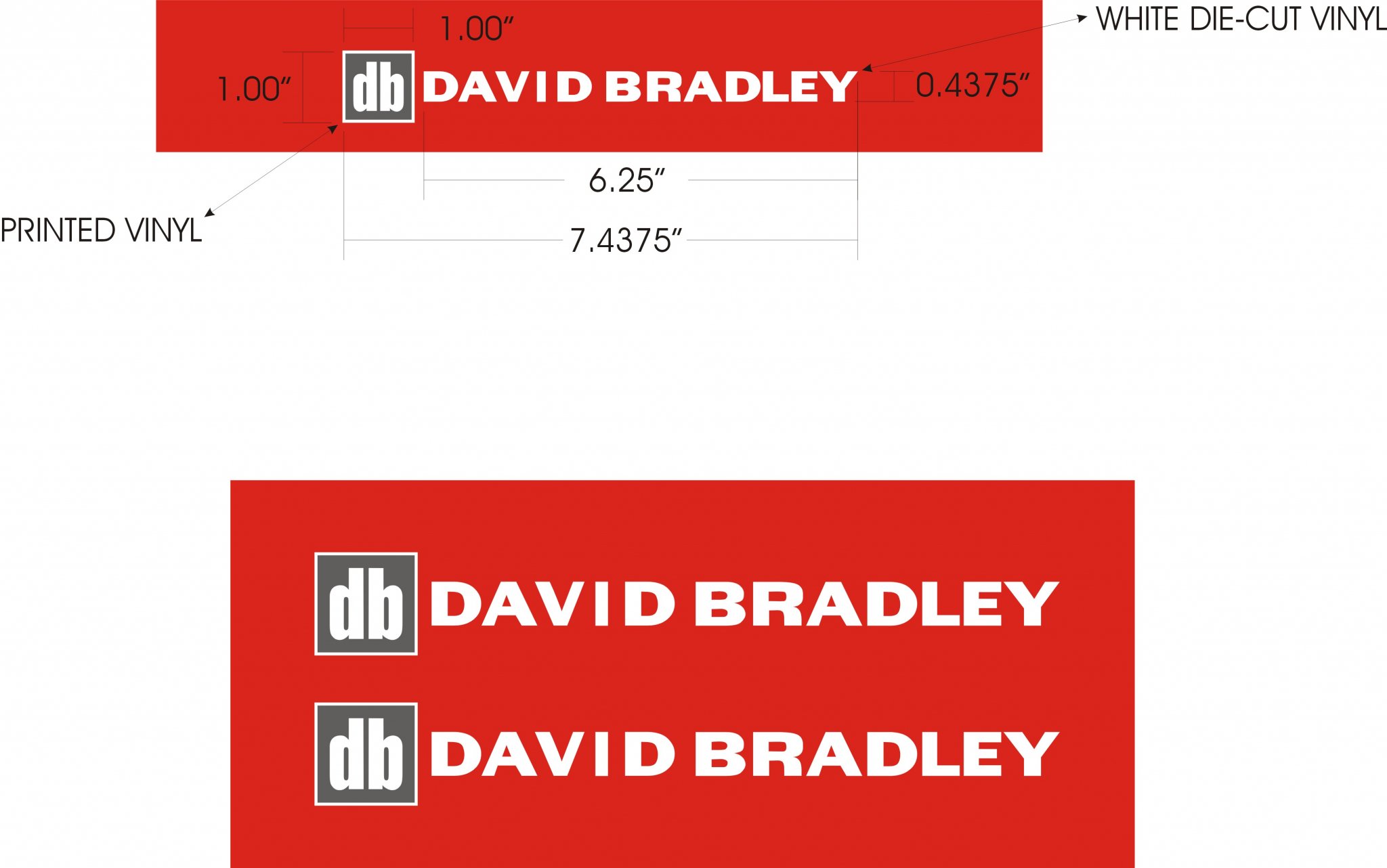

got'ta stay busy, working on new decals (needs some tweaking still).....

David Bradley Decal (2).JPG


David Bradley Decal.JPG

  • Like
Reactions: 1 users

bird dogger

Well-known member
Vendor Member

Equipment
Kubota B2650 and lots of other equipment
Feb 24, 2019
1,569
1,409
113
North Dakota

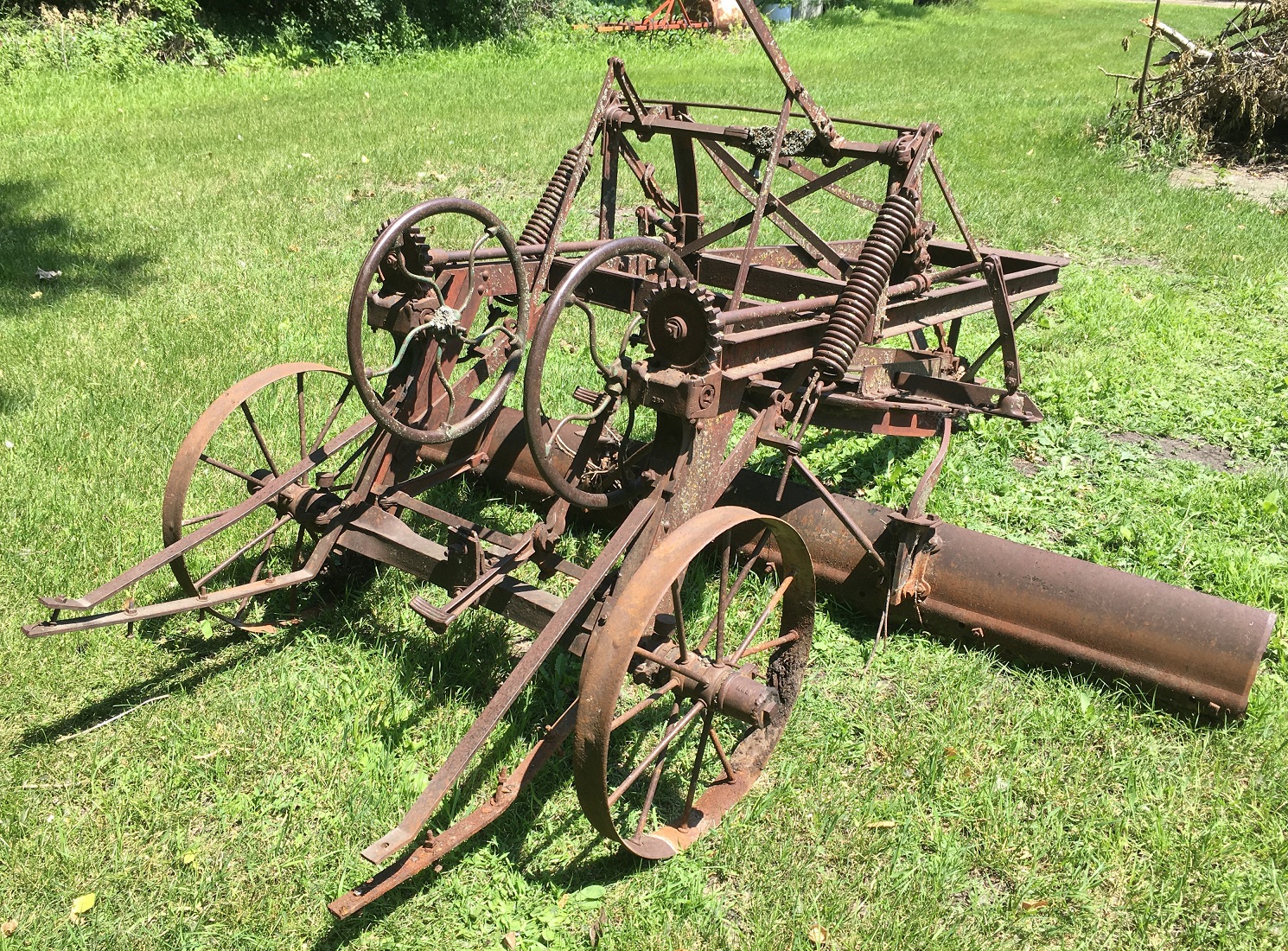

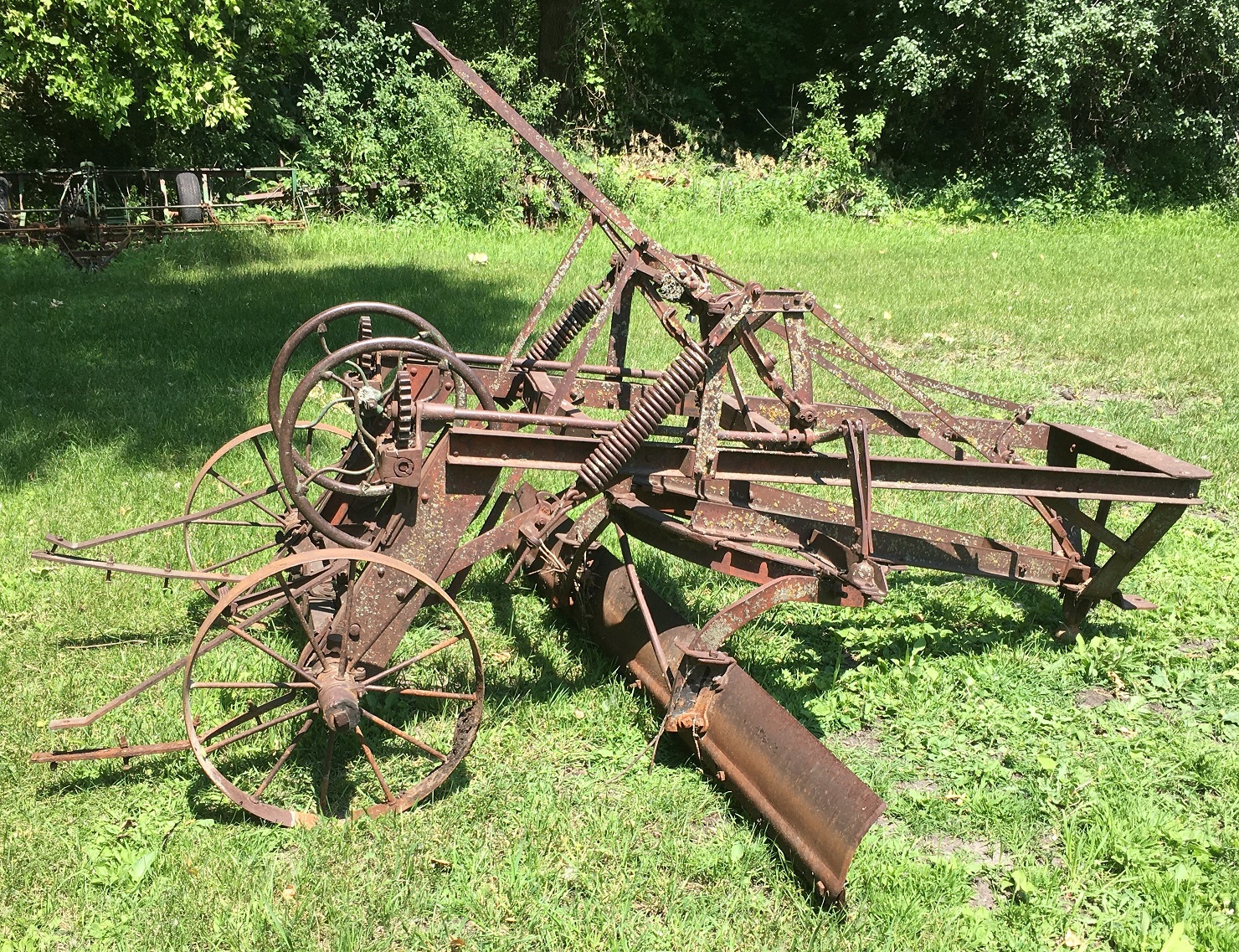

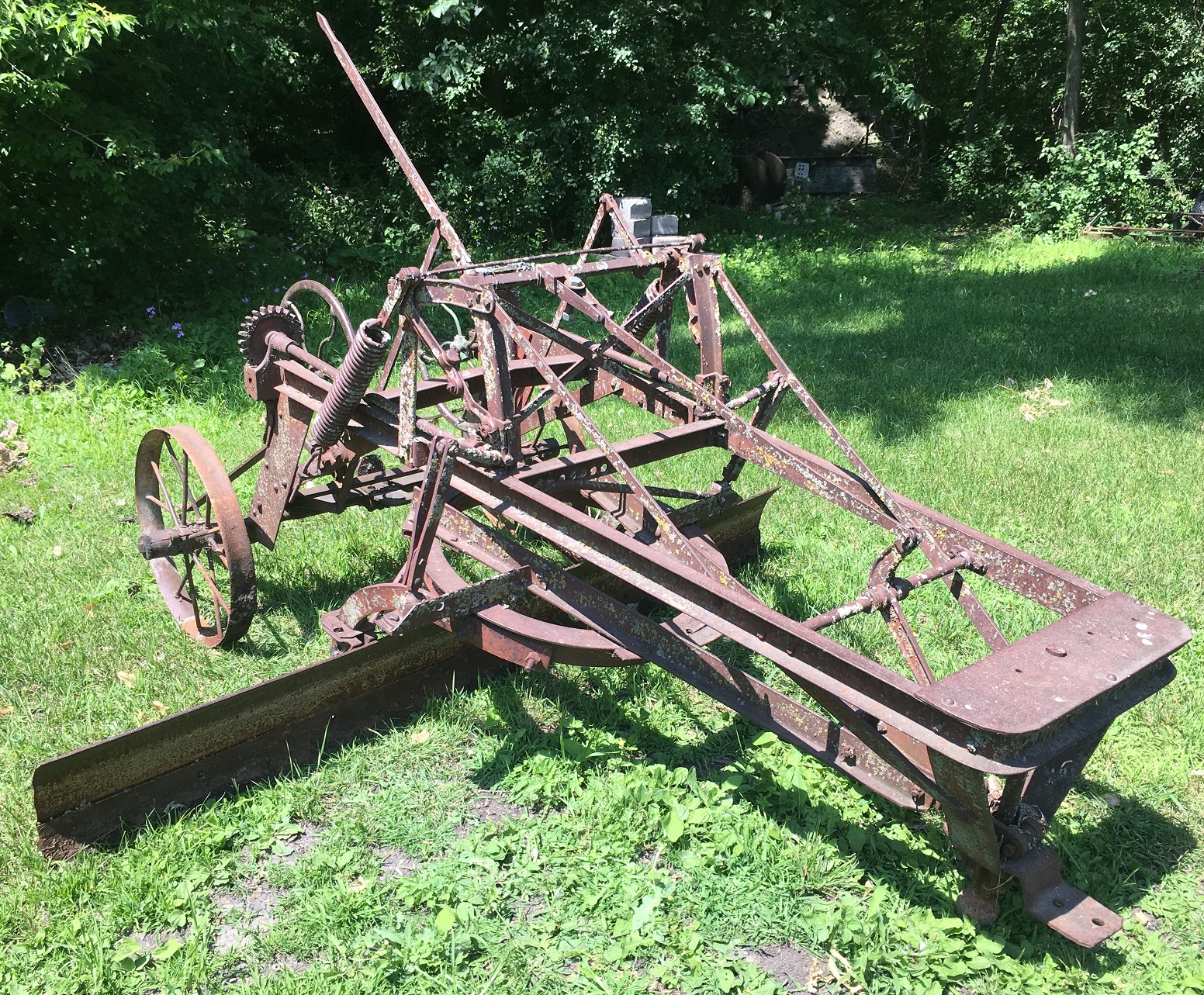

Bill, your grader is alot prettier than my old "township" grader!! Thinking this one started out as a horse drawn road grader. It was made in Minneapolis, Mn. but I forget the Mfg. It still functions great and I use it on the graveled area and driveway once or twice a year. It also did a find job making a slight slope in our 3 acre tillable garden spot for drainage. At some point, I'd like to put a better axle and rubber tires on it to replace the steel wheels.
The rear platform had rotted away where the rider would stand and operate the large handwheels for tilting and the levers for raising up and down. I just set it to level (or the angle/tilt I'm looking for) and pull it with a 3 pt. hitch drawbar so I can raise and lower it from the tractor seat.
It could use a good sandblasting and paint job at some point. Maybe when the axle gets re done. The steel wheels do prevent it from being borrowed and pulled down the highway by jealous friends! :ROFLMAO:
Road Grader.jpg Grader Controls.jpg Eight Foot Blade.jpg

You'll get some good use out of your machine!! I'll trade you!!

  • Like
Reactions: 1 users

woodman55

Well-known member

Equipment
L6060HSTC, RTV 1100
May 15, 2022
724
516
93
canada
Bill, your grader is alot prettier than my old "township" grader!! Thinking this one started out as a horse drawn road grader. It was made in Minneapolis, Mn. but I forget the Mfg. It still functions great and I use it on the graveled area and driveway once or twice a year. It also did a find job making a slight slope in our 3 acre tillable garden spot for drainage. At some point, I'd like to put a better axle and rubber tires on it to replace the steel wheels.
The rear platform had rotted away where the rider would stand and operate the large handwheels for tilting and the levers for raising up and down. I just set it to level (or the angle/tilt I'm looking for) and pull it with a 3 pt. hitch drawbar so I can raise and lower it from the tractor seat.
It could use a good sandblasting and paint job at some point. Maybe when the axle gets re done. The steel wheels do prevent it from being borrowed and pulled down the highway by jealous friends! :ROFLMAO:
View attachment 82853 View attachment 82854 View attachment 82855

You'll get some good use out of your machine!! I'll trade you!!
That's a great looking old rig, I would love to have one like it. If it was mine, I would replace the wood and leave it in it's "working clothes".

  • Like
Reactions: 1 user

billrigsby

Active member

Equipment
L1500DT Too many implements, or is there such a thing?
Mar 17, 2015
994
134
43
Florissant CO USA 8213'
www.facebook.com
Bill, your grader is alot prettier than my old "township" grader!! Thinking this one started out as a horse drawn road grader. It was made in Minneapolis, Mn. but I forget the Mfg. It still functions great and I use it on the graveled area and driveway once or twice a year. It also did a find job making a slight slope in our 3 acre tillable garden spot for drainage. At some point, I'd like to put a better axle and rubber tires on it to replace the steel wheels.
The rear platform had rotted away where the rider would stand and operate the large handwheels for tilting and the levers for raising up and down. I just set it to level (or the angle/tilt I'm looking for) and pull it with a 3 pt. hitch drawbar so I can raise and lower it from the tractor seat.
It could use a good sandblasting and paint job at some point. Maybe when the axle gets re done. The steel wheels do prevent it from being borrowed and pulled down the highway by jealous friends! :ROFLMAO:


You'll get some good use out of your machine!! I'll trade you!!
While mine may be prettier, to some, that is a true classic.
Even if it were all rusted together, it is fantastic 'yard art'
at the very least!

  • Like
Reactions: 1 user

bird dogger

Well-known member
Vendor Member

Equipment
Kubota B2650 and lots of other equipment
Feb 24, 2019
1,569
1,409
113
North Dakota
That's a great looking old rig, I would love to have one like it. If it was mine, I would replace the wood and leave it in it's "working clothes".
While mine may be prettier, to some, that is a true classic.
Even if it were all rusted together, it is fantastic 'yard art'
at the very least!
You guys are probably right! After thinking about it....I should just clean it up as is and keep it original as long as it still functions as is. Will have to do some research and see what the original colors were. Doubt it was rusty brown!! LOL!

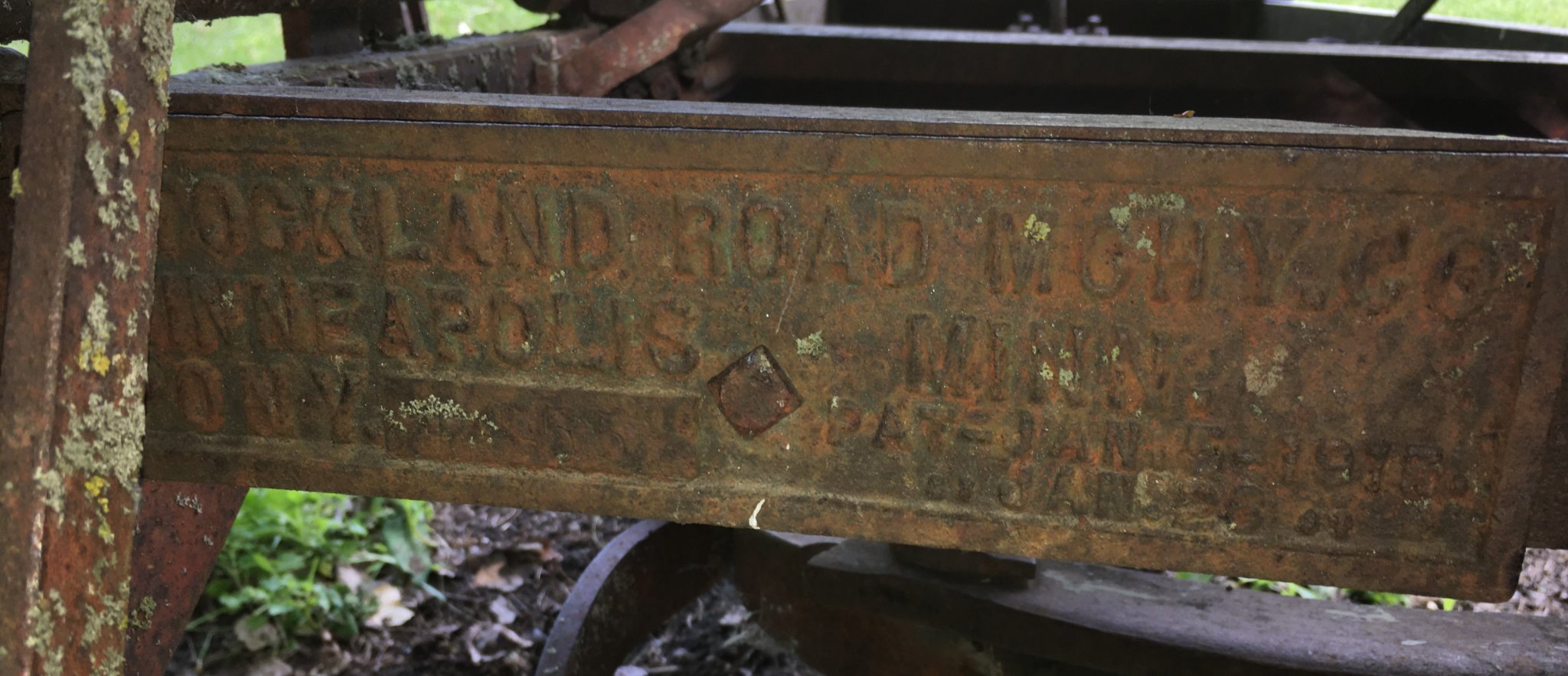

Your posts above got me curious again so I went and took some pics of the two spots that had some data cast in the framework. It's manufacturer was: Stockland Road Machinery Co., Minneapolis, Mn. (at least I had remembered the Minn. connection correctly). The Patent Date reads Jan. 5, 1915 so it's had a few road miles beneath it over the years.
The story behind it: A MN township had two of them up for written bids submitted by mail. This one was the nicer of the two by far. They had a suggested value of $50-$75 and doubted if they'd get much interest in them. My $100 bid won the nicest one. Two other bidders tied with something over $50 for the remaining one. So they put the 2nd one up on bids again and the winning bid was just over $150. This was in the real early '80s. I felt pretty good about my purchase after hearing that. LOL!

After surviving the scrap metal drives for WWII, the old grader maybe does deserve to be cleaned up and kept original. Maybe I can have it all dolled up for its sesquicentennial (150th) birthday?? :unsure:

stockland Road Machinery Co.JPG

Stockland Machinery Pat 1915.JPG
