D1-4 5C Lathe Chuck

[Lil Foot]

Perfect condition import 5C Lathe Chuck, $100 plus shipping.
Changed to a different style chuck, no longer need this one.
Also have some 5C collets for sale:
Post #12

Machinists/Toolmakers 5C Collet Swap?

I have (3) duplicate 5C collets, all Hardinge, used but serviceable, and wondered if any of you fellow Machinists/Toolmakers have any duplicates in your stash you'd like to trade? Sizes are: 1/4" round, w/internal thread 7/16" round w/o internal thread 1/2" round w/internal thread If...

www.orangetractortalks.com



[Lil Foot]

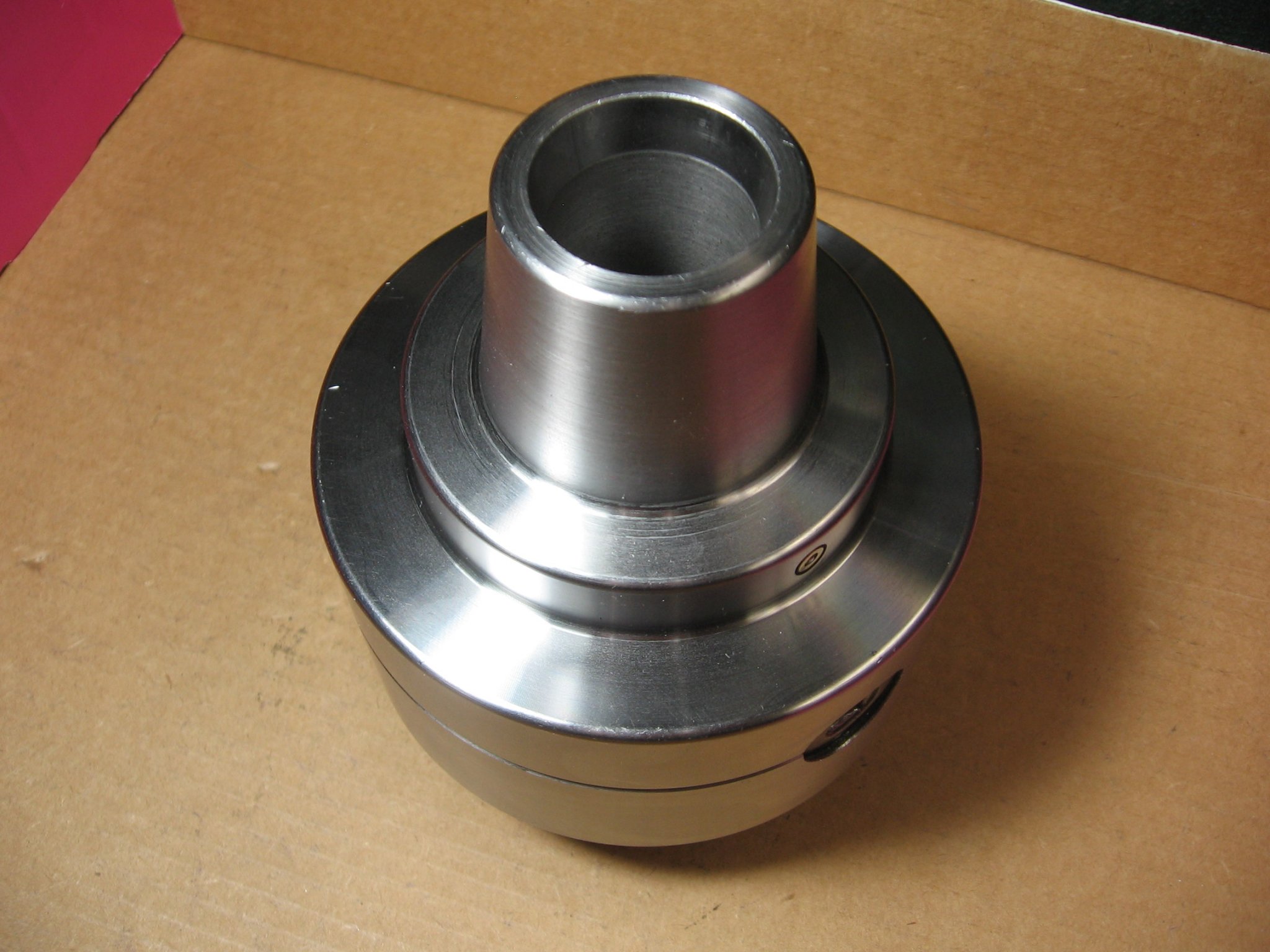

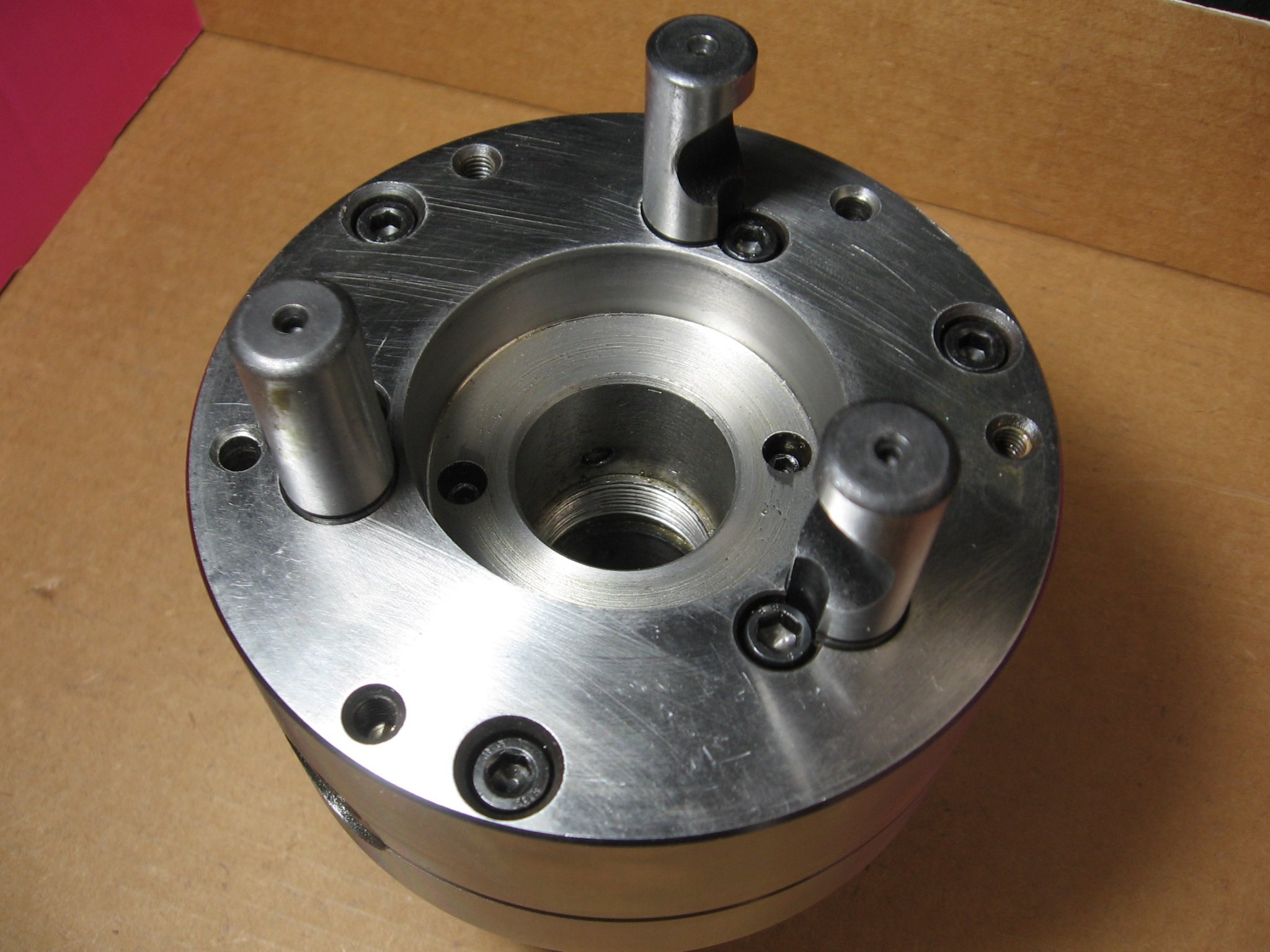

Forgot the pics:



[sparky45]

Who's the maker?



[Lil Foot]

It's a Bostar from CDCO Machinery.



[SidecarFlip]

Looks like a D1-3. It may fit one of my machines but I need the inner diameter of the bore and the depth as well. Is it 100 bucks including shipping or 100 shipping extra? What tightens the 5C collet in the chuck body? the chuck key? If you would, what is the TIR on the nosepiece?



[Lil Foot]

I guarantee it's a D1-4.
Check this handy chart:

Lathe Spindle Nose Mounting Systems

www.tools-n-gizmos.com

$100 plus shipping
Turning the t-handle key tightens/loosens the collets.
I always indicated the interior taper- if you just slap it on and tighten unevenly, TIR might be .005-.007.
Tighten gradually while reading a .0001 indicator, and I always got it .0005 TIR, usually less.



[Lil Foot]

Here is a great write up with drawings on how to adjust camlock pins on this style chuck:

https://cdn0.grizzly.com/manuals/t10459_m.pdf



[Lil Foot]

SALE PENDING



[Russell King]

SALE PENDING

Looks like you hit the jackpot on sales today!



[Lil Foot]

Yup, I just hope they follow through.



[Lil Foot]

SOLD! $100 + shipping
