Crank seized B7100D

IdahoNative

Active member

Equipment
Kubota B7100D 4x4, non-HST, FEL 1630
Jan 12, 2022
114
46
28
Florida, central
I posted "flywheel seized" last week. Suggestions were made to check the crank, so I strapped the crank pully...it would not budge.

As I stated in my first post, I recently purchased a B7100D. I replaced every fluid, it did not burn oil and the radiator stays full. I put about 36 hours on it. I was back-dragging sand in low, just crawling along. Heard a loud "snap" that appeared to come from the front right side of the engine. But I had hearing protection on, so who knows. It instantly shut down. No other noises or smells. Turn the key, and "thunk". Removed the starter and tried to rotate flywheel with a prybar. It didn't move. I can push it forward and backwards in any gear (all have the same level of resistance, not much) and neither the crank or flywheel moves. Neither one of those sounds normal.

I have no idea where to start.

If anything behind the flywheel failed catastrophically, I think the crank would still turn over, right?

If so, the problem is ahead of the bellhousing, right?

I pulled the valve cover off. Nothing exciting with the rocker arm, springs, etc. They all feel and react "normal". Should I pull the rocker assembly and push rods ad see if one is bent?

If I was correct that something snapped near the front right, could something have snapped in the injection pump cam shaft system that would seize the engine components?

Or should I keep going on the top, remove the head next to check for bent valves?

Dropping the oil pan is obvious, until I looked below. Looks like the front diff needs removed and perhaps the loader cross member.

Input is greatly appreciated.


Chanceywd

Well-known member
Lifetime Member

Equipment
Kubota L2501DT BH77 VIRNIG URG60-CT 1950 8N
Mar 26, 2021
556
390
63
central ny
Many years ago I went out this time of year to start my truck. It ran for a second quit and then wouldn't turn over to start. I know it isn't the same but I tried jumping, I tried a bar on the crank nut but it wouldn't move. I could see some deflection in the serpentine belt so I loosened that and then it would turn. It then started. What I then found it was the power steering pump set up solid and i replaced that.
So i am wondering if it could be the injection pump or hydraulic pump has set up. Just a passing thought from someone who has engine experience but not strong on diesels. Don't know what is involved with pulling them free to see.

Bill

  • Like
Reactions: 1 user

Henro

Well-known member

Equipment
B2910, BX2200, KX41-2V mini Ex.
May 24, 2019
5,116
2,341
113
North of Pittsburgh PA
Are you keeping the clutch pedal depressed when you are trying to rotate the engine crankshaft?

Can't help but think if not, even if in neutral, if the transmission was locked up for some reason, perhaps that is what is preventing the rotation of the crank, IF you are not depressing the clutch pedal, to break the mechanical connection between the transmission and the crank.

Just a thought...

Edit: But I guess you would depress the clutch when trying to start the engine, so a locked up transmission is unlikely the issue...


GSD-Keegan

Well-known member

Equipment
B2601 with Fel and Bh70 backhoe
Mar 6, 2021
532
686
93
Ontario, Canada
yes, make sure any accessory running from fan belt is not seized. Best to remove any drive belts.

You might consider draining part, or all of the oil into a clean drain pan and examine the oil for particles? And/or thru a strainer or filter of some sort.

  • Like
Reactions: 1 users

85Hokie

Moderator
Staff member
Lifetime Member

Equipment
BX-25D ,PTB. Under Armor, '90&'92-B7100HST's, '06 BX1850 FEL
Jul 13, 2013
10,271
2,104
113
Bedford - VA
Drain the oil and see if you have chunks of metal.
A cheap refridge magnet will help with this too, drop it in the container and swish around - pull out and examine.

  • Like
Reactions: 1 user

IdahoNative

Active member

Equipment
Kubota B7100D 4x4, non-HST, FEL 1630
Jan 12, 2022
114
46
28
Florida, central
Are you keeping the clutch pedal depressed when you are trying to rotate the engine crankshaft?

Can't help but think if not, even if in neutral, if the transmission was locked up for some reason, perhaps that is what is preventing the rotation of the crank, IF you are not depressing the clutch pedal, to break the mechanical connection between the transmission and the crank.

Just a thought...

Edit: But I guess you would depress the clutch when trying to start the engine, so a locked up transmission is unlikely the issue...
[/
Are you keeping the clutch pedal depressed when you are trying to rotate the engine crankshaft?

Can't help but think if not, even if in neutral, if the transmission was locked up for some reason, perhaps that is what is preventing the rotation of the crank, IF you are not depressing the clutch pedal, to break the mechanical connection between the transmission and the crank.

Just a thought...

Edit: But I guess you would depress the clutch when trying to start the engine, so a locked up transmission is unlikely the issue...
I did not depress the clutch while trying to turn the crank, but your edit makes sense. Regardless, I’m gonna try it with clutch depressed.
Thanks for your input.


85Hokie

Moderator
Staff member
Lifetime Member

Equipment
BX-25D ,PTB. Under Armor, '90&'92-B7100HST's, '06 BX1850 FEL
Jul 13, 2013
10,271
2,104
113
Bedford - VA
I did not depress the clutch while trying to turn the crank, but your edit makes sense. Regardless, I’m gonna try it with clutch depressed.
Thanks for your input.

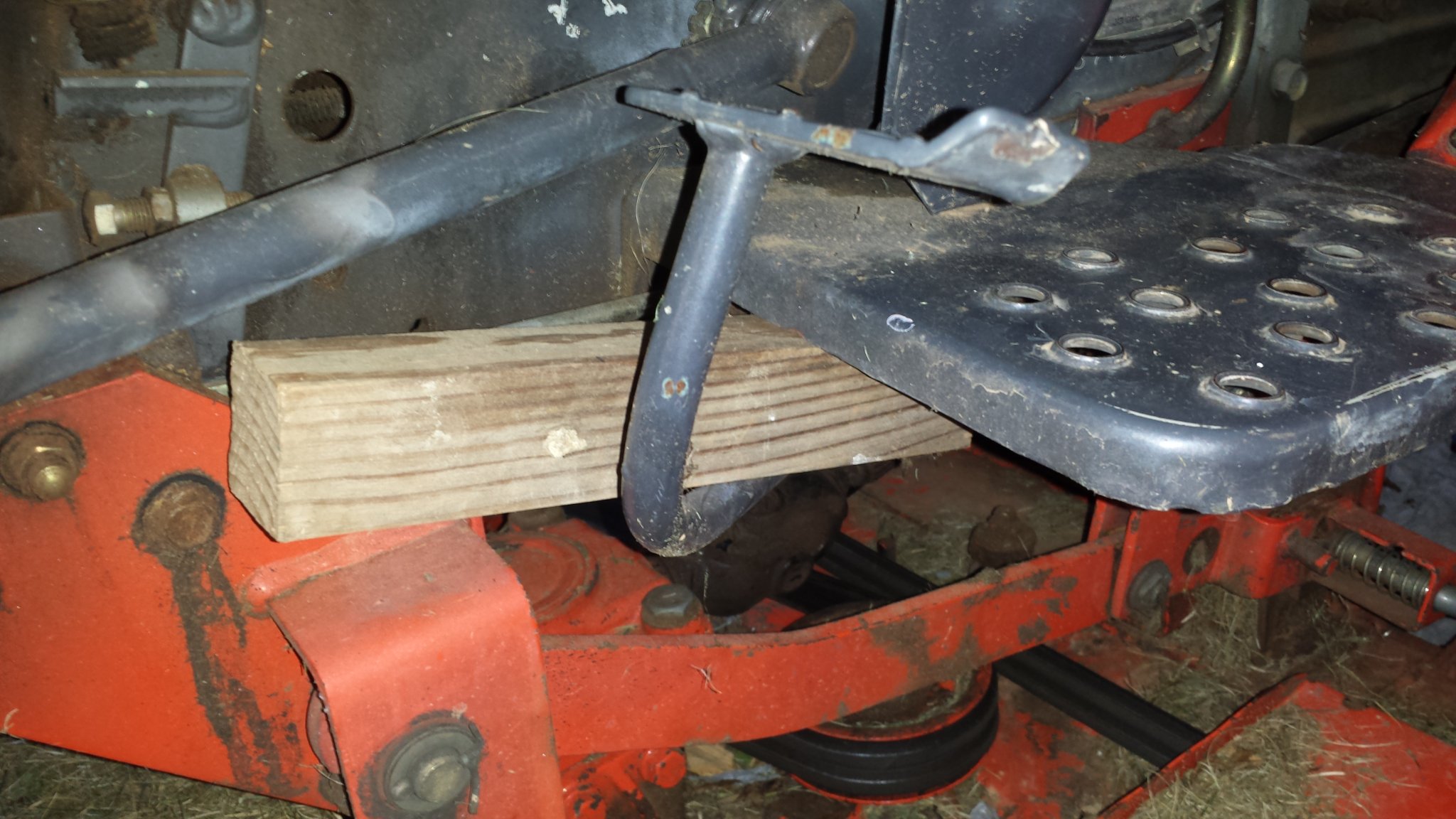

Place a block UP under the pedal .......... no need to have another person ;)
