CNC rubber mats for my L2501 HST

bmblank

Active member

Equipment
2020 L3901HST, LA525 Loader, 66" Q/A Bucket, PFL2042 Forks, Meteor SB68PT Blower
Mar 4, 2015
408
102
43
Cadillac, MI
Noice. You cut those on the CNC? You wouldn't happen to have a drawing/model you'd be willing to share, would you?

I don't have a CNC, but I do have access to a plotter, I could print out a 1:1 and try my best at cutting/drilling by hand.
I'm a little worried about sand/moisture getting underneath there and rotting the floorboard away, but at the same time, it's not as permanent (read, "easier to back out of") as going the rhino lining way.


Roadworthy

Well-known member
Lifetime Member

Equipment
L2501 HST
Aug 17, 2019
1,121
195
63
Benton City, WA
My first forum. I shared these on someone else’s existing forum but not sure that was the correct way. I made some rubber mats for my L2501 HST. They should fit other L series HST models if interested. Easy to install and remove for cleaning.
Are these offered for sale or just showing what you can do? I think I saw them somewhere else held in place with elevator bolts.


Hawk67

Member

Equipment
2020 L2501 HST
Dec 18, 2020
35
25
18
South Carolina
I saw the ones you are referring too and those mats did use elevator bolts. The ones I make do not need elevator bolts. The holes let’s the mats drop in place and stay put.
Yes, I will sale these if there is interest. Message me if you would like a set.


Hawk67

Member

Equipment
2020 L2501 HST
Dec 18, 2020
35
25
18
South Carolina
I want to take a moment and thank all who have purchased mats and I have enjoyed the conversations we have had! I continue to offer mats for some of the L-series HST and now include some of the L-series DT models. After searching Messick’s & Kubota’s website here is a list of compatible models I found. There may be other compatible models that I didn’t search. The mats are easy to install and remove for cleaning no hardware needed. Send me a PM if interested. Thanks

HST models (RH Pan Prt# TC420-57483)
L2501, L3301, L3901, L3200 (serial# > 84376), L3800 (serial# > 84931

DT Models (RH Pan Prt# TC420-29900
L2501D, L2501F, L3200Dt, L3200F, L3800Dt, L3800F

Mats to fit the DT models listed below are still in design:
L3301DT (RH Pan# TC620-29902)
L3301F (RH Pan# TC620-29902)
L3901DT (RH Pan# TC620-29902)
L3901F (RH Pan# TC620-29902)

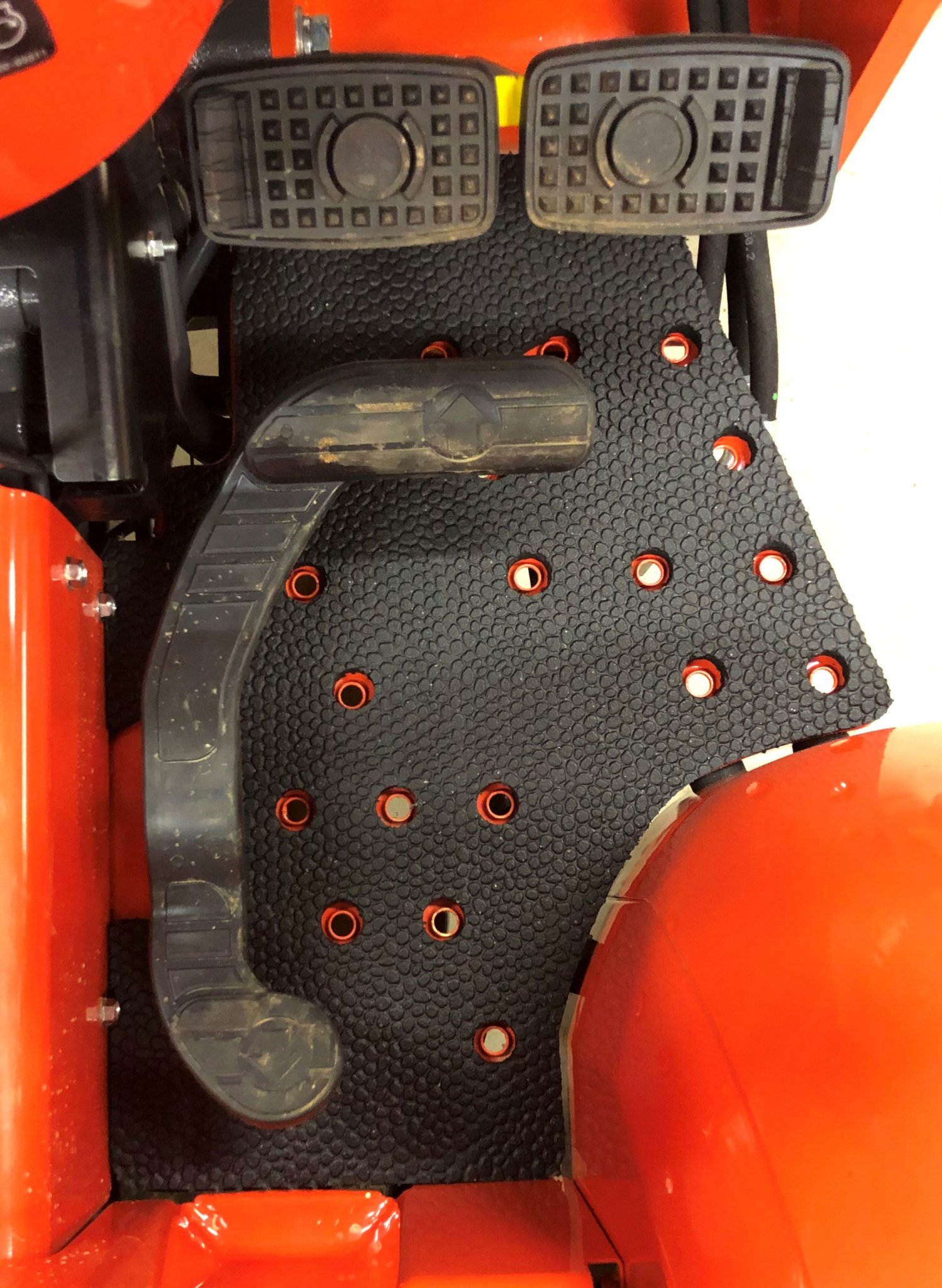

Left Mat HST & DT.jpg Right Mat HST 1.jpg Right Mat HST 2.jpg Right Mat DT 1.jpg Right Mat DT 2.jpg

Last edited:
  • Like
Reactions: 1 user

RichOzz

New member

Equipment
L2501 LA525QA BH77 RCR1260 BB1260
Aug 26, 2021
1
1
3
MA
Ken-I'm interested in purchasing a set of mats for the L2501HST
Thanks,
Rich

  • Like
Reactions: 1 user

rtm

New member

Equipment
L2501
Jun 24, 2020
1
2
3
Missouri
I order a set of floor mats from Ken for my 2501 hst about a week ago. He made them and shipped the very quickly and they are a perfect fit. Thanks Ken for making a great product.

Ryan McFarlen

  • Like
Reactions: 1 users

leveraddict

Active member

Equipment
2017 BX23S 60 Landpride box blade 54" belly mower 60" County line back blade
Apr 1, 2019
257
88
28
Madison,Pa.
A mat is nice to have and I wouldn't be without one, but pull them up every now and then and clean the floor. They are notorious for holding mud and water which causes...well you know. I just removed my BX mat for the first time and it looks like I have some work to do tomorrow.


Hawk67

Member

Equipment
2020 L2501 HST
Dec 18, 2020
35
25
18
South Carolina
A mat is nice to have and I wouldn't be without one, but pull them up every now and then and clean the floor. They are notorious for holding mud and water which causes...well you know. I just removed my BX mat for the first time and it looks like I have some work to do tomorrow.
Agree, issues may arise with a fully covered mat that is held down with trim. That makes it not as convenient to remove, clean and/or air dry. The ones I make are easy to install and remove without any hardware so I pull mine and rinse both, mats and Floor pans after heavy use in mud. You bring up a valid point.


scratchnsniff

New member

Equipment
2021 L3901HST
Aug 10, 2021
9
1
3
NE Ohio
Ken shipped my L3901 mats immediately. They are heavy duty and a perfect fit - I couldn’t be happier!

These should be standard equipment. Do yourself a favor and order a set NOW. No regrets here!

  • Like
Reactions: 1 user

OrangeKrush

Active member

Equipment
BX2680, LA344 with Piranha tooth bar, LP PF 1242, LP Rear Blade, KK 60" BB
Nov 15, 2020
474
169
43
Indy
So when does production start on other models.. You just going to leave us out??😁

  • Like
Reactions: 1 user

Hawk67

Member

Equipment
2020 L2501 HST
Dec 18, 2020
35
25
18
South Carolina
So when does production start on other models.. You just going to leave us out??😁
Lol, I really wish I was able accommodate all of the different models. My dilemma is finding other models in my area so I can personally go measure and captured the design in CAD. If I could think of an easy way were people could make templates and send them to me I might could make that work. It would need to be simple for the requestor, but detailed enough so I could create CAD models from it. I'm open to ideas.


Hawk67

Member

Equipment
2020 L2501 HST
Dec 18, 2020
35
25
18
South Carolina
Ken shipped my L3901 mats immediately. They are heavy duty and a perfect fit - I couldn’t be happier!

These should be standard equipment. Do yourself a favor and order a set NOW. No regrets here!
Thanks Scratchnssniff for the feedback! I'm glad you like them....


Tornado

Active member
May 7, 2019
752
207
43
usa
Hawk, I would be interested in getting the details on a set of these for L2501. Price, how you accept payment, etc. They look great.

  • Like
Reactions: 1 user

69 SS

Member

Equipment
2015 L3901 HST,with Canopy,LA 525 FEL with SSQA bucket
Sep 26, 2015
80
11
8
Ft. Inn sc
Hey Hawk, just wondering how well they stay in place,specifically my tractor would be running 60 mph + - on my trailer,tractor would be facing forward. PM me with answer and price. Neat idea 💡. Thanks, L 3901 HST with clutch pedal like in first Pic you show.

  • Like
Reactions: 1 user

Hawk67

Member

Equipment
2020 L2501 HST
Dec 18, 2020
35
25
18
South Carolina
Hey Hawk, just wondering how well they stay in place,specifically my tractor would be running 60 mph + - on my trailer,tractor would be facing forward. PM me with answer and price. Neat idea 💡. Thanks, L 3901 HST with clutch pedal like in first Pic you show.
Hello, I sent you a PM through this form. Thanks


UnionParish45

New member

Equipment
L2501
Aug 29, 2021
6
1
3
Bernice, LA
My first forum. I shared these on someone else’s existing forum but not sure that was the correct way. I made some rubber mats for my L2501 HST. They should fit other L series HST models if interested. Easy to install and remove for cleaning.
What do the rubber mats do for you besides protect the paint on the floorboard?

Thanks!

  • Like
Reactions: 1 user

Hawk67

Member

Equipment
2020 L2501 HST
Dec 18, 2020
35
25
18
South Carolina
What do the rubber mats do for you besides protect the paint on the floorboard?

Thanks!
i find if your using the tractor for long periods at a time it reduces vibration on your feet. It also helps me when using my toes to lift the treadle pedal for reverse.
