BX23S/BT603 Bracket failure

DHARVE3

New member

Equipment
BX23S
Jul 26, 2020
8
0
1
Townsend, Tn

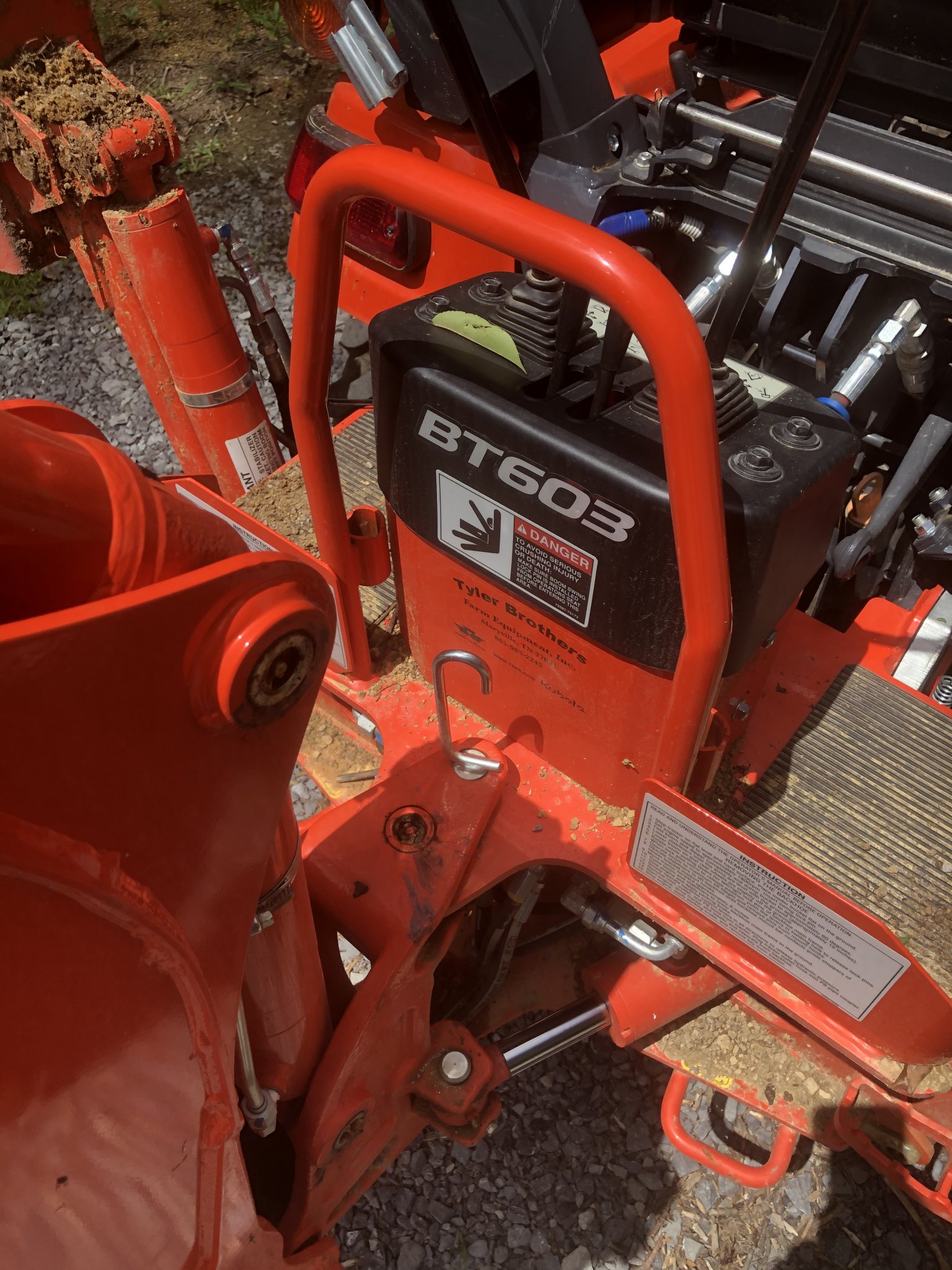

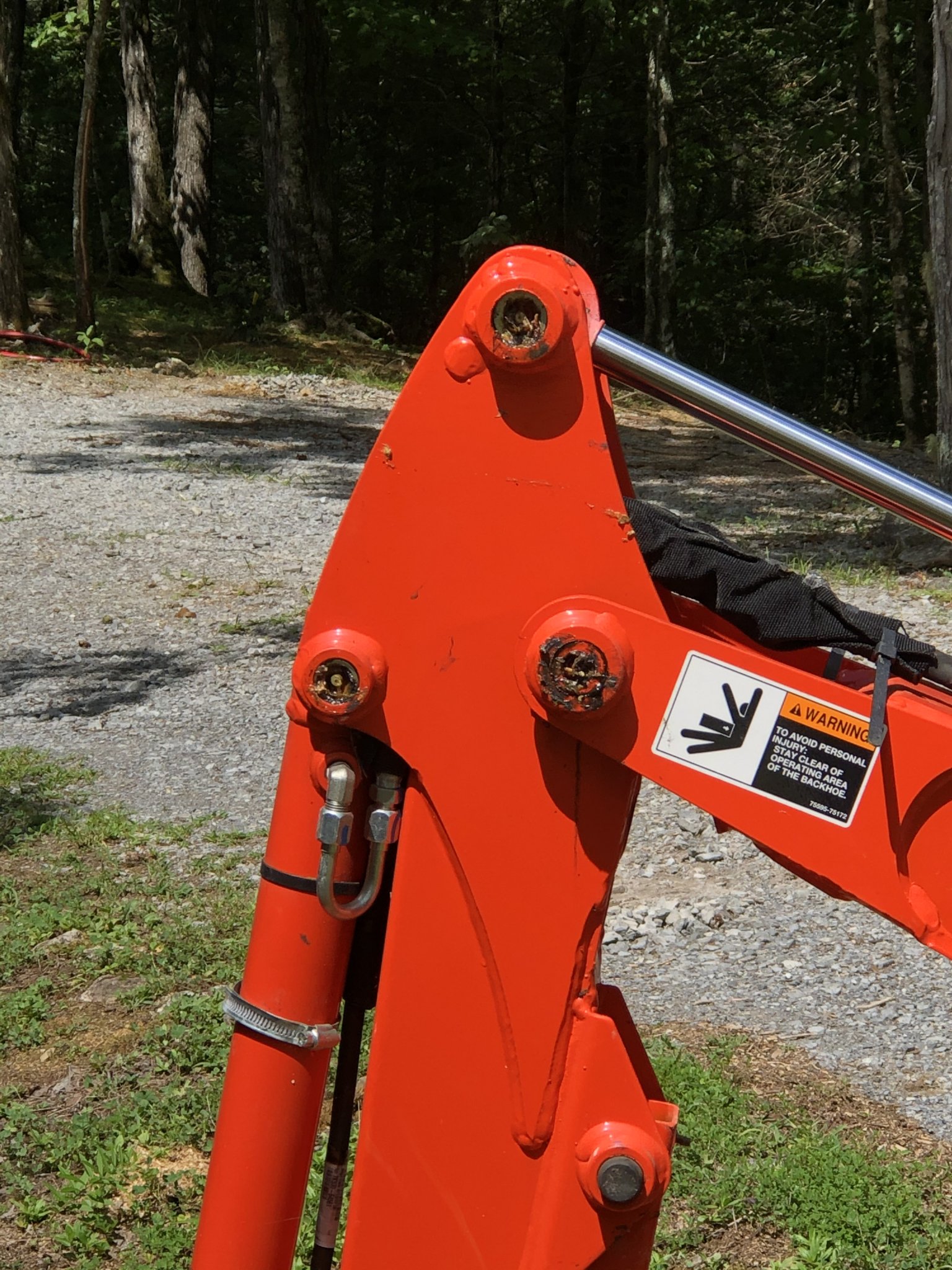

My tractor has just over 100 hours in it. The majority of those hours has been spent planting trees but I have dug up some small pine and cedar stumps.

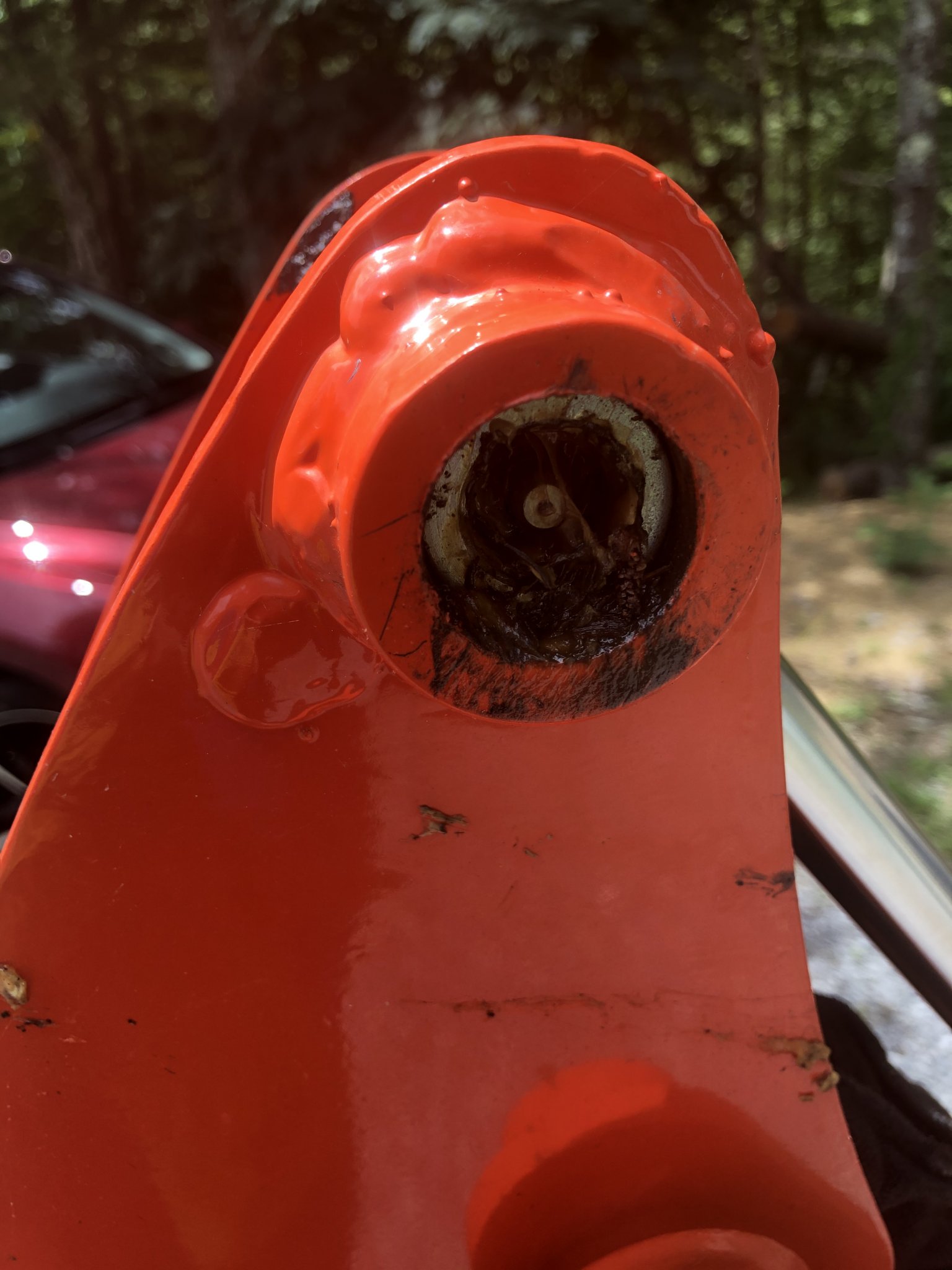

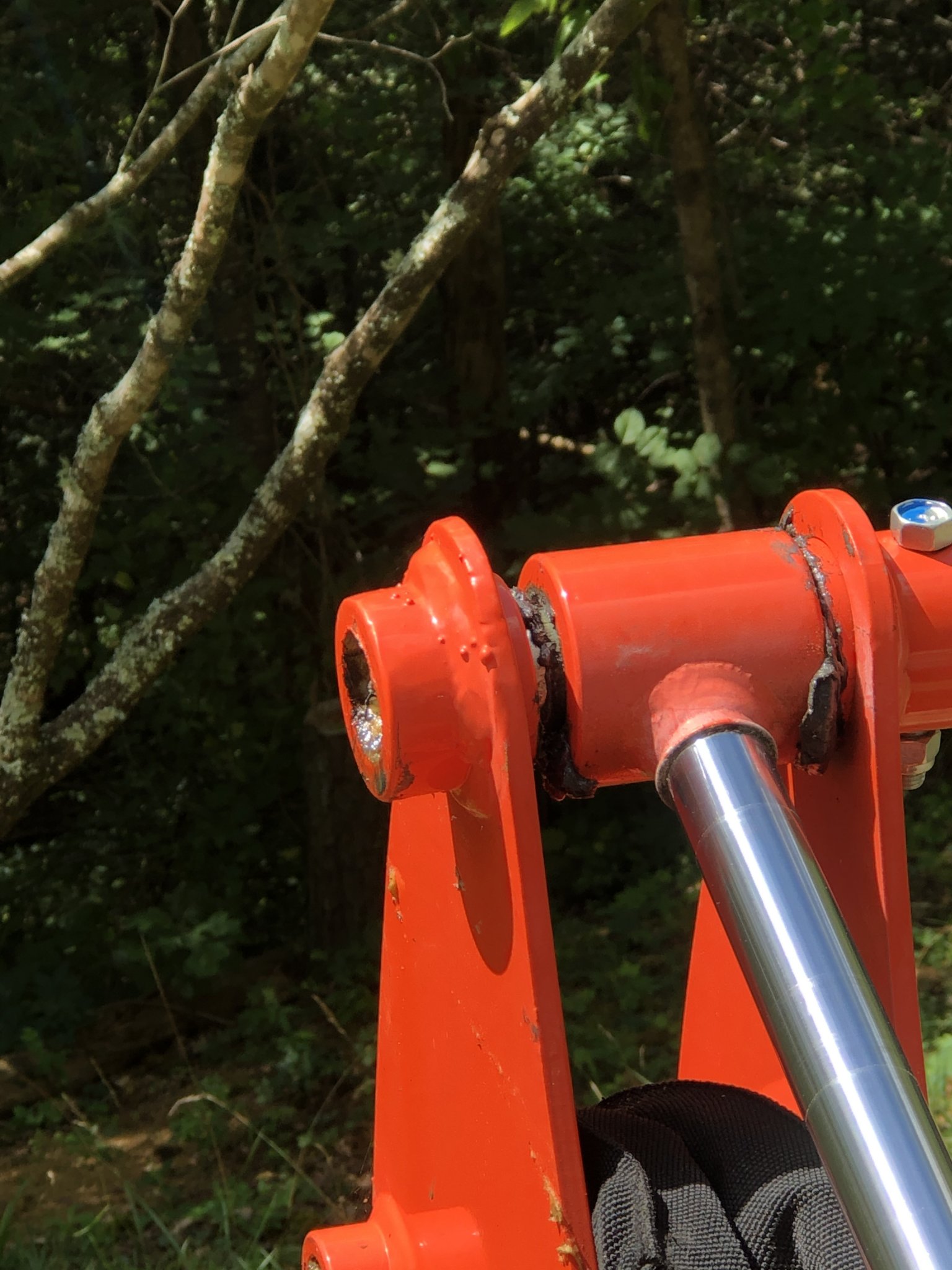

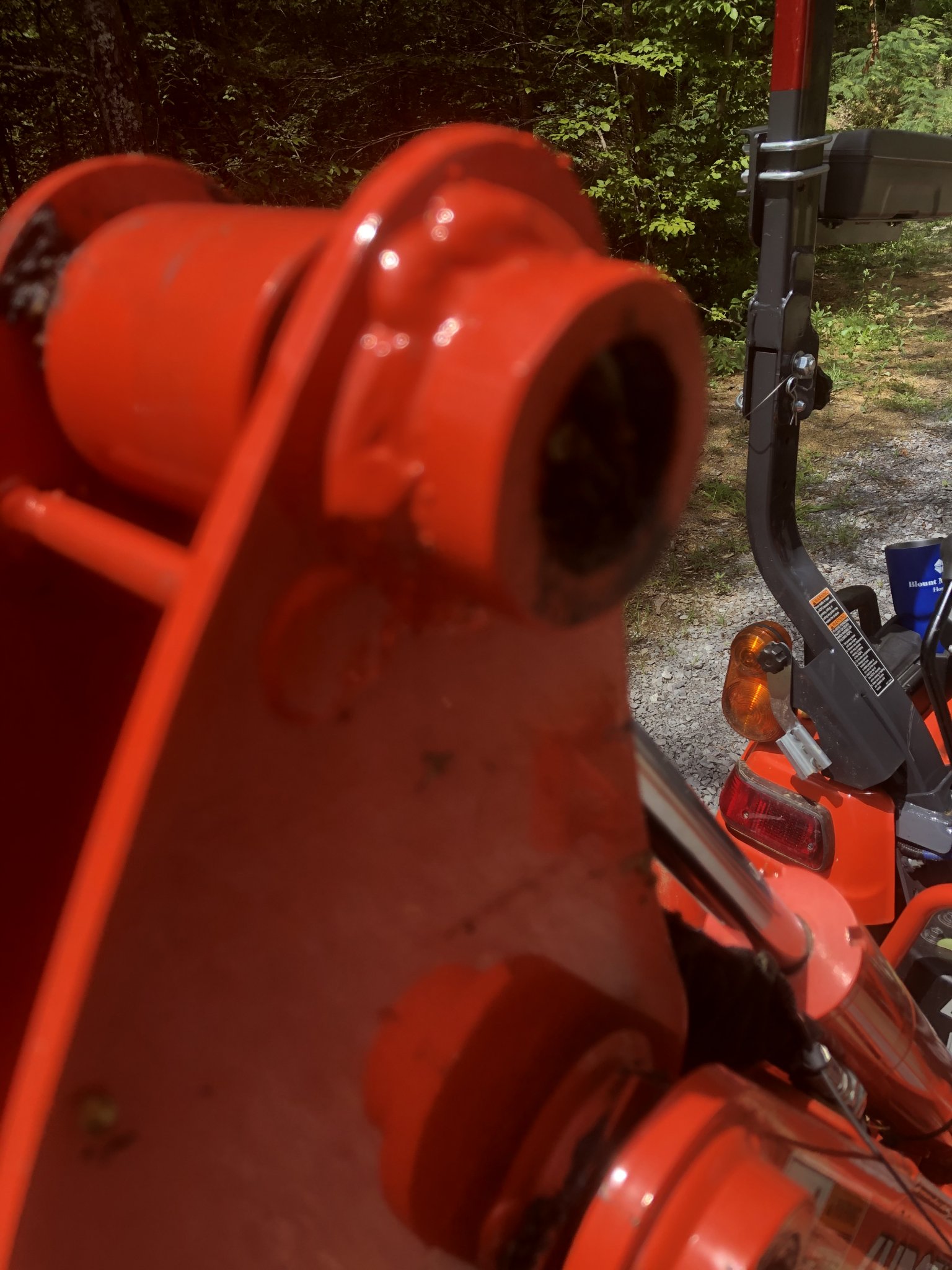

i’m seeing a bracket slowly failing and it now appears to be about 1/4 inch out a place and the cylinder pin is in a bind. people want to accuse me of lateral movement of the backhoe against a solid object like the wall of a hole, which causes the bracket to bend. I do sometimes swing the back hole so that the bucket moves the loose dirt over away from the hole but that’s about the extent of it.
Is anyone else seeing this failure?


Attachments

Henro

Member

Equipment
B2910, BX2200
May 24, 2019
293
12
18
North of Pittsburgh PA
It seems like side thrust on the bucket should show up at the pivot pin between the boom and stick. NOT at the pin for the cylinder.

Does the pivot pin for the boom/stick seem normal, or is there an issue there as well?

Somehow the pictures you posted do not add up in my mind as being the result of pushing some loose dirt sideways with the bucket, although that is not recommended, at least not on my backhoe (but yes, I do it once in a while too).

If the pivot pin area is normal and the cylinder pin section is bent out my guess would be something other than side thrust on the bucket is the cause.

edit: Of course if the pivot pin area shows distortion, geometry says any spreading there would show up much more at the cylinder pin area.


DHARVE3

New member

Equipment
BX23S
Jul 26, 2020
8
0
1
Townsend, Tn
The main pivot pin is not as accessible as the cylinder pin and is more difficult to check. It looks fine but that doesn't mean its not damaged. I have received a photo from another Kubota owner who seems to have the same issue. (See Photo)

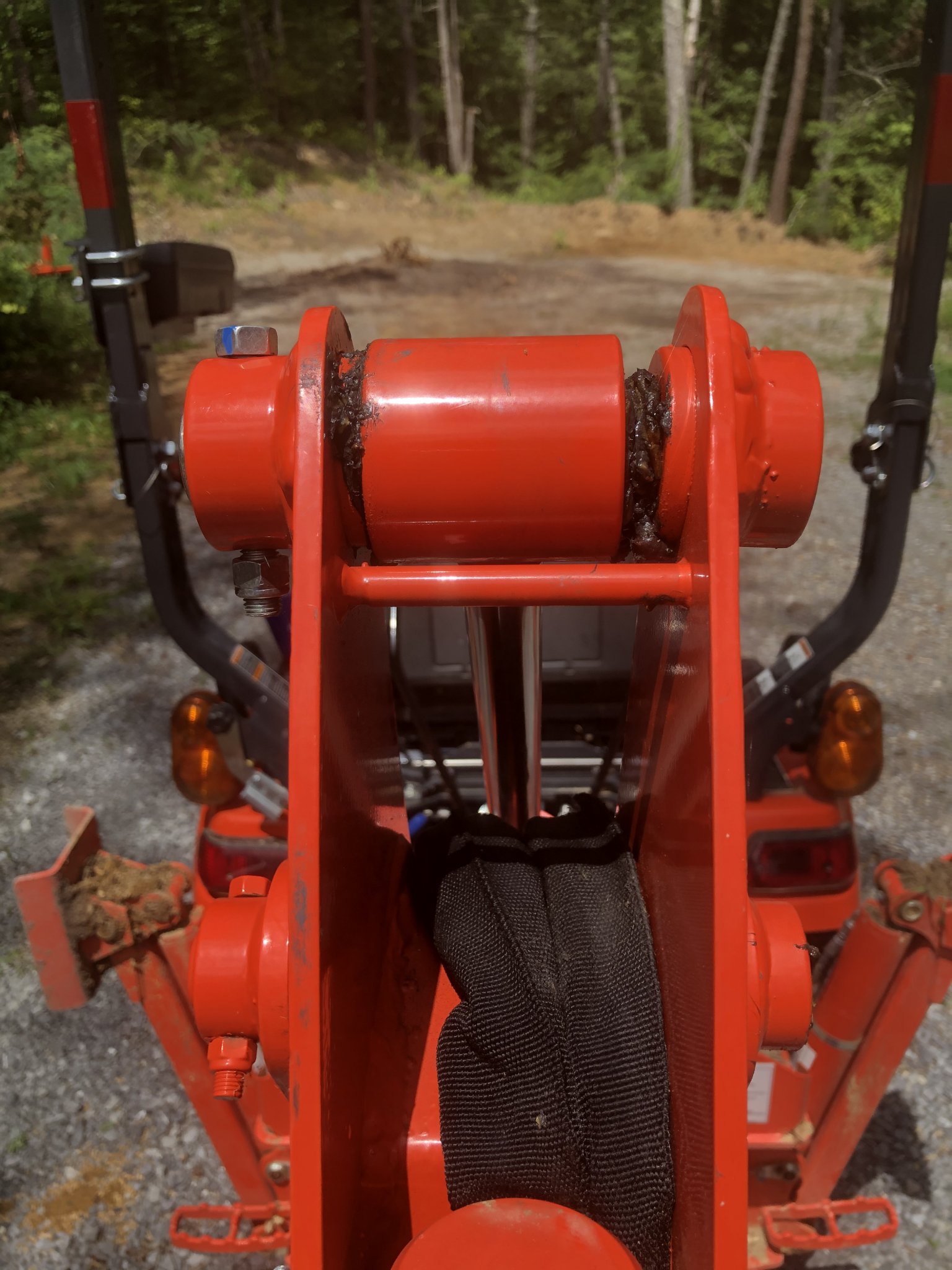

I guess its easy to say now, but compared to the rest of the construction, this bracket just looks flimsy. A round pin has been welded between the brackets as if added to strengthen the brackets. Maybe as an after thought.

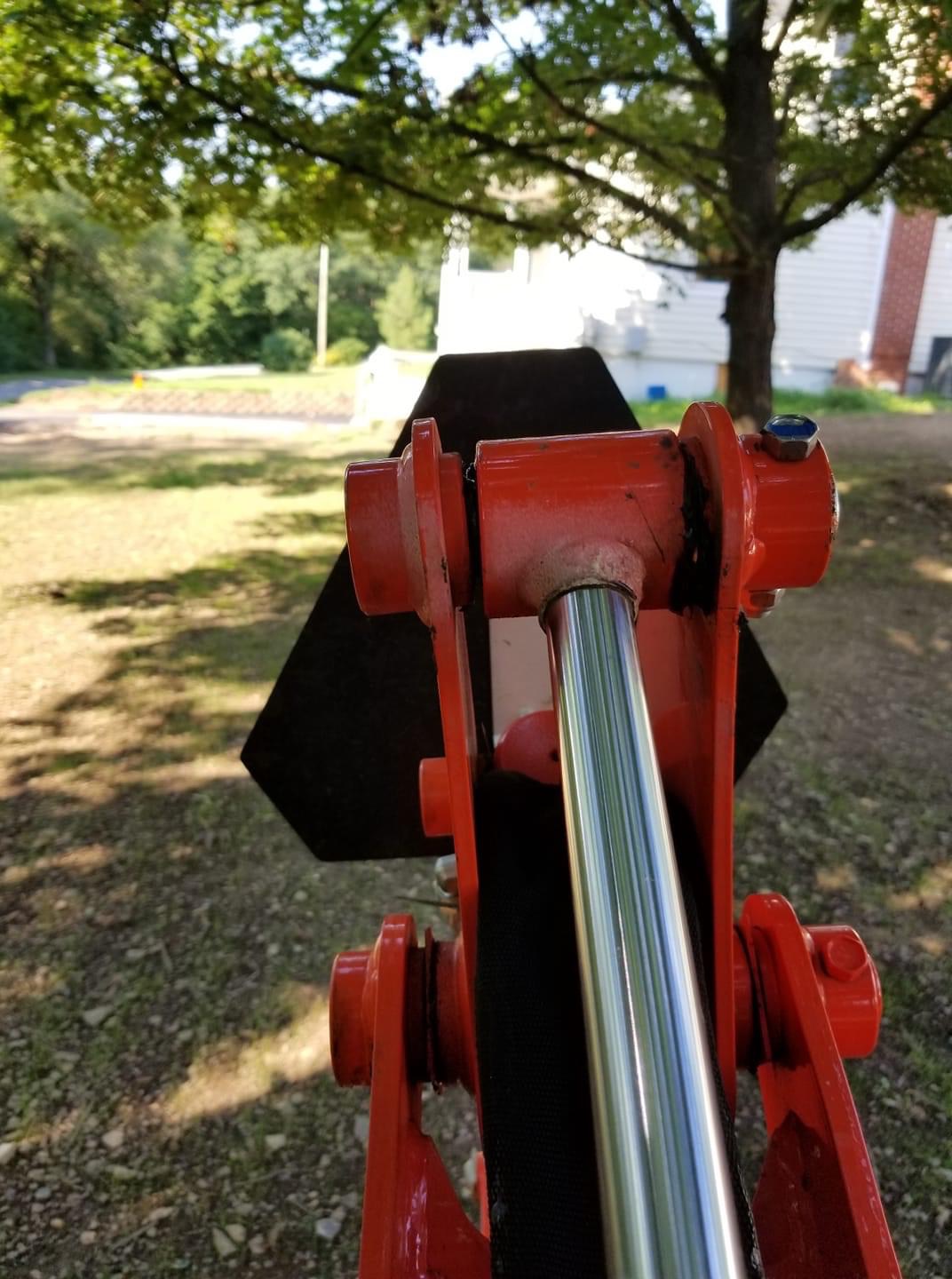

Bent Bracket another owner.jpeg




It seems like side thrust on the bucket should show up at the pivot pin between the boom and stick. NOT at the pin for the cylinder.

Does the pivot pin for the boom/stick seem normal, or is there an issue there as well?

Somehow the pictures you posted do not add up in my mind as being the result of pushing some loose dirt sideways with the bucket, although that is not recommended, at least not on my backhoe (but yes, I do it once in a while too).

If the pivot pin area is normal and the cylinder pin section is bent out my guess would be something other than side thrust on the bucket is the cause.

edit: Of course if the pivot pin area shows distortion, geometry says any spreading there would show up much more at the cylinder pin area.


GreensvilleJay

Well-known member

Equipment
BX23-S
Apr 2, 2019
1,140
34
48
Greensville,Ontario,Canada

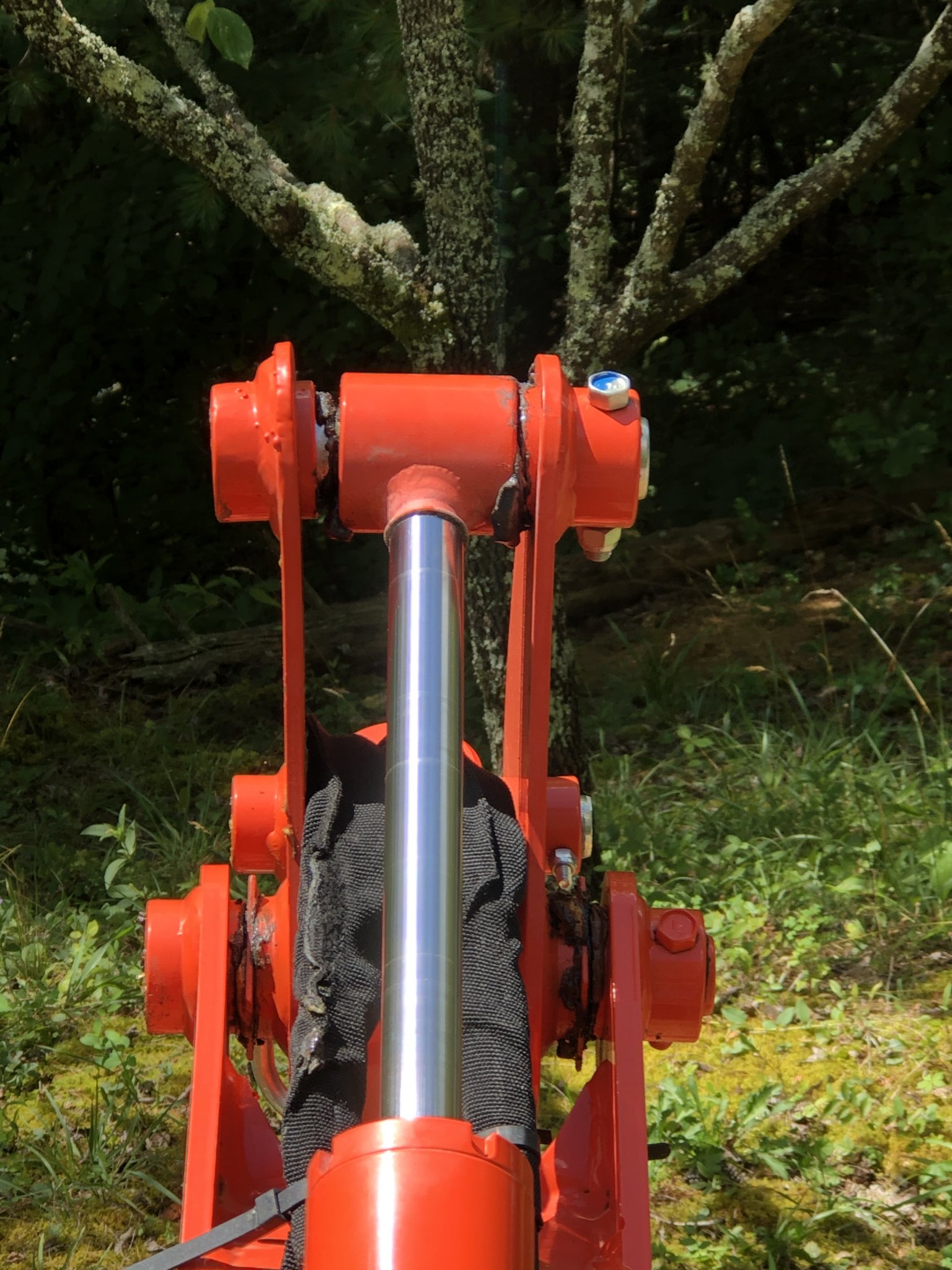

MIne's got 325hrs in 2 years, haven't 'babied' it but I can't figure out HOW they got bent. In the 6th picture, there's some marks below the pivot pin area. Maybe hitting it there has caused the 'plate' to spring outward ?? I know I'll be looking at mine tomorrow. Curiously i wonder why the pin isn't fixed on both sides. Oh well..please keep us updated !!
Jay


Henro

Member

Equipment
B2910, BX2200
May 24, 2019
293
12
18
North of Pittsburgh PA
Have you tried to remove the pin at the cylinder rod end?

it certainly looks like it is bent and will not come out. But photos can be deceiving.

Can an you hold a small straight edge against both of those ears (or whatever you call them) and see if one is straight and the other curved? Might give a little more insight.

Agree that that pin welded in looks like an attempt to keep those two ears (or whatever you call them) pulled together.


DHARVE3

New member

Equipment
BX23S
Jul 26, 2020
8
0
1
Townsend, Tn
MIne's got 325hrs in 2 years, haven't 'babied' it but I can't figure out HOW they got bent. In the 6th picture, there's some marks below the pivot pin area. Maybe hitting it there has caused the 'plate' to spring outward ?? I know I'll be looking at mine tomorrow. Curiously i wonder why the pin isn't fixed on both sides. Oh well..please keep us updated !!
Jay
I contacted my dealer who said he’s never heard of a problem like this before. I sent him all the photos that I have posted in this thread and also photos of the serial number plate and the hourmeter as requested. He says he sent all of this information to Kubota’s dealer support unit who will instruct him on how to proceed. He told me it may be 2 to 3 days and that was yesterday. Maybe I’ll hear something by the first of the week.


GreensvilleJay

Well-known member

Equipment
BX23-S
Apr 2, 2019
1,140
34
48
Greensville,Ontario,Canada
I looked at the single, big picture and 'mechanically' the only way I can see the plate getting bent is if the arm was all the way out and swung like a basebal bat,swing left to right, at full speed, the full 'arc' and hit a big tree trunk. 'hitting' the sidewalls of a trench can't do that damage, you need a LOT of energy,interia,speed, mass... whatever 'sciencey' terms describe the event.
When the bucket hits the tree,it'd want the left(now bent section) to keep going right, can't and the left side of the ram pivot end to 'whack' the inner side of the frame to push it out.
I just don't think that's possible let alone probable as the BX23S ain't a huge,powerful machine. Even if you were 'ground sweeping' ( arcing dirt back into a trench and dead stopping) , I can't see this bending happening.
curious and curiouser.....

had a look at mine. it has that welded pin at the top. I assume that's a factory revision to keep it parallel. My side frames measure 3.5" outside to outside,even after 2 years of use( and some abuse...). Have to I have to admit 1/4" plate for the frames does seem a tad 'thin'.
Jay

Last edited:

DHARVE3

New member

Equipment
BX23S
Jul 26, 2020
8
0
1
Townsend, Tn
I will let you know what happens. I still think it is a issue of hydraulic power exceeding the design strength.


I looked at the single, big picture and 'mechanically' the only way I can see the plate getting bent is if the arm was all the way out and swung like a basebal bat,swing left to right, at full speed, the full 'arc' and hit a big tree trunk. 'hitting' the sidewalls of a trench can't do that damage, you need a LOT of energy,interia,speed, mass... whatever 'sciencey' terms describe the event.
When the bucket hits the tree,it'd want the left(now bent section) to keep going right, can't and the left side of the ram pivot end to 'whack' the inner side of the frame to push it out.
I just don't think that's possible let alone probable as the BX23S ain't a huge,powerful machine. Even if you were 'ground sweeping' ( arcing dirt back into a trench and dead stopping) , I can't see this bending happening.
curious and curiouser.....

Jay


cal1

New member

Equipment
BX24
Jul 9, 2011
23
1
3
Battle Ground, WA
Just took delivery of my 23s about a month ago. After a couple backhoe jobs I noticed scraping noises when articulating the arm (same joint in your pic). The zerk fitting was plugged with paint. The dealership didn't notice it. It's been really hard to get the grease to go all the way to the other side but after a couple or tries I did get it greased. Wondered if you notice any strange sounds before things went south?

  • Like
Reactions: 1 user

Mark_BX25D

Member

Equipment
Bx25D
Jul 19, 2020
67
42
18
Virginia
I will let you know what happens. I still think it is a issue of hydraulic power exceeding the design strength.

If it were that, there would be hundreds many thousands of complaints. It would be A Known Issue. Big News.

It's not. It's weird. A one-off. That's not consistent with a design flaw.

I could see it being due to a particular part that passed QC but should not have, but it's not a design flaw. Not a chance.


Any chance somebody besides you played with it?


DHARVE3

New member

Equipment
BX23S
Jul 26, 2020
8
0
1
Townsend, Tn
The hydraulic pressure is adjustable. So if my tractor is not correctly adjusted then that does not make it a widespread problem. Also, there are others out there with the same problem as is evident on the Facebook Kubota BX 80 series page. I have photos uploaded by other Facebook users showing the exact same problem. No, I don’t think it’s widespread but I do think it’s out there on tractors other than mine.

If it were that, there would be hundreds many thousands of complaints. It would be A Known Issue. Big News.

It's not. It's weird. A one-off. That's not consistent with a design flaw.

I could see it being due to a particular part that passed QC but should not have, but it's not a design flaw. Not a chance.


Any chance somebody besides you played with it?


DHARVE3

New member

Equipment
BX23S
Jul 26, 2020
8
0
1
Townsend, Tn
no noises. I greased the whole machine before I started using it. Dealers don’t be a very good job getting a tractor ready for service.

Just took delivery of my 23s about a month ago. After a couple backhoe jobs I noticed scraping noises when articulating the arm (same joint in your pic). The zerk fitting was plugged with paint. The dealership didn't notice it. It's been really hard to get the grease to go all the way to the other side but after a couple or tries I did get it greased. Wondered if you notice any strange sounds before things went south?


lugbolt

Well-known member

Equipment
ZG127S-54
Oct 15, 2015
2,209
35
48
Mid, South, USA
it is indeed adjustable

and therein lies the issues I see with a lot of bx's

people go get a cheap "hydraulic pressure improver kit" and up the pressure beyond what the tractor is supposed to be then wonder why their stuff is broke. Kubota does not approve of the modification. What it is, is simply a way for people to ask more of their bx which is nothing more than a lawn mower with tractor-like features. Need more power? Get a bigger tractor.

but no, I have not seen that failure, yet. Interested in what kubota says.


Mark_BX25D

Member

Equipment
Bx25D
Jul 19, 2020
67
42
18
Virginia
people go get a cheap "hydraulic pressure improver kit" and up the pressure beyond what the tractor is supposed to be then wonder why their stuff is broke.

I'm curious about this. I've never heard of a "hydraulic pressure improver kit", so I searched on that and got nothing. Then I took the quotes off and got hits for line pressure booster kits, but those are for automotive transmissions. Tried a few other searches, came up empty.

Have you seen such kits advertised?

I can certainly see an adjustment being abused. People do the same on diesel engines. Turn that pump up just a bit. Free horsepower!

Only sometimes, it turns out to be very expensive horsepower.


Henro

Member

Equipment
B2910, BX2200
May 24, 2019
293
12
18
North of Pittsburgh PA
(snip) What it is, is simply a way for people to ask more of their bx which is nothing more than a lawn mower with tractor-like features...
Lugbolt, you have a lot of respect here.

But if you think a BX is just another lawn tractor, you must have had too much to drink when you posted that, or it has been a VERY LONG TIME since you owned a lawn mower!

LMAO

  • Like
Reactions: 1 user

Fordtech86

Well-known member
Lifetime Member

Equipment
L3200,la525,LP 5’bushhog,LP 5’disc,LP boxblade,2bottom plow,40 gal sprayer
Aug 7, 2018
1,341
85
48
Pineville,LA
I'm curious about this. I've never heard of a "hydraulic pressure improver kit", so I searched on that and got nothing. Then I took the quotes off and got hits for line pressure booster kits, but those are for automotive transmissions. Tried a few other searches, came up empty.

Have you seen such kits advertised?

I can certainly see an adjustment being abused. People do the same on diesel engines. Turn that pump up just a bit. Free horsepower!

Only sometimes, it turns out to be very expensive horsepower.

Search bx shim kit here and online. Been at least a few threads on here about boosting the hydraulic pressure on the bx.

  • Like
Reactions: 1 user

GreensvilleJay

Well-known member

Equipment
BX23-S
Apr 2, 2019
1,140
34
48
Greensville,Ontario,Canada
I keep coming back here, thinking about the 'bend'..... It would be great if you could shine a LASER onto the side plates and try to see exactly where the bending has occoured. Do both sides and see if the other is straight or also , slightly, bent. Laser is easier to use but a very tight string will do it also.

As for the 'increase the pressure' comments, doing that is like 'overclocking a PC'. yes, you can 'tweak', BUT eventually you'll go past the overall design limit of the 'system'. The shim kits are meant to adjust the pressure to the 'nominal' value set by the factory. I don't know the 'spec' but say the nominal value is 1600-1700 psi. You measure yours at 1610. You can shim to get 1700. That's OK but shimming to 1750 is NOT. Any increase in psi will give better 'performance' but go about the design max and bad things will eventually happen.

  • Like
Reactions: 1 user

DHARVE3

New member

Equipment
BX23S
Jul 26, 2020
8
0
1
Townsend, Tn
The tractor has no modifications white so ever. I change the engine oil and filter and the hydraulic filter at 50 hours and have greased it three times. It has plenty of power for me.

it is indeed adjustable

and therein lies the issues I see with a lot of bx's

people go get a cheap "hydraulic pressure improver kit" and up the pressure beyond what the tractor is supposed to be then wonder why their stuff is broke. Kubota does not approve of the modification. What it is, is simply a way for people to ask more of their bx which is nothing more than a lawn mower with tractor-like features. Need more power? Get a bigger tractor.

but no, I have not seen that failure, yet. Interested in what kubota says.
