BX2200 Electrical wiring diagram

Bill hack

New member

Equipment
Bx2200
Aug 8, 2013
5
0
0
New Bloomfield, Missouri
My 2002 BX2200 is blowing the 20 amp fuse. While mowing the engine stopped running. I restarted and finished mowing. When I pulled into the shed and turned off the ignition the engine continued to run. I found the 20 amp fuse had blown. Upon replacing it the engine stopped. This has happened three times.

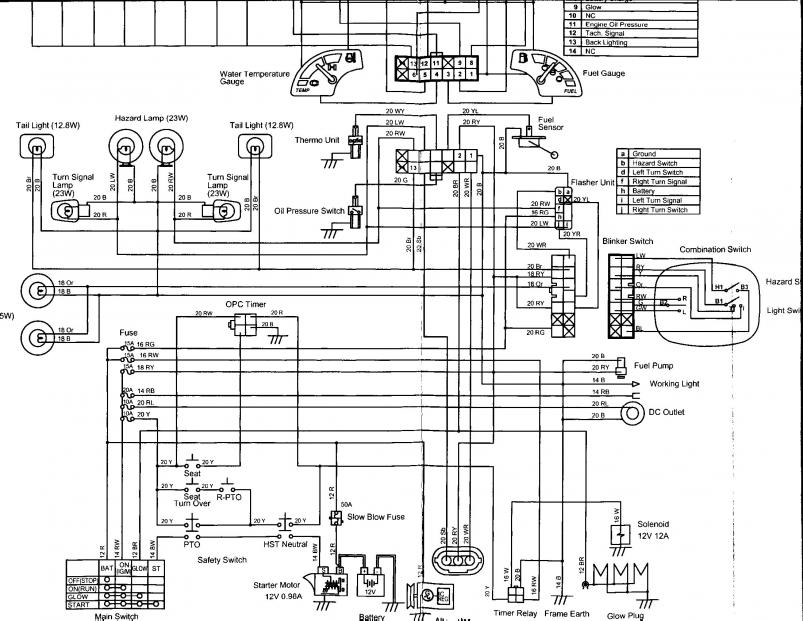

I suspect the stop solenoid is the culprit but it is quiet expensive. I am looking for the wiring circuit diagram to see what other component is in the line with this fuses.
